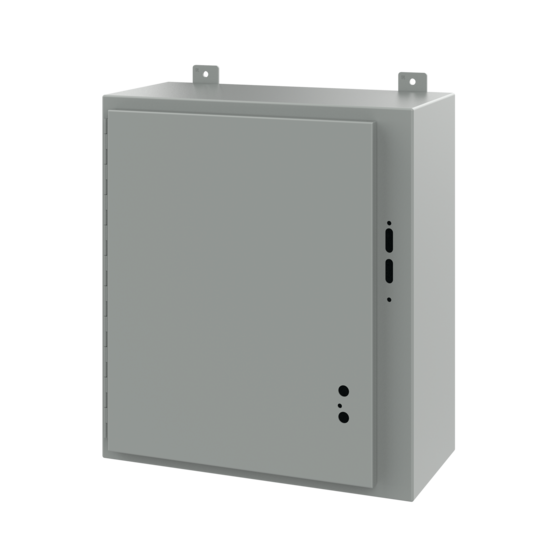

Hoffman A24SA2210LP Disconnect Enclosure 24 inches x 21.38 inches x 10 inches

Product Description

The HOFFMAN A24SA2210LP is a general purpose disconnect enclosure that accepts major brand disconnect switches and circuit breakers. It is available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware. The enclosure is made of 14 gauge steel with continuously welded and ground smooth seams.

• Constructed from 14 gauge steel
• Seams are continuously welded and ground smooth
• Features external welded-on mounting brackets

Product Highlights

This Hoffman disconnect enclosure is designed for arc flash safety, controls and drives, power distribution, and indoor applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A24SA2210LP
• Country of Origin: US

Technical Specifications

• Applications: Arc Flash Safety, Controls and Drives, Power Distribution, Indoor
• IP Rating: 65
• Material: Steel
• Mounting Type: Wall
• Size: 24.00x21.38x10.00 in
• Standard: CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Single Door, Single Lock, Dust-Resistant, Gangable, Flange-Mounted Disconnect Enclosure
• Brand: HOFFMAN
• Sub Brand: Hoffman
• Depth: 10 in.
• Height: 24 in.
• Length: 24 Inch
• Thickness: 1.9 mm
• Width: 22 in.
• Finish: Powder Coated
• NEMA: 12,13
• Material Thickness: 14 Gauge
• Cover Type: Continuous Hinge
• Mounting: External Feet
• Optional Panel: A-24P20
• Model: A24SA2210LP
• MPN: A24SA2210LP
