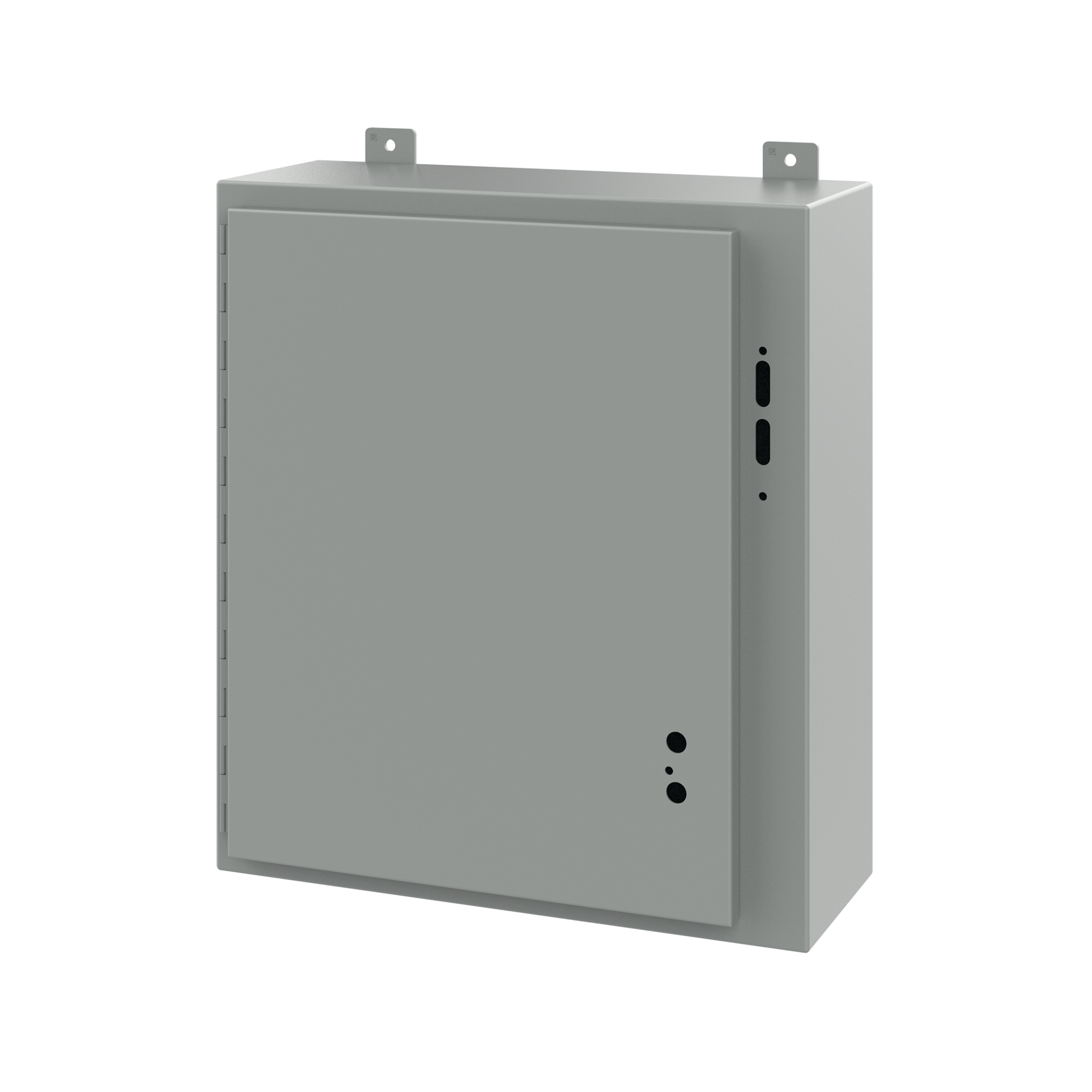

Hoffman A24SA2208LP A25 Preferred Cutout Disconnect Enclosure 24.00x21.38x8.00 in

Product Description

The HOFFMAN A24SA2208LP is a general purpose disconnect enclosure that accepts major brand disconnect switches and circuit breakers. It is available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware. The enclosure is made of 14 gauge steel with continuously welded and ground smooth seams.

• Constructed from 14 gauge steel
• Features continuously welded and ground smooth seams
• Offers external welded-on mounting brackets for easy installation

Product Highlights

This Hoffman disconnect enclosure provides arc flash safety and is suitable for controls, drives, and power distribution applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A24SA2208LP
• Country of Origin: US

Technical Specifications

• IP Rating: 65
• Material: Steel
• Mounting Type: Wall
• Size: 24.00x21.38x8.00 in
• Standard: CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Gangable, Single Door, Single Lock
• Brand: nVent HOFFMAN
• Sub Brand: Hoffman
• Finish: Powder Coated
• Series: A25
• Length: 24.0000 in
• Width: 28.0000 in
• Depth: 8
• NEMA Rating: 12 Indoor, dust-resistant
• Cover: Continuous Hinged/Removable Cover
• Panel: 17 in W x 21 in H
• Mounting: Wall Mounting
• Application: Arc Flash Safety; Controls and Drives; Power Distribution
• Catalog Number: A24SA2208LP
• Country of Origin: US
• EU RoHS Indicator: NEW
• Height: 10.0000 in
• Manufacturer: HOFFMAN ENCLOSURES
