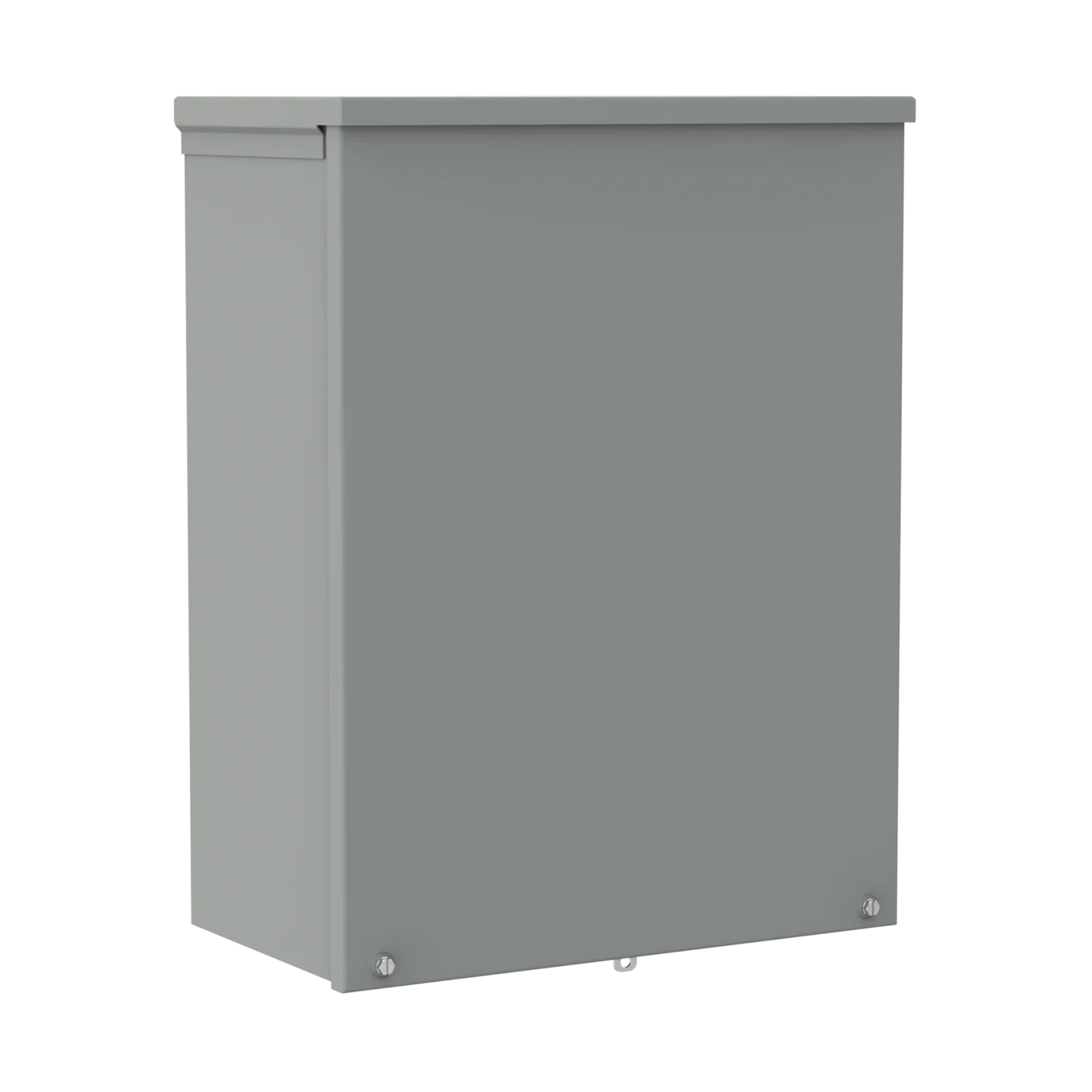

Hoffman A24R186 Screw-Cover Drip-Shield Type 3R With Knockouts, 24x18x6

Product Description

The HOFFMAN A24R186 drip-shield screw-cover is a type 3R enclosure used as a wiring or junction box to protect controls in outdoor applications. It provides protection from rain, sleet, snow, or dripping water. The enclosure is made of mild steel with a galvanized and powder-coated finish.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

This Hoffman steel enclosure is ideal for protecting electrical components in harsh environments. It features knockouts for easy cable entry and a screw cover for secure closure.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A24R186
• Country of Origin: Mexico

Technical Specifications

• Article Number: 38360
• Height: 24in
• Width: 18in
• Depth: 6in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: A-B-C-D-E-F-G-H-I
• Mounting: 1.12in
• Body Style: B
• UPC: 783510383602
• Bulletin Number: A90S3
• UNSPSC: 39121303
• Mounting Type: Wall
• Type: B-Style Body
• Series: A90S3
• Cover Type: Screw
• Application: For outdoor application as a wiring or junction box
• ECCN: EAR99
• Enclosure Composition: Galvanized Steel
• Enclosure knockouts: Includes Knockouts
• Enclosure Environment Rating: Outdoor-Indoor
• Enclosure Lock Type: Padlocking
• Enclosure Interior Color: Gray
• Enclosure Door Type: Solid
• Enclosure Mount Type: Wall Mount
• Enclosure Latch Type: Screw
• Component: Commercial Enclosure
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 3R
• Enclosure Type: Screw-Cover Enclosure
• Manufacturer: Hoffman
