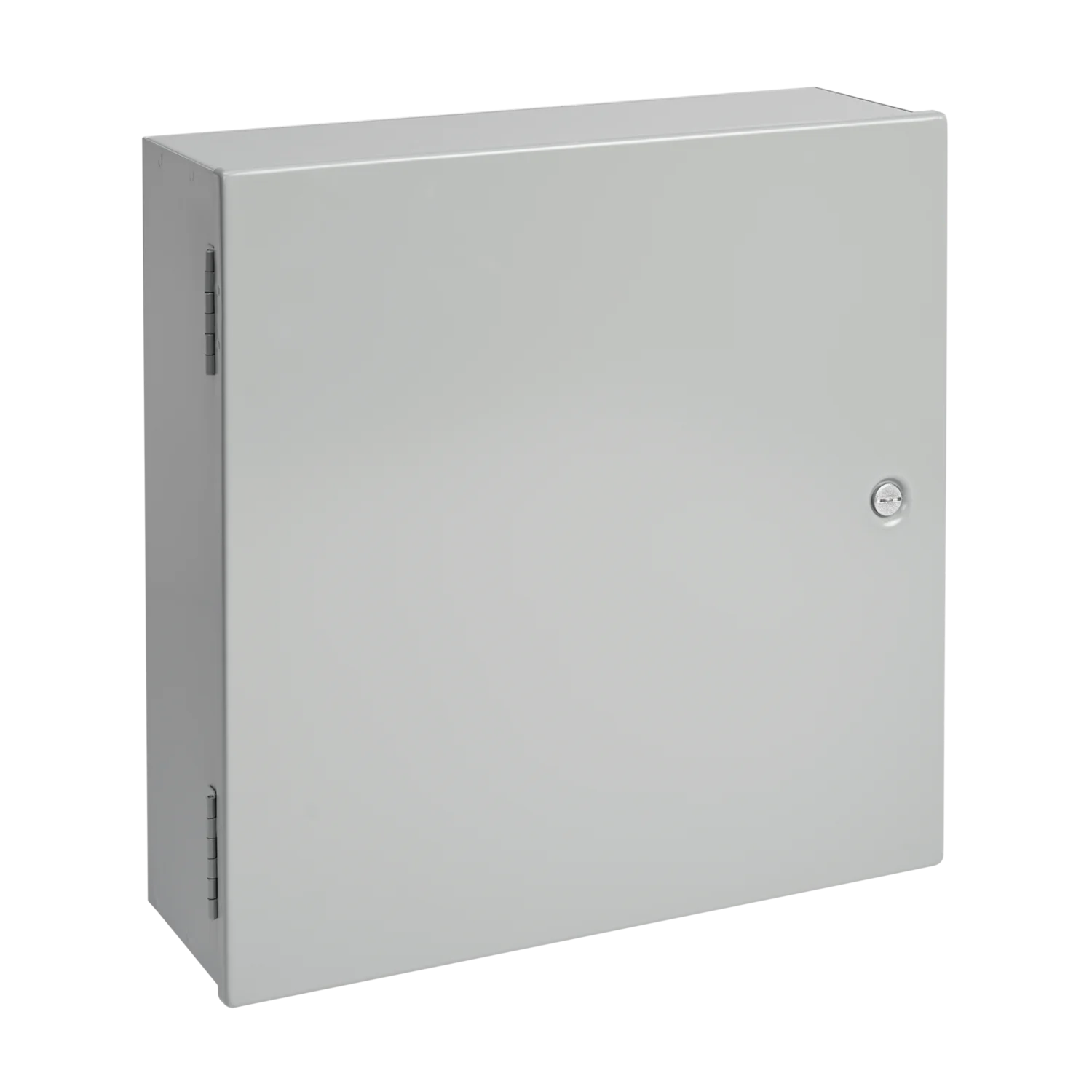

Hoffman A24N20CLP Medium Hinged-Cover Type 1 Enclosure 24.00x20.00x10.62

Product Description

The HOFFMAN A24N20CLP is a medium hinged-cover pull box, Type 1 enclosure with dimensions of 24.00x20.00x10.62. It meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures. It is suitable for power distribution, controls, and drives.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Slotted flush latches; optional latches available

Product Highlights

The A24N20CLP enclosure features mounting holes on the back and a powder-coated finish. Optional panels can be mounted using the collar studs.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A24N20CLP
• Country of Origin: MX - Mexico

Technical Specifications

• IGCC: 4476
• Size: 24.00x20.00x10.62 in
• Type: Wall-Mounted / Pad-Mounted Enclosures
• Color: Gray
• Depth: 10.62 in
• Panel: A24N20MP
• Width: 20 in
• Finish: Powder Coated
• Height: 24 in
• Material: Mild Steel
• IP Rating: IP30
• Color Code: ANSI 61
• Application: Power Distribution; Controls and Drives
• NEMA Rating: 1 Indoor; electrical protection
• Panel Gauge: 14
• Type Number: Type 1
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN
• Perforated Panel: A24N20MPP
• Protection Rating: NEMA Type 1
• Thickness (Metric): 1.9 mm
• Panel Size (Metric): 533 x 470 mm
• Thickness (Imperial): 14 ga
• Panel Size (Imperial): 21.00 x 18.50 in
• UPC: 783510861308
• Mount: Hinged
• ECCN: EAR99
• UNSPSC: 39121324
• Standard: UL 50, 50E Listed, Type 1, File No. E27567, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27567 , NEMA/EEMAC Type 1, CSA, File 42184: Type 1, IEC 60529, IP30
• Series: A1M
• Sub_Brand: Hoffman
• Cover_Type: Butt Hinged
• Country of Origin: MX
• Special Features: Collar studs provided for mounting optional panels Doors have butt hinges Mounting holes on back of enclosure
