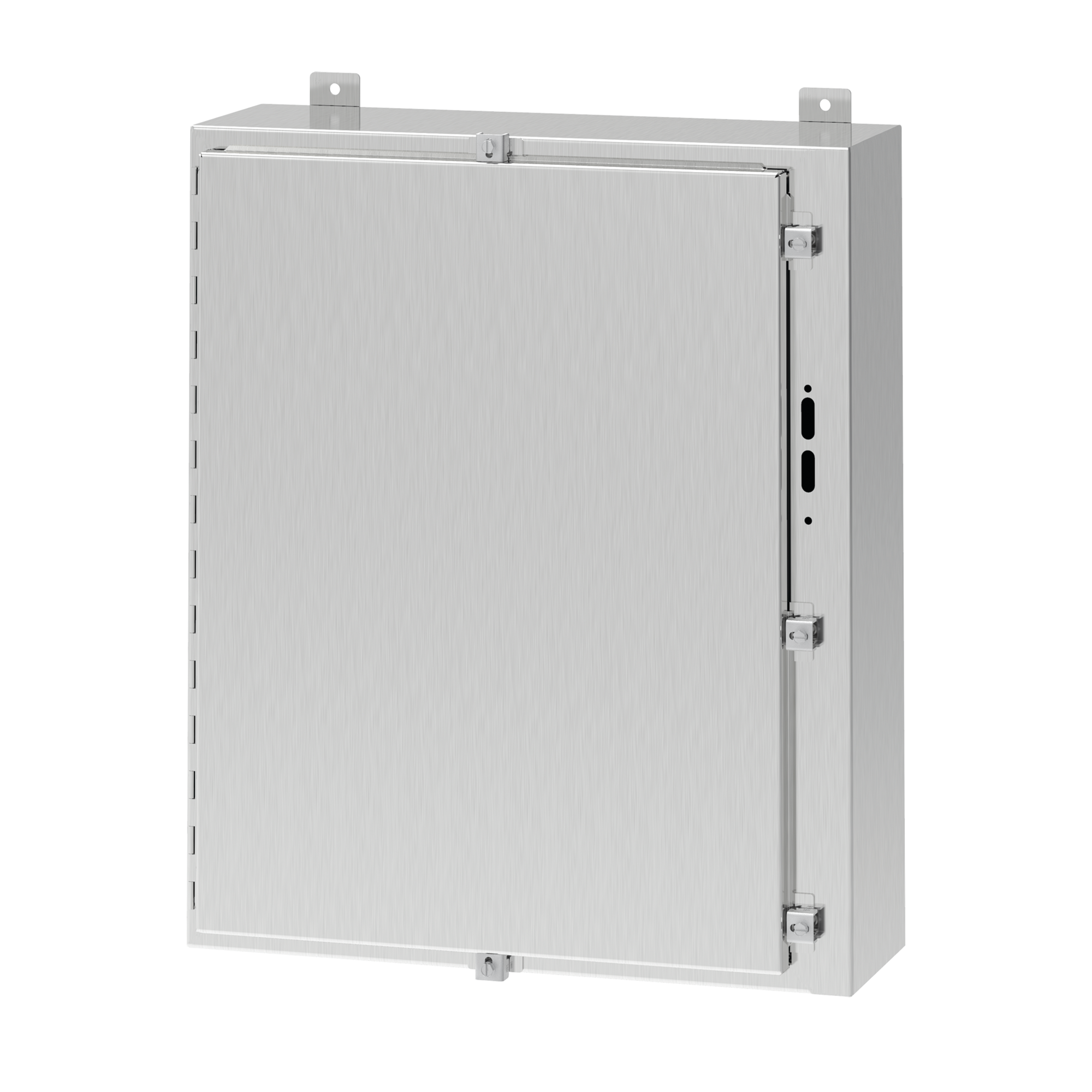

Hoffman A24HS2108SSLP Wallmount Disconnect Enclosure 24 x 21x8

Product Description

The Hoffman A24HS2108SSLP wallmount disconnect enclosure features clamps on three sides to keep liquids and contaminants from entering. This enclosure has a preferred cutout that accepts major brand disconnect switches and circuit breakers. It is constructed from 304 stainless steel with a brushed finish.

• Seams are continuously welded and ground smooth.
• Features external mounting brackets and an external-formed flange around all sides of enclosure opening.
• Stainless steel door clamps are located on three sides of the door.

Product Highlights

The Hoffman A24HS2108SSLP enclosure is ideal for disconnect applications. It provides a secure, contaminant-free environment for electrical components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A24HS2108SSLP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 27510
• Height: 24 in
• Width: 21.38 in
• Depth: 8 in
• Material: 304 Stainless Steel
• Finish: Brushed #4
• Thickness: 14ga
• Clamp Quantity: 5
• Data Pocket Size: 6.00 x 6.00in
• UPC: 783510275105
• Bulletin Number: A19S
• UNSPSC: 39121318
• Approval: UL 508A, CUL, CSA C22.2
• Back Panel: A24P20, A24P20G
• Mounting: Wall
• Enclosure: NEMA 3/3R/4/4X/12/13, IP66
• Material Specification: Type 304
• Type: 1-Door, Flange Mount Circuit Breaker/Disconnect Switch
• Cover Type: Continuous Hinge, Hinge Pin, (5) Clamp, Bracket, Seamless Foam-In-Place Gasketed
• ECCN: EAR99
• IP Rating: 66
• Size: 24.00x21.38x8.00 in
• Standard: 12,13,3R,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3,Type 3R,UL 508A Listed
• Application: Arc Flash Safety; Controls and Drives; Corrosive Environments
• Catalog Number: A24HS2108SSLP
• Color: Unpainted
• Country of Origin: US
• NEMA Rating: 4X Watertight, corrosion-resistant
• Material Thickness: 14 Gauge
• Cover Mounting: Hinge, Continuous
• Cover Latching: Clamps
• Optional Panel: A24P20
