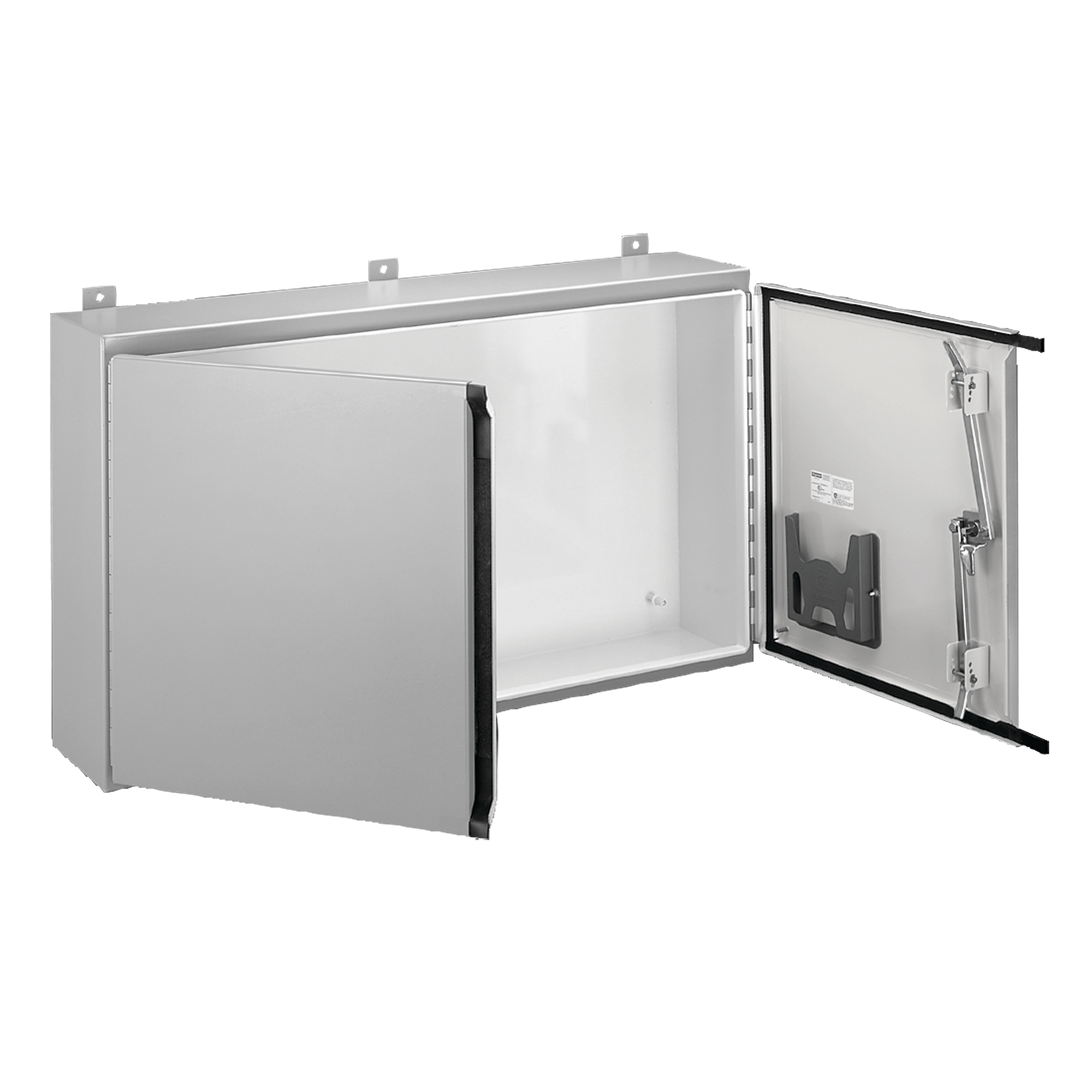

Hoffman A244208WFLP Continuous Hinge 2-Door with Handle Type 12, 24.00x42.00x8.00

Product Description

The HOFFMAN A244208WFLP is ideal for larger wall-mount applications requiring ease of installation and access to full-width internal panel. Its overlapping door design allows easy access in areas with minimal aisle space. Constructed of mild steel with a powder-coated finish, the enclosure features continuously welded and ground smooth seams.

• Seams continuously welded and ground smooth
• External welded-on mounting brackets for easy installation
• External formed body flange channels away liquids

Product Highlights

This Hoffman enclosure features a continuous hinge, two-door design with a key-locking handle and 3-point latch, suitable for NEMA 12 and IP55 environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A244208WFLP
• Country of Origin: United States

Technical Specifications

• Article Number: 27120
• Height: 24.000" (609.60mm)
• Width: 1067 mm
• Depth: 203 mm
• Material: Mild Steel
• Finish: Powder Coated
• Exterior Color: Gray
• Exterior Color Code: ANSI 61
• Interior Color: White
• Thickness: 14ga
• Stiffener Body: 0
• Weight: 82lb
• UPC: 783510271206
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A12
• Applications: Controls and Drives, Indoor
• Cover Type: Solid, Two Door
• Mounting Type: Wall
• Size: 24.00x42.00x8.00 in
• Standard: CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
• Type: Double Door, Single Lock, Dust-Resistant, Gangable
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510271206
• Product UPC: 78351027120
• Length: 43-1/2 Inch
• DISK UNSPSC: 39121324
• Material Specification: 14 Gauge
• Back Panel: A42P24, A48P48G
• Enclosure: NEMA 12, IP55
• Mounting: External Bracket, Wall
• Approval: UL 508A, CUL, CSA C22.2
• Lead-Free: Lead-Free
• RoHS Compliant: RoHS Compliant
• Applicable Standard: IEC 60529
• UNSPSC: 39121324
• Material Thickness: 12 Gauge
• Optional Panel: A42P24
• NEMA: 12
• Cover Mounting: Hinge, Continuous
• Cover Latching: Latch, Key Lock Handle
• Area (L x W): 336.0in² (2168cm²)
• Mfr: Hoffman Enclosures, Inc.
• Design: Hinged Door
• Packaging: Bulk
• Part Status: Active
• Container Type: Enclosure
• Size / Dimension: 42.000" L x 8.000" W (1066.80mm x 203.20mm)
• Ratings: IP55, NEMA 12, UL-508A
• Material Flammability Rating: UL 508A
• Country of Origin: United States - Subject to change
