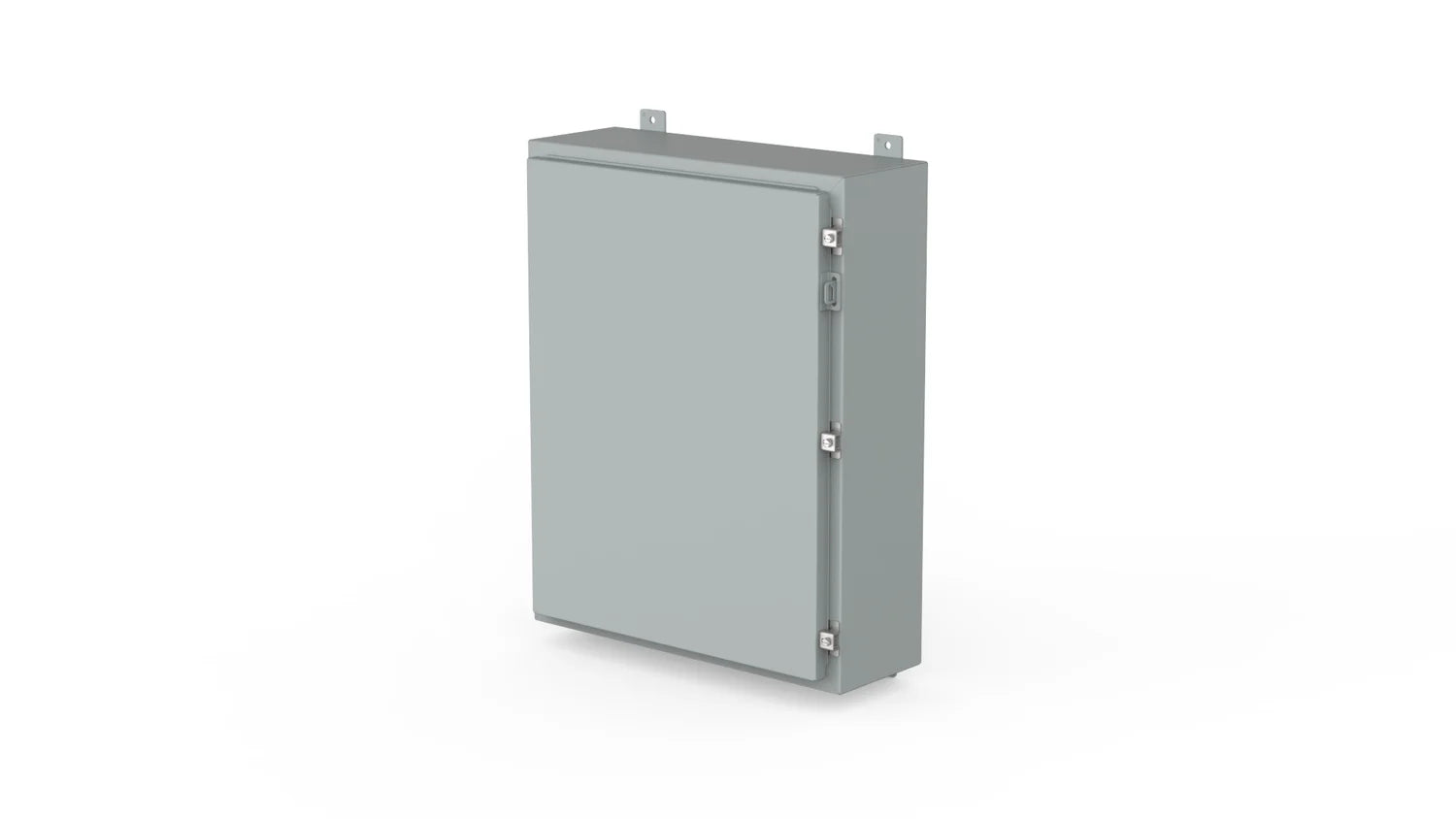

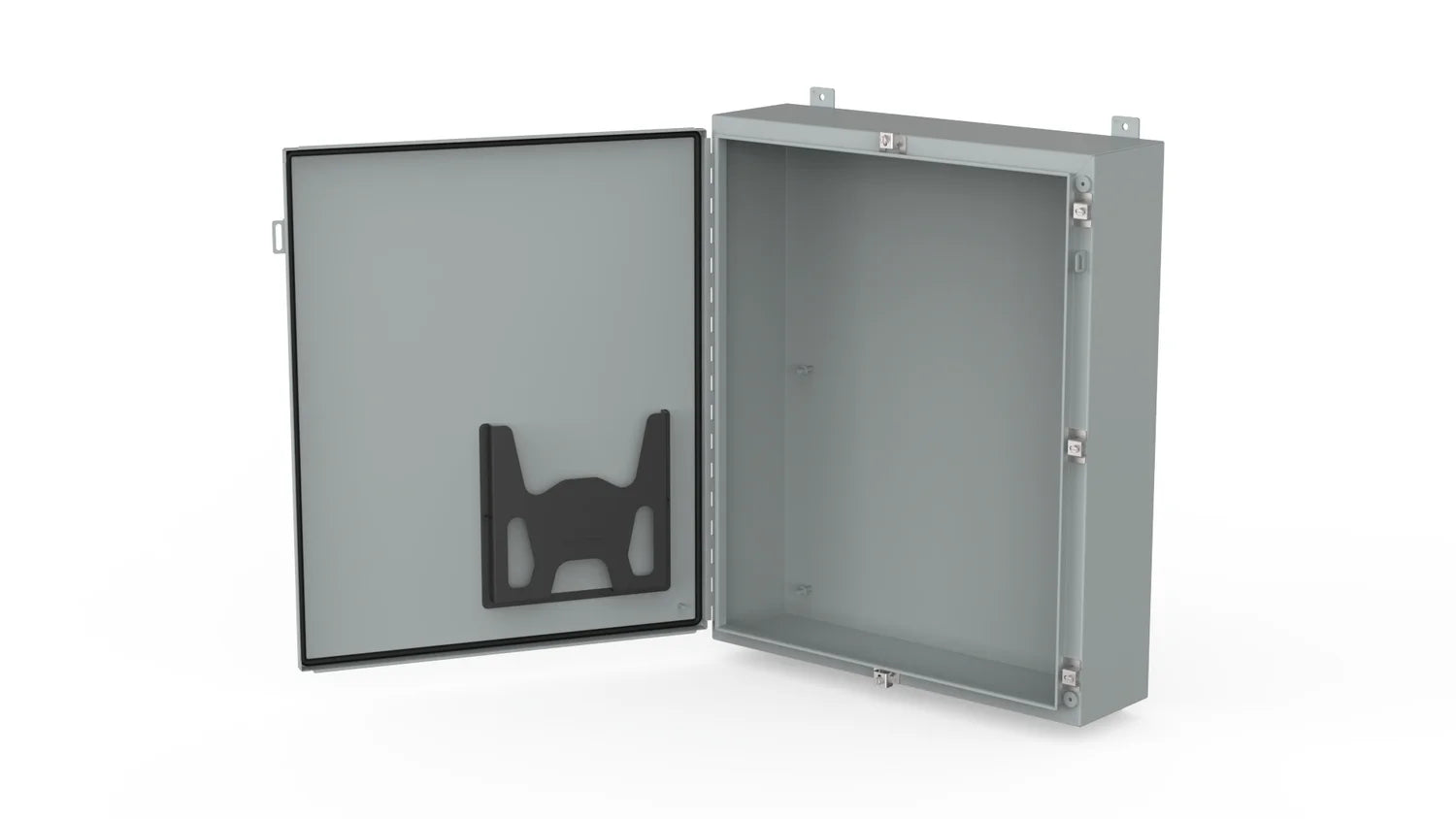

Hoffman A242416LP Continuous Hinge Enclosure with Clamps LP Type 4, 24x24x16

Product Description

The HOFFMAN A242416LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The door clamp count and position has been re-defined to achieve optimal compression of the seamless, foam-in-place gasket. Finished inside and out with polyester powder paint for enhanced corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Stainless steel screw-down door clamps

Product Highlights

Continuous hinge enclosure with clamps, suitable for indoor and outdoor use with enhanced corrosion protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A242416LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 28580
• Height: 24 in
• Width: 24 in
• Depth: 16 in
• Color: White Inside, ANSI 61 Gray Outside
• Color Code: ANSI 61
• Material: Steel
• Finish: Powder Coated
• Thickness: 14 Gauge
• Clamp Quantity: 3
• Data Pocket: Small
• UPC: 783510285807
• Bulletin Number: A12
• Body Gauge: 14
• Cover Type: Solid
• Gauge: 14
• Mounting Type: Wall
• Standard: 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12 And 13,Type 12,UL 508A Listed
• Type: Wall Mount Enclosure
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510285807
• GTiN: 00783510285807
• ECCN: EAR99
• UNSPSC: 39121324
• NEMA Rating: 12, 13
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• NEMA: 12
• Material Thickness: 14 Gauge
• Cover Latching: Screw Clamp, Padlock Hasp
• Mounting: External Feet
• Optional Panel: A24P24
• Cover Mounting: Hinge, Continuous
