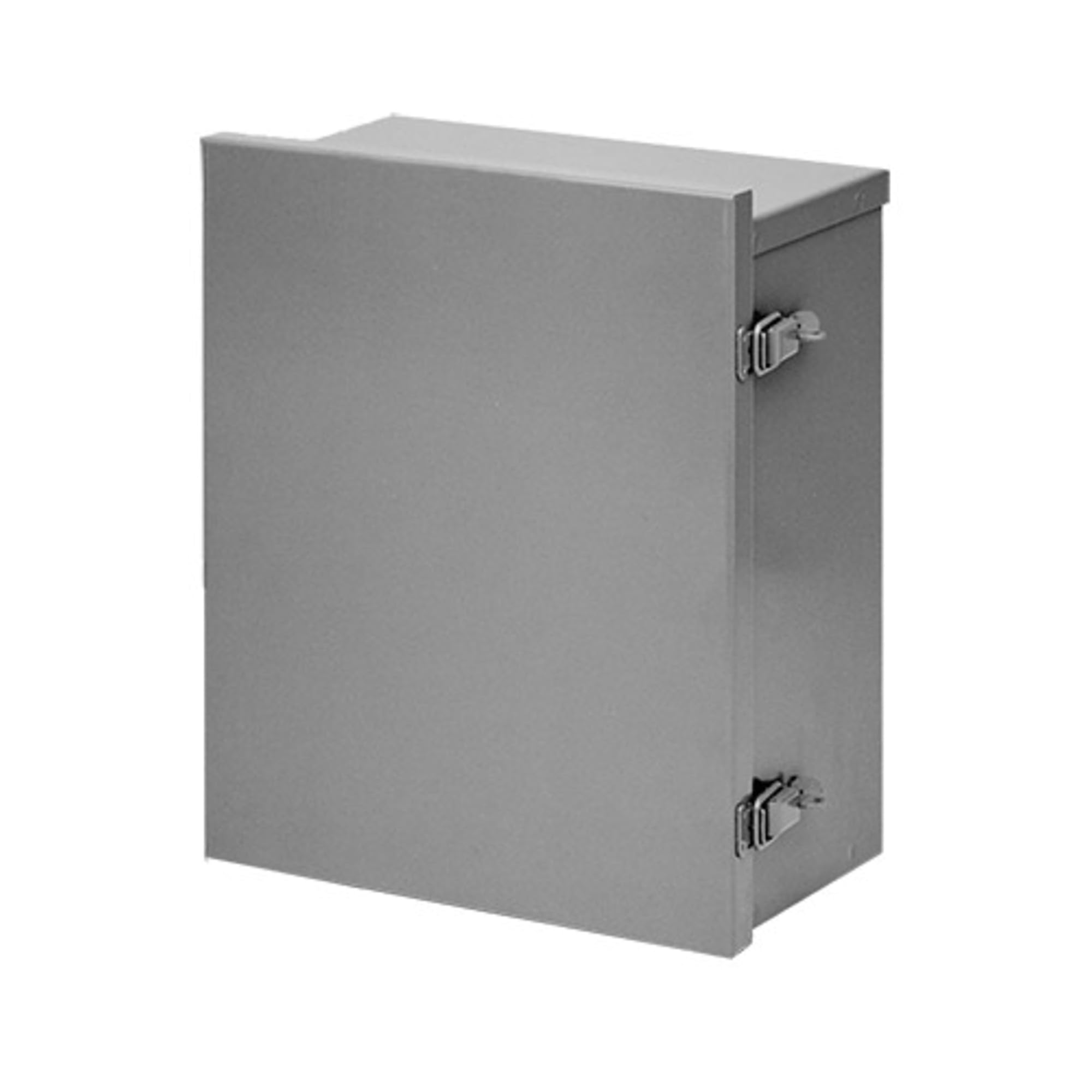

Hoffman A20R208HCLO nema 3R enclosure/lift-off hinge 20.00 inches x 20.00 inches x 8.00 inches

Product Description

The Hoffman A20R208HCLO is a NEMA 3R enclosure with a lift-off hinged cover, designed to protect components in environments exposed to rain, sleet, snow, or dripping water. Constructed from 16 or 14 gauge galvanized steel with a painted finish, this enclosure features a removable cover for easy mounting and access. The cover is secured with a draw pull catch and lift-off hinge with pin.

• 16 or 14 gauge Galvanized steel
• 16 gauge cover fastened securely with draw pull catch
• RoHS Compliant

Product Highlights

NEMA 3R enclosure with lift-off hinged cover made of galvanized steel, ideal for protecting components from weather elements.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A20R208HCLO

Technical Specifications

• Application: Featuring a removable cover for easy mounting and access, these enclosures protect components in applications subject to rain, sleet, snow or dripping water
• Material: Steel
• Color: ANSI 61 Gray
• Finish: Galvanized, Polyester Powder Coated
• UNSPSC: 39121324
• Approval: UL 50/50E, CUL, CSA C22.2
• Nema Rating: NEMA 3R, IP32
• Material Specification: 14 Gauge
• Depth: 8 Inch
• Height: 20 Inch
• Cover Type: Lift-Off Hinge with Pin, Padlockable Draw Pull Catch
