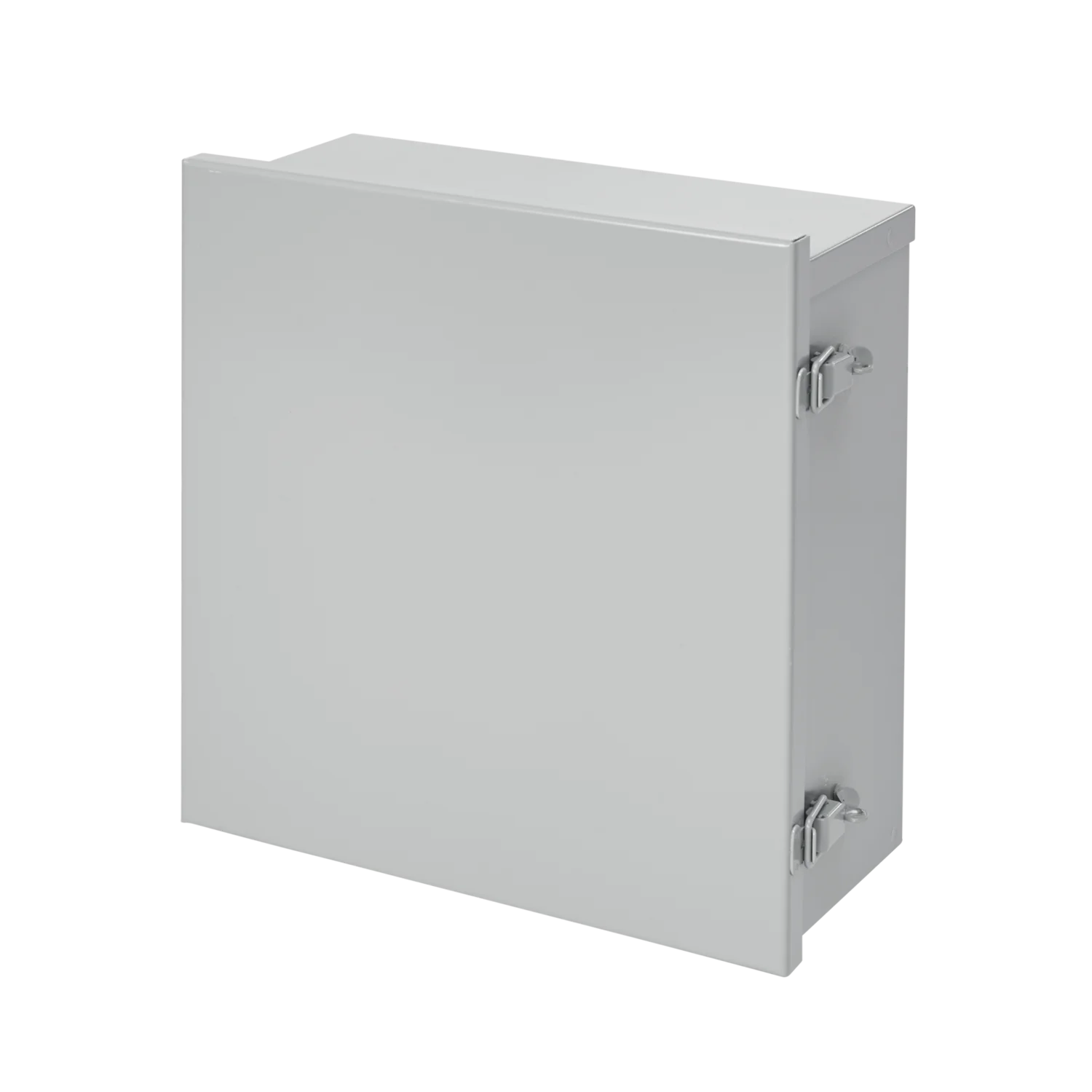

Hoffman A20R166HCLO Drip-Shield Hinged Lift-Off Cover Type 3R, 20.00x16.00x6.00

Product Description

The HOFFMAN A20R166HCLO Drip-Shield Hinged Lift-Off Cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor and other applications subject to rain, sleet, snow or dripping water. The enclosure has a ANSI 61 gray polyester-powder coating inside and out over galvanized steel.

• Drip-shield top and seam-free sides, front and back
• Galvanized steel lift-off hinges with stainless steel pins
• Provisions for padlocking on each draw pull catch

Product Highlights

The A20R166HCLO enclosure is ideal for building automation systems, BAS, and HVAC applications. It has embossed mounting holes on the back and gasketing along the top of the door.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A20R166HCLO
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 38930
• Height: 20 in
• Width: 16 in
• Depth: 6 in
• Material: Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 1.52 mm
• Door Thickness: 16ga
• UPC: 783510389307
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A3LO
• Enclosure Rating: NEMA 3R
• Mount: Hinged
• ECCN: EAR99
• UNSPSC: 39121324
• Application: Industrial
• Type: Lift-Off Cover Enclosure
• Color Family: Gray
• Cover Type: Hinged/Lift-Off
• Mounting Type: Wall
• Series: A3LO
• Panel Size: 17 in H x 13 in W
• Size: 13 in W x 17 in H
• Type / Style: Hinge-Cover Lift-Off, Type 3R
• Applications: Controls and Drives; Power Distribution
• Body Gauge: 16
• Color Coding: ANSI 61
• Enclosure: 3R
• IP Rating: 32
• Standard: CSA, File 42184: Type 3R,CUL Listed Per CSA C22.2 No 94; Type 3R File No. E27567,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27567
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351038930
• Length: 25 Inch
• Country of Origin: Mexico
