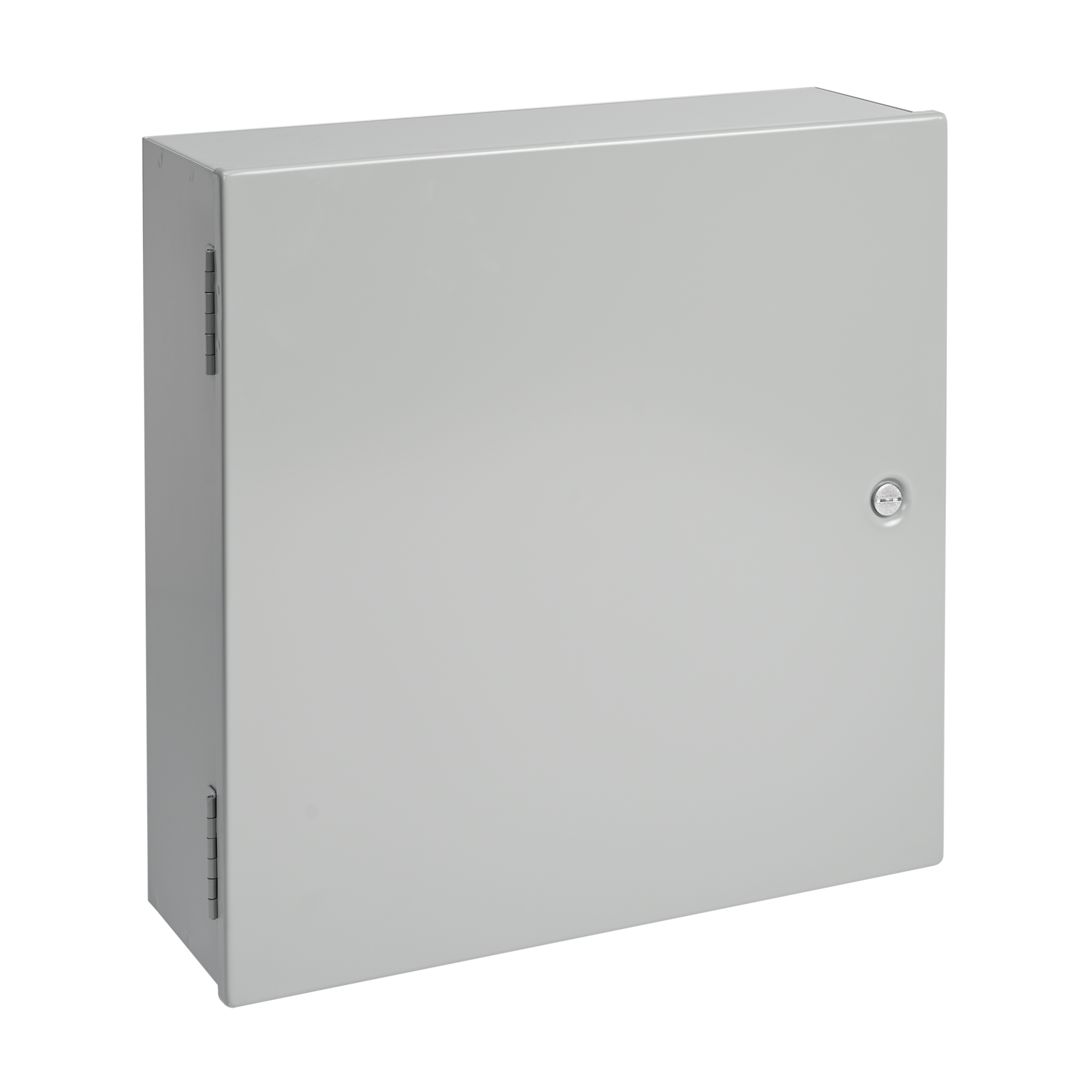

Hoffman A20N20BLP Medium Hinged-Cover Type 1, 20.00x20.00x8.62

Product Description

The Hoffman A20N20BLP medium hinged-cover pull box, Type 1, features a size range of 16 x 12 -in. to 36 x 30-in. It has mounting provisions for an optional panel and meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Slotted flush latches; optional latches available

Product Highlights

The Hoffman A20N20BLP enclosure is ideal for HVAC applications and building automation systems, BAS. It features removable doors with butt hinges and mounting holes on the back.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A20N20BLP

Technical Specifications

• Article Number: 86060
• Height: 20 in
• Width: 20 in
• Depth: 8.62 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 1.9 mm
• UPC: 783510860608
• Packing Quantity: 1
• Bulletin Number: A1M
• Enclosure Rating: NEMA 1
• Mount: Hinged
• Mounting: Surface
• IP/NEMA Rating: NEMA 1, IP30
• Applications: For Applications that Do Not Require Oil or Dust-Tight
• Gauge: 14/12
• IP Rating: 30
• Mounting Type: Floor
• Size: 20.00x20.00x8.62 in
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
• Type: Medium, Single Lock, Single Door
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510860608
• Length: 20.7 Inch
• DISK UNSPSC: 39121324
