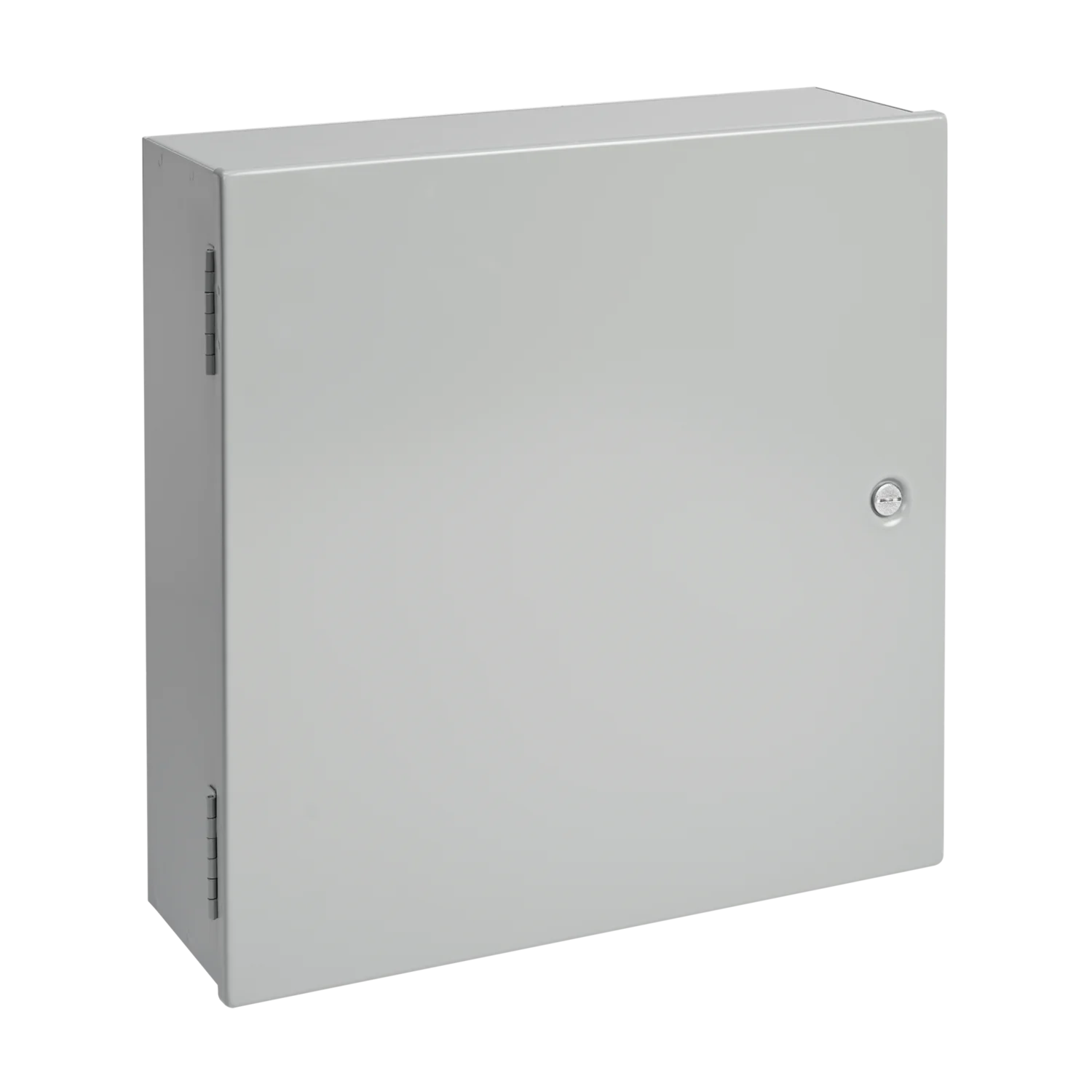

Hoffman A20N20ALP Medium Hinged-Cover Type 1, 20.00x20.00x6.62

Product Description

The HOFFMAN A20N20ALP medium hinged-cover pull box, Type 1, with a size of 20.00x20.00x6.62, meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures. These enclosures are popular in HVAC applications and building automation systems. Each enclosure has a removable door with butt hinge.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Slotted flush latches; optional latches available

Product Highlights

The HOFFMAN A20N20ALP enclosure is designed for control and instrumentation applications. It features a hinged cover and mounting holes on the back for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A20N20ALP
• Country of Origin: Mexico

Technical Specifications

• Article Number: 85970
• Height: 20 in
• Width: 20 in
• Depth: 6.62 in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510859701
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A1M
• Type: Enclosure Only
• Mount: Hinged
• NEMA Rating: 1
• Latch: Slotted Flush
• Brand: Hoffman
• Style: Compact
• Product Dimensions: 6.62"D x 20"W x 20"H
• Product Height: 20 in
• IP/NEMA Rating: 1, IP30
• Installation Type: Screw-In
• Specification Met: Nema
• Mounting: Surface
• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• External Height - Metric: 508mm
• External Width - Metric: 508mm
• External Depth - Metric: 168mm
• IP Rating: IP30
• Body Color: Gray
• External Height - Imperial: 20"
• External Width - Imperial: 20"
• External Depth - Imperial: 6.62"
