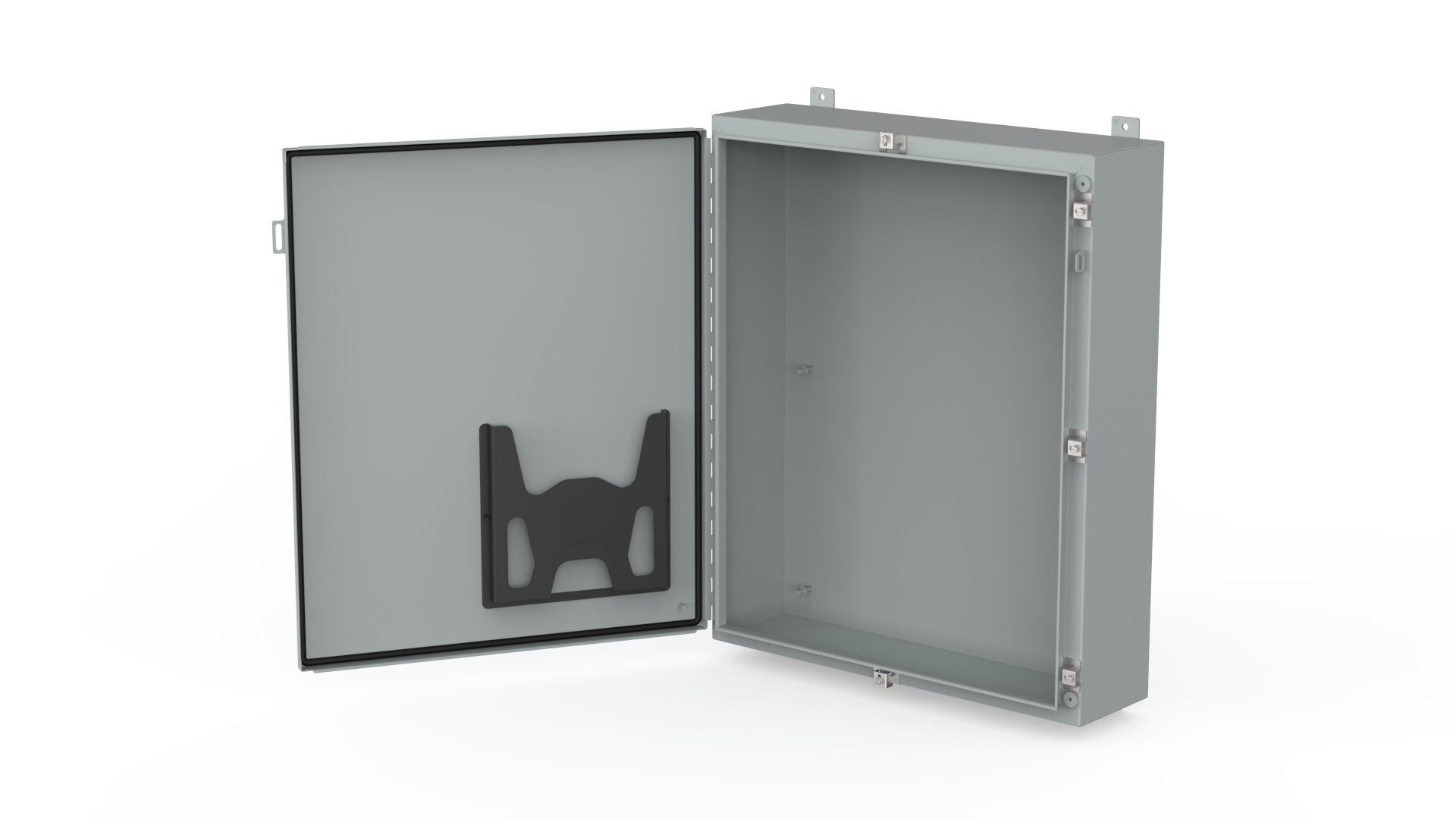

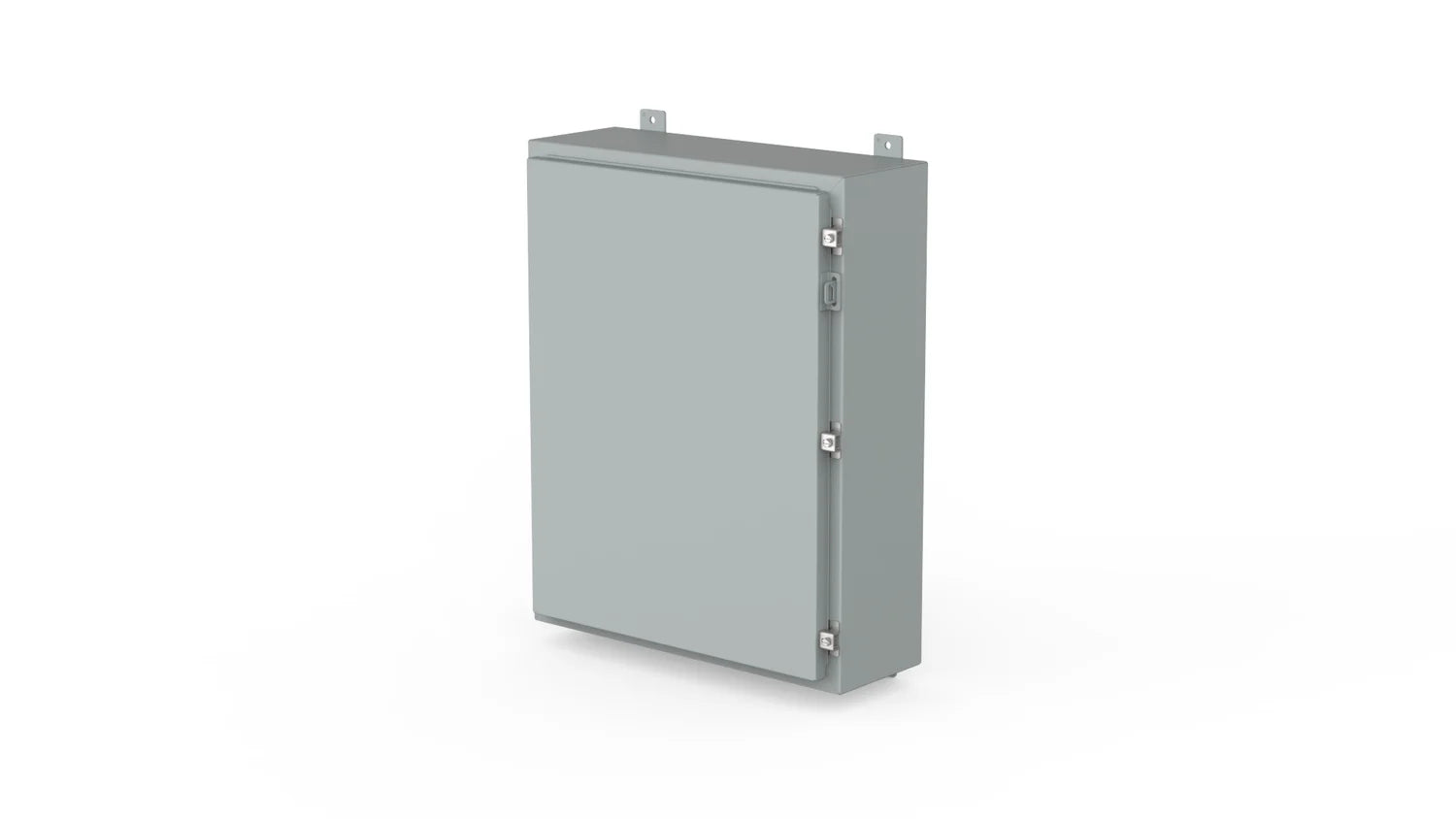

Hoffman A202406LP Continuous Hinge Enclosure with Clamps LP Type 4, 20x24x6

Product Description

The HOFFMAN A202406LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The door clamp count and position are designed for optimal compression of the seamless, foam-in-place gasket. Finished inside and out with a polyester powder paint for enhanced corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

This enclosure provides a secure and durable solution for various electrical and electronic applications, with features that ensure protection and ease of installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A202406LP
• Country of Origin: United States

Technical Specifications

• Article Number: 28050
• Height: 20in
• Width: 24in
• Depth: 6in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 16ga
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510280505
• Bulletin Number: A12
• Applications: Controls and Drives, Indoor
• Body Gauge: 16
• Cover Type: Continuous Hinge Clamp
• Gauge: 16 ga Body
• Mounting Type: Wall
• Size: 20.00x24.00x6.00 in
• Standard: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File No. 42186: Type 12 , IEC 60529, IP65
• Type: Single Door, Double Lock, Dust-Resistant, Gangable
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351028050
• NEMA Rating: 12, 13
• UNSPSC: 39121324
• Approximate Depth: 6 in
• Approximate Height: 20 in
• Approximate Width: 24 in
• Manufacturer Part Number: A202406LP
• Series: A12 Series
• Junction Box: Junction Box
• Part Number: A202406LP
