Hoffman A202010LP Continuous Hinge Enclosure with Clamps LP Type 4, 20x20x10

Product Description

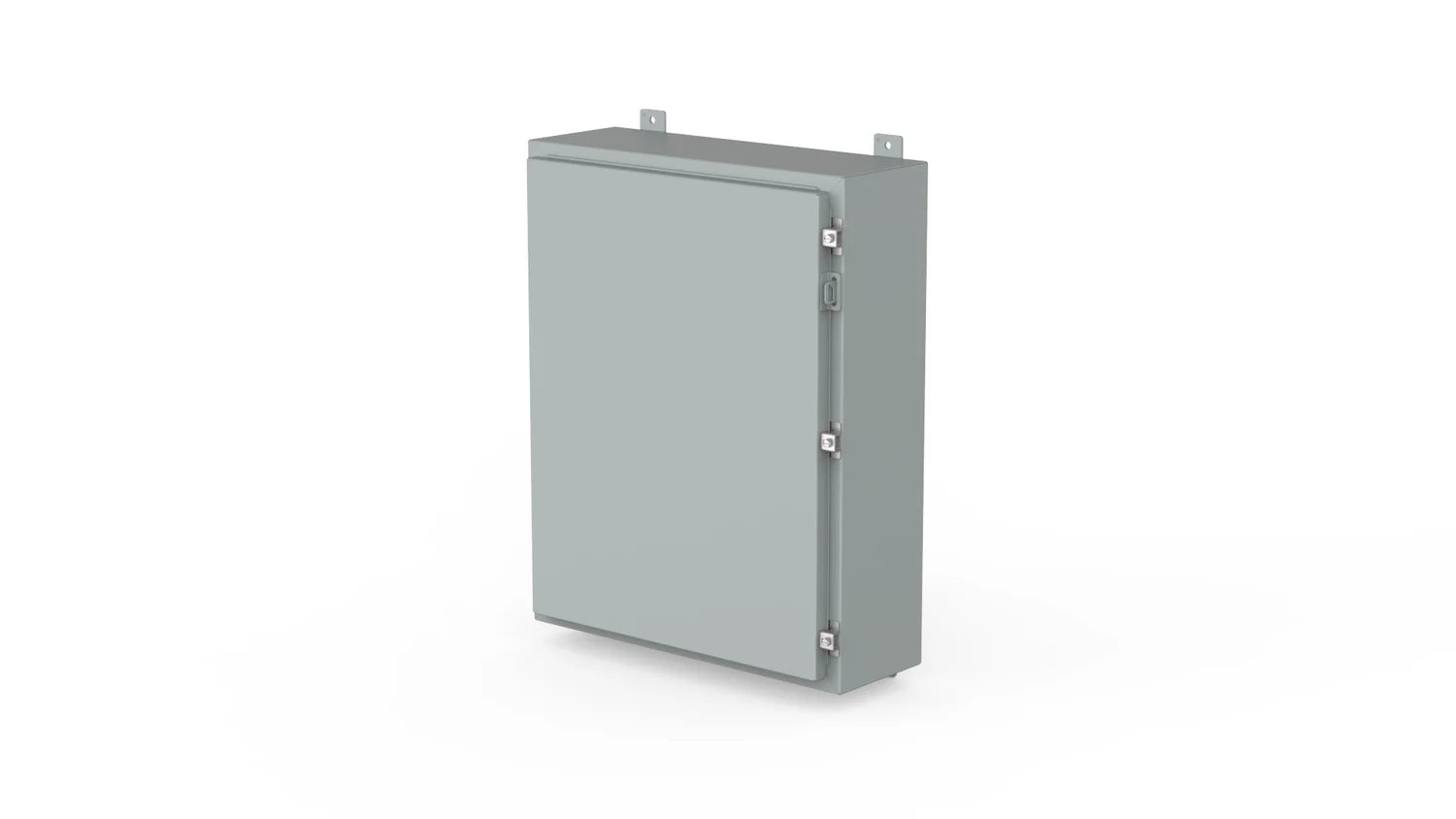

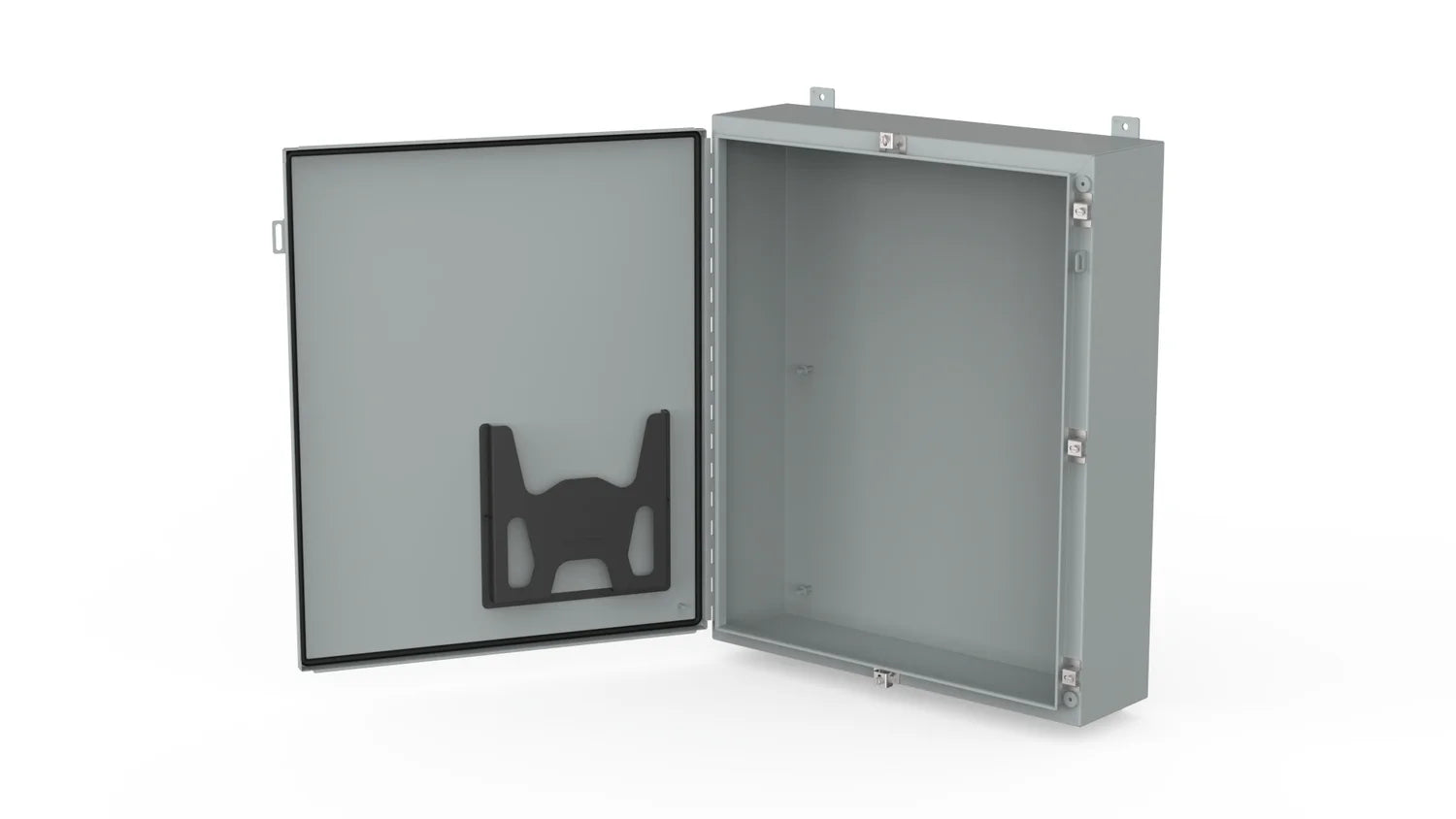

The HOFFMAN A202010LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. Ideal for wall mounting.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

This enclosure features stainless steel hardware and a polyester powder paint finish for enhanced corrosion protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A202010LP
• Country of Origin: United States

Technical Specifications

• Article Number: 28370
• Height: 20 in
• Width: 20 in
• Depth: 10 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510283704
• EAN: 8713574273139
• Bulletin Number: A12
• NEMA: 12
• Material Thickness: 14 Gauge
• Cover Latching: Screw Clamp, Padlock Hasp
• Mounting: External Feet
• Optional Panel: A20P20
• Type: Wall Mount Enclosure
• Cover Mounting: Hinge, Continuous
• Cover Type: Solid
• Applications: For Applications Requiring a Bright White Interior to Increase Control Visibility
• Gauge: 14 and 16
• Size: 20.00x20.00x10.00 in
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510283704
• Product UPC: 78351028370
• Depth (mm): 254 mm
• Height (mm): 508 mm
• Length: 25 Inch
• Thickness (mm): 1.9 mm
• Width (mm): 508 mm
• DISK UNSPSC: 39121324
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 17 x 17 in
• Series: A12
• Medium Single Door: Medium Single Door
• Standard & Approvals: UL 508A, File No. E61997, cUL Listed per CSA C22.2 No. 94, File No. E61997, CSA File No. 42186, IEC 60529, RoHS Complaint
• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• External Height - Metric: 508mm
• External Width - Metric: 508mm
• External Depth - Metric: 254mm
• IP Rating: IP65
• Body Color: Grey, White
• External Height - Imperial: 20"
• External Width - Imperial: 20"
• External Depth - Imperial: 10"
• Lock: Hasp and Staple With Padlock
