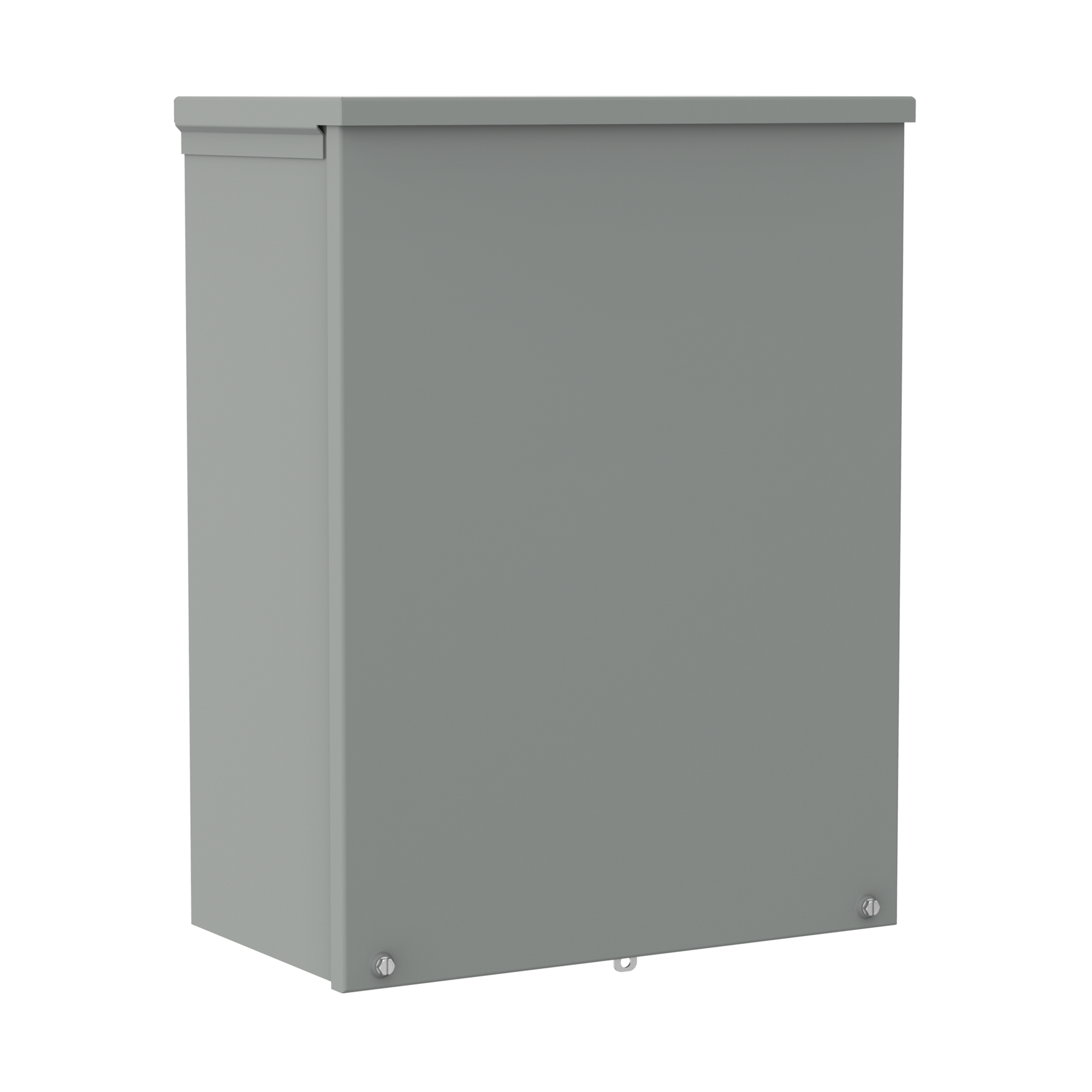

Hoffman A18R184 Screw-Cover Drip-Shield Type 3R With Knockouts, 18x18x4, Steel

Product Description

The HOFFMAN A18R184 Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow, or dripping water. Features a drip shield top and seam-free sides, front, and back.

• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure
• Knockouts in bottom of 16 and 14 gauge enclosures
• Provision for padlocking

Product Highlights

This enclosure is ideal for protecting components in various outdoor environments. Constructed of mild steel with galvanized and powder-coated finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A18R184
• Country of Origin: Mexico

Technical Specifications

• Article Number: 37970
• Height: 18 in
• Width: 18 in
• Depth: 4 in
• Material: Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: A-B-C-D-E-F-G-H-I
• Mounting: 1.12in
• Body Style: B
• UPC: 783510379704
• Bulletin Number: A90S3
• ECCN: EAR99
• NEMA Rating: 3R
• Cover Mounting: Screw Cover
• Mounting Type: Surface
• IP/NEMA Rating: NEMA 3R, NEMA 3
• Number of Knockouts: 9
• Knockouts: Yes
• Enclosure: 3R
• IP Rating: 32
• Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
• Type: Pull and Junction Boxes
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510379704
• Product UPC: 78351037970
• DISK UNSPSC: 39121303
