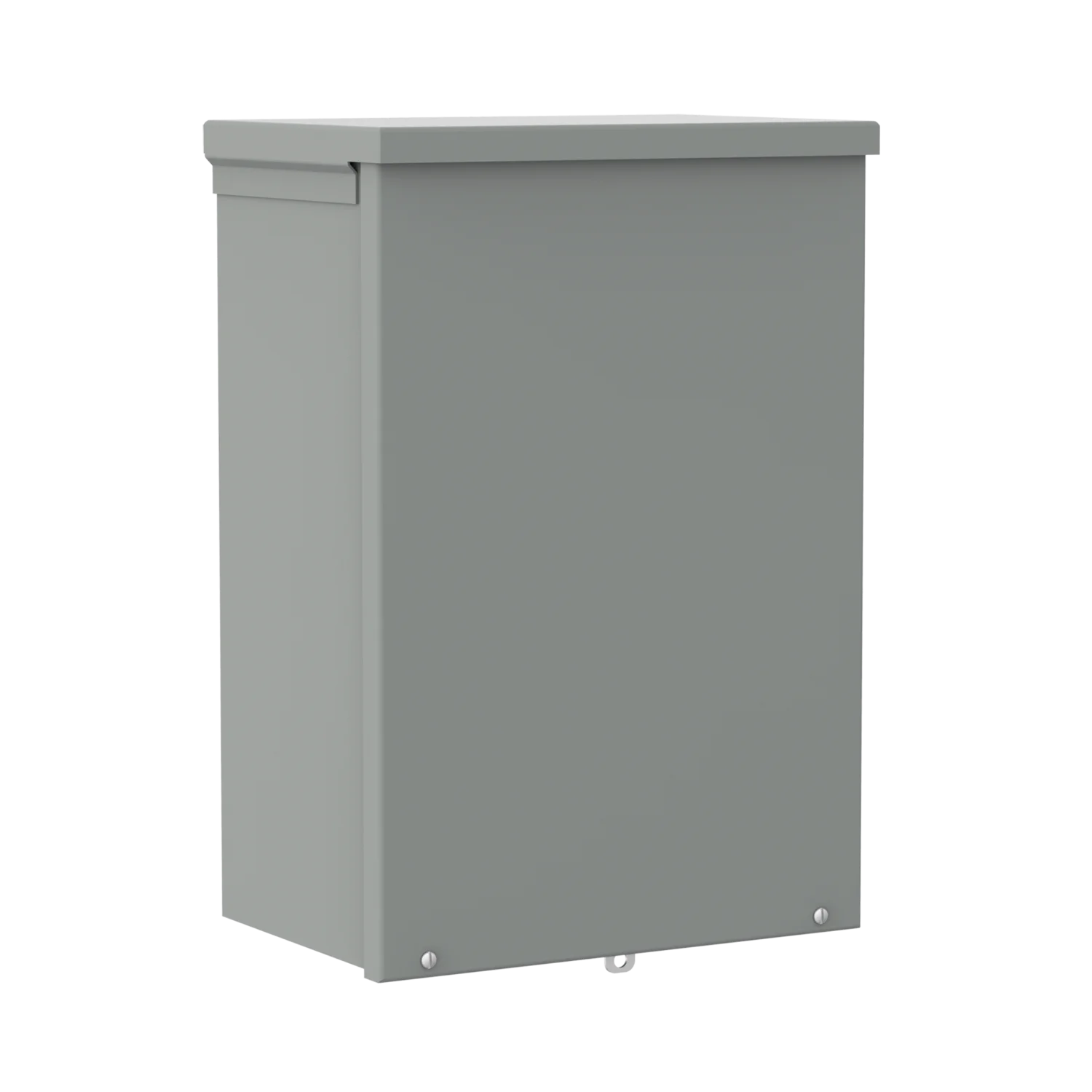

Hoffman A16R126NK Screw-Cover Drip-Shield Type 3R No Knockouts, 16x12x6

Product Description

The HOFFMAN A16R126NK Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water. Enclosure can be used with or without knockouts in outdoor applications.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

The HOFFMAN A16R126NK enclosure is ideal for protecting controls in outdoor environments, safeguarding against rain, sleet, and snow.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16R126NK
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 13503
• Height: 16in
• Width: 12in
• Depth: 6in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: No
• Mounting: 1.06in
• Body Style: A
• UPC: 783510135034
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A90S3
• ECCN: EAR99
• NEMA Rating: 3R
• Cover Mounting: Screw Cover
• IP/NEMA Rating: NEMA 3R, NEMA 3
