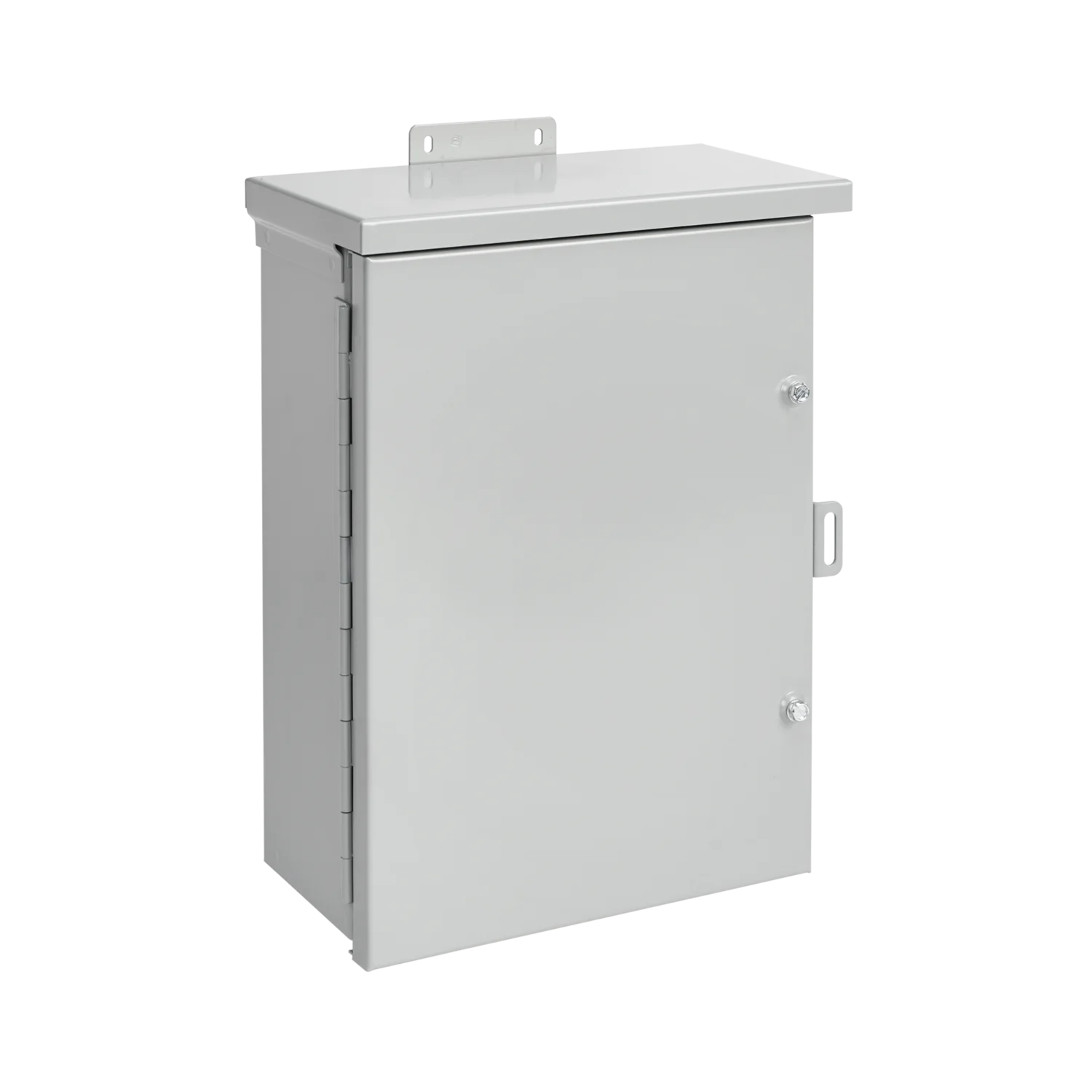

Hoffman A16R126HCR Nema 3R Hng Cvr Bx (16.00x12.00x6.00 in)

Product Description

The HOFFMAN A16R126HCR Nema 3R Hng Cvr Bx is a medium drip-shield hinged-cover, Type 3R, that protects wiring and other electrical components in outdoor applications. It requires protection from rain, sleet, snow, or dripping water. It offers the flexibility of securing the enclosure with an optional padlock and collar studs for optional panel mounting.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• 16-gauge plated steel continuous hinge has stainless steel pin
• Cover fastened securely with captive plated steel screws

Product Highlights

The enclosure is suitable for power distribution, controls, and drives, with a galvanized finish and ANSI 61 gray color code.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16R126HCR
• Country of Origin: MX - Mexico

Technical Specifications

• IGCC: 4476
• Type: Wall-Mounted / Pad-Mounted Enclosures
• Color: Gray
• Depth: 6 in
• Panel: A16P12
• Width: 12 in
• Finish: Galvanized; Powder Coated
• Height: 16 in
• Material: Mild Steel
• IP Rating: IP32
• Color Code: ANSI 61
• Application: Power Distribution; Controls and Drives
• NEMA Rating: 3R Weather-resistant; except dust
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN
• Perforated Panel: A16P12PP
• WES Product code: 2650126145
• Protection Rating: NEMA Type 3R
• Modification Services: Yes
• Body Thickness (Metric): 1.52 mm
• Door Thickness (Metric): 1.52 mm
• Overall Length (Metric): 457 mm
• Body Thickness (Imperial): 16 ga
• Door Thickness (Imperial): 16 ga
• Article Number: 38670
• UPC: 783510386702
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A3M
• ECCN: EAR99
• Cover Mounting: Hinged Cover
• UNSPSC: 39121324
• Enclosure Width: 12 in
• Enclosure Height: 16 in
• Enclosure Depth: 6 in
• Enclosure Rating: NEMA 3R
• Mount: Hinged
• Special Program: Hoffman On Demand
• IP/NEMA Rating: NEMA 3R, NEMA 3
