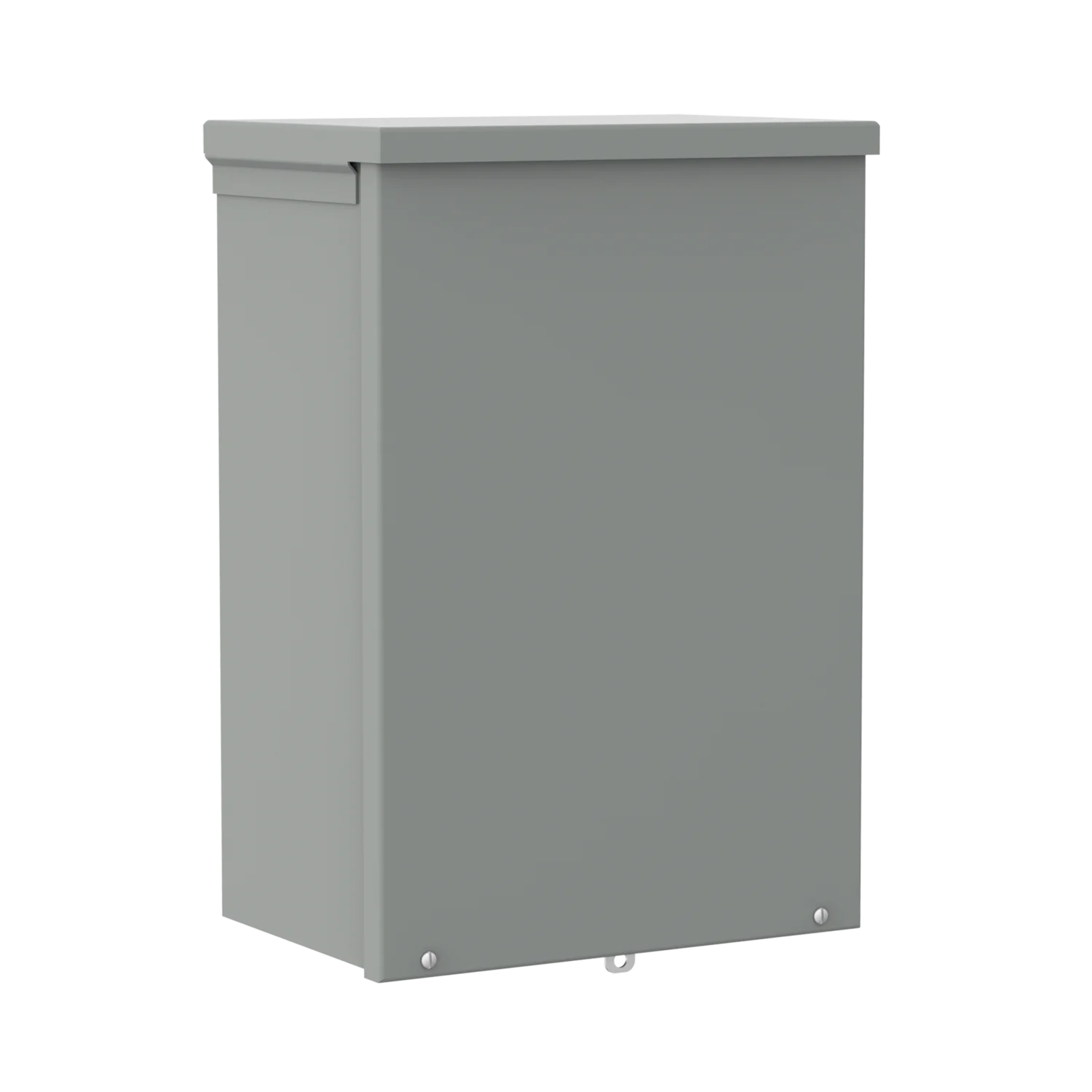

Hoffman A16R126 Screw-Cover Drip-Shield Type 3R With Knockouts 16x12x6

Product Description

The HOFFMAN A16R126 is a Type 3R Drip-Shield Screw-Cover, used as a wiring or junction box to protect controls in outdoor applications requiring protection from rain, sleet, snow, or dripping water. It is made of galvanized and powder-coated mild steel.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

This enclosure features knockouts, a screw cover, and embossed mounting holes. Suitable for outdoor applications, it provides a secure and protective housing for electrical components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16R126
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 43400
• Height: 16in
• Width: 12in
• Depth: 6in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: C-D-E-F-G
• Mounting: 1.06in
• Body Style: A
• UPC: 783510434007
• Bulletin Number: A90S3
• NEMA Rating: 3R
• Cover Mounting: Screw Cover
• ECCN: EAR99
• UNSPSC: 39121303
• Number of Knockouts: 5
• Knockouts: Yes
• Approximate Depth: 6 in
• Approximate Height: 16 in
• Approximate Width: 12 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A16R126
• Type: Junction Box
