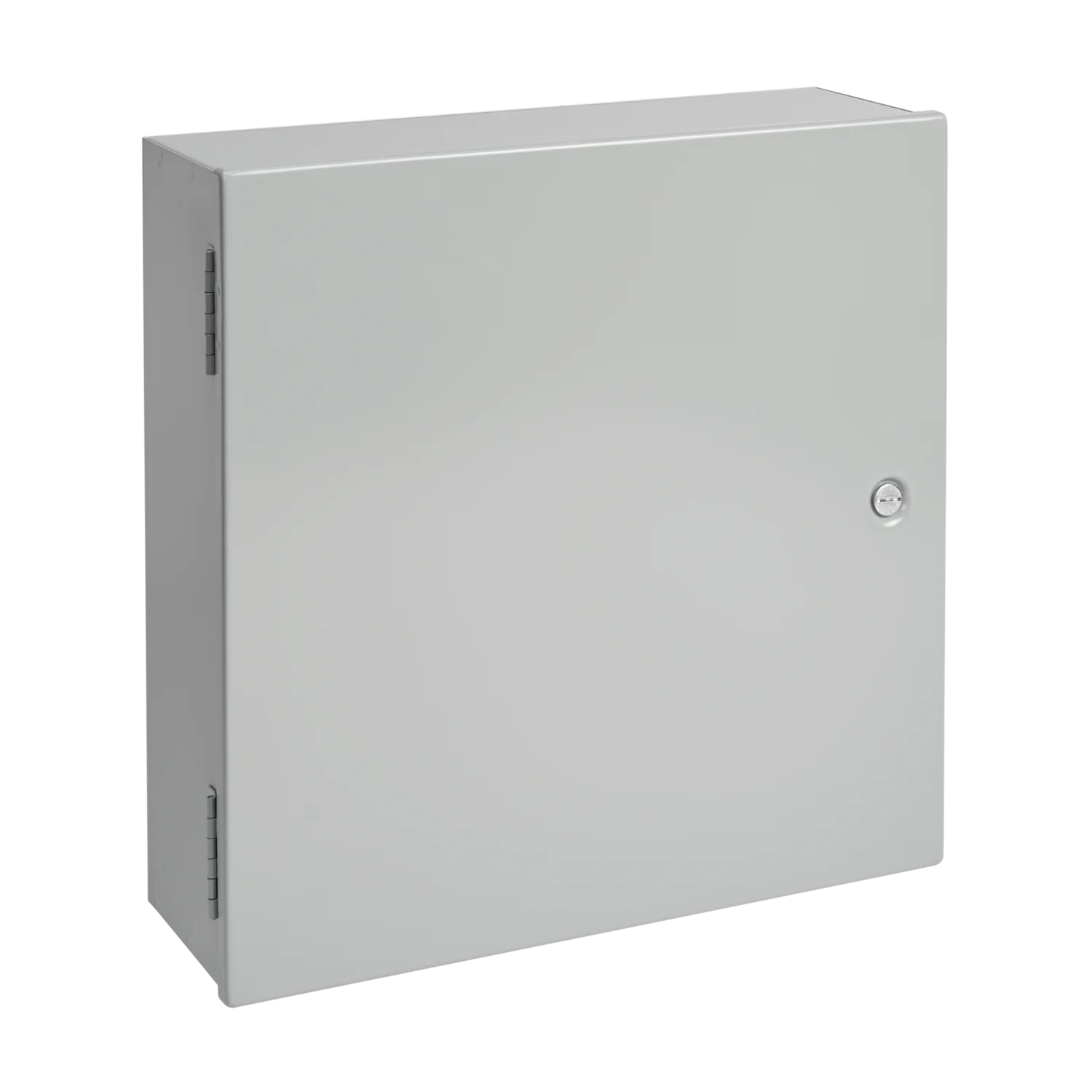

Hoffman A16N20ALP Medium Hinged-Cover Type 1, 16.00x20.00x6.62, Gray, Steel

Product Description

The HOFFMAN A16N20ALP medium hinged-cover pull box, Type 1, ranges in size from 16 x 12 inches to 36 x 30 inches. It features mounting provisions for an optional panel and meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Slotted flush latches; optional latches available

Product Highlights

This enclosure is suitable for controls and drives, as well as power distribution applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16N20ALP

Technical Specifications

• Article Number: 85950
• Height: 16 in
• Width: 20 in
• Depth: 6.62 in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 1.9 mm
• UPC: 783510859503
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Enclosure Rating: NEMA 1
• Mount: Hinged
• Applications: Controls and Drives; Power Distribution
• IP Rating: 30
• Mounting Type: Floor
• Size: 16.00x20.00x6.62 in
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
• Type: Single Door, Single Lock, Medium
• Brand: nVent Hoffman
• Sub Brand: Hoffman
