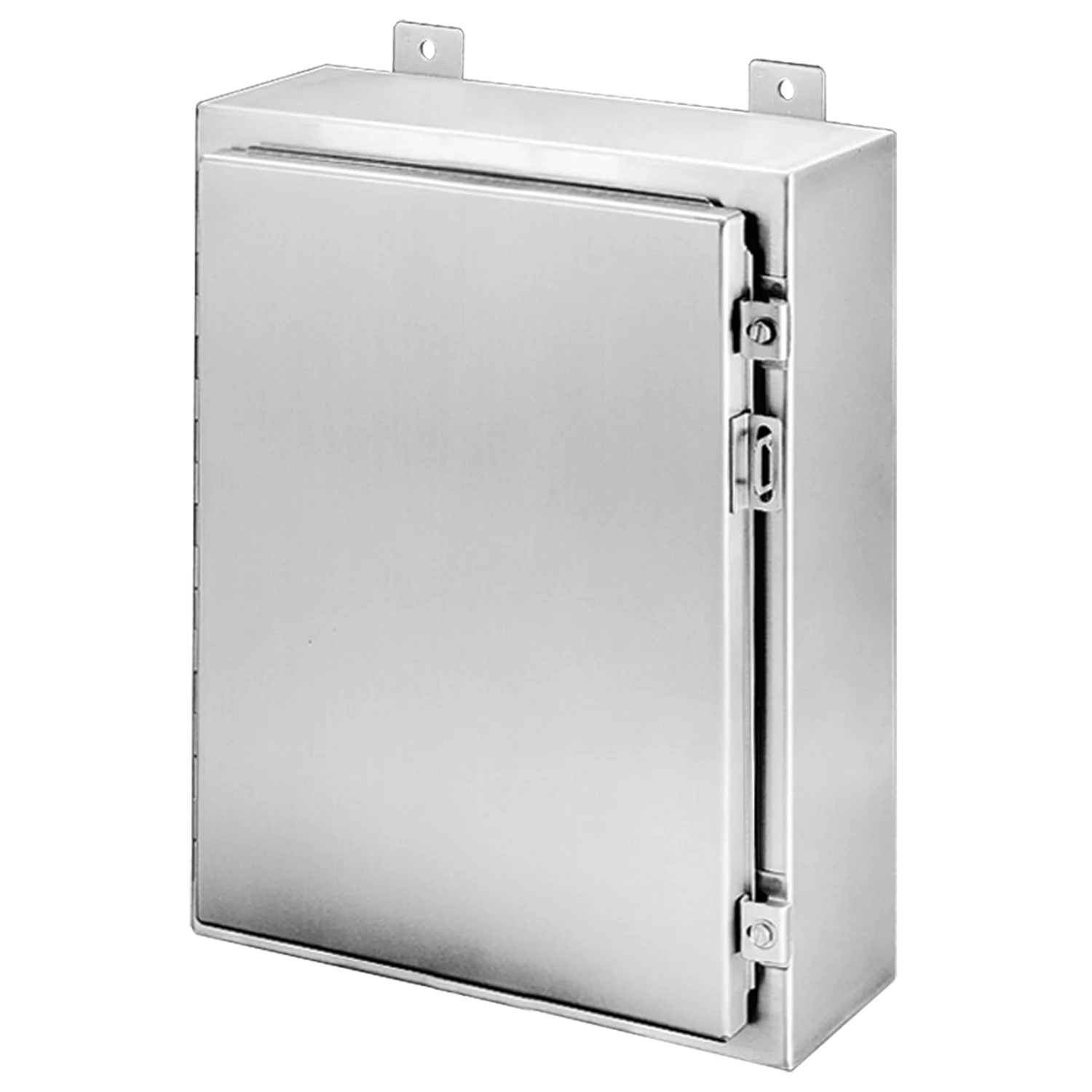

Hoffman A16H2006SSLP Wallmount Hinged with NEMA Clamps Type 4X, 16x20x6, SS304

Product Description

The Hoffman A16H2006SSLP wallmount hinged enclosure is for indoor and outdoor corrosive environments requiring a water-tight seal. Its seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants. It houses electrical and pneumatic controls, instruments, and components, protecting them from windblown dust, rain, splashing water, and hose-directed water.

• Seams continuously welded and ground smooth
• Seamless foam-in-place gasket
• Rolled lip around three sides of door

Product Highlights

The Hoffman A16H2006SSLP enclosure provides a secure seal against contaminants in corrosive environments. It features a stainless steel door clamp assembly and a hasp and staple for padlocking.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16H2006SSLP
• Country of Origin: USA

Technical Specifications

• Article Number: 29050
• Height: 16 in
• Width: 20 in
• Depth: 6 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Data Pocket: Small
• Clamp Quantity: 2
• UPC: 783510290504
• Bulletin Number: A4S
• Enclosure Rating: NEMA 4X
• Body Material: 304 Stainless Steel
• Mount: Wall
• IP Rating: 66
• Mounting Type: Wall
• Size: 16.00x20.00x6.00 in
• Type: Single Door, Four Lock
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• GTiN: 00783510290504
• Product UPC: 78351029050
• Enclosure Width: 20 in
• Enclosure Height: 16 in
• Enclosure Depth: 6 in
• Mounting: Surface
• IP/NEMA Rating: IP66, NEMA 4X, NEMA 3
• Standards: Build America Buy America Compliant
• UNSPSC Code: 31260000
• Approximate Depth: 6 in
• Approximate Height: 16 in
• Approximate Width: 20 in
• Configuration: Without Knock-Outs
• Cover Locking: Screw
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• NEMA Rating: NEMA 3RX
• Series: A4S Series
• UPC Code: 00783510290504
