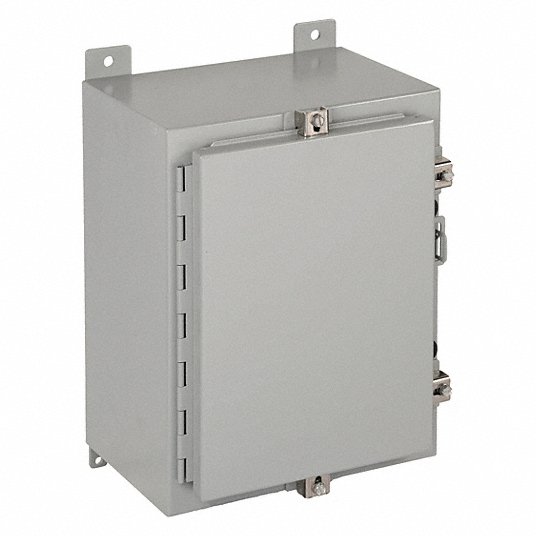

Hoffman A16H12ALP Encl W/ A16P12 Pnl (16x12x6)

Product Description

The HOFFMAN A16H12ALP Encl W/ A16P12 Pnl is a single-door enclosure featuring a hinged door with clamps on three sides, creating a secure seal for indoor or outdoor environments. Constructed of mild steel with a gray polyester powder finish, it offers enhanced corrosion protection. Ideal for housing electrical and pneumatic controls, instruments and components.

• Seams continuously welded and ground smooth
• External wall-mounting brackets for easy installation
• Formed external flanges around all sides of enclosure opening

Product Highlights

Provides protection from windblown dust and rain, splashing water, and hose-directed water. Suitable for electrical, industrial, food and drug manufacturing applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16H12ALP
• Country of Origin: USA

Technical Specifications

• Catalog ID: A16H12ALP
• Product SKU: HOFFA16H12ALPW/PNL
• Manufacturer: Hoffman
• UNSPSC: 39121332
• Family Group: WIREWAY/ENCLOSURES
• Sales Package Qty: 1.0
• UOM: EA
• Article Number: 24320
• Height: 16in
• Width: 12in
• Depth: 6in
• Material: Metal, Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 1.52 mm
• Clamp Quantity: 4
• Data Pocket: Small
• UPC: 783510243203
• Bulletin Number: A4
• Brand: HOFFMAN ENCLOSURES
• Specification Met: IP66, RoHS
• Model Number: A16H12ALP
• Part Number: A16H12ALP
• Category: Boxes
• Mfr: Hoffman Enclosures, Inc.
• Packaging: Bulk
• Part Status: Obsolete
• Features: Sealing Gasket, Wall Mount
• Container Type: Junction Box
• Ratings: IP66, NEMA 3,4,12,13, UL-508A
• Size / Dimension: 15.984" L x 12.008" W (406.00mm x 305.00mm)
• Area (L x W): 192in (1239cm )
• Base Product Number: A16H12
• Design: Hinged Door, Lid
• Type: Enclosure Only
• Enclosure Width: 12 in
• Enclosure Height: 16 in
• Enclosure Depth: 6 in
• Enclosure Rating: NEMA 4
• Mount: Hinged
• Body Material Thickness: 16 ga
• Closure Method: Clamps
• Compatible Panel Model Number: A16P12; A16P12G
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Washdown
• Gasket Material: Seamless Foam-In-Place
• IP Rating: IP66
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 4; 12; 13
• Nominal Depth: 6 in
• Nominal Height: 16 in
• Nominal Width: 12 in
• Overall Depth: 6 in
• Overall Height: 16 in
• Overall Width: 12 in
• Panel Height: 13 in
• Panel Width: 9 in
• Product Type: Continuous Hinge Enclosure
• Standards: CSA, File No 42186: Type 4 and 12; cUL Listed Per CSA C22.2 No 94; File No E61997; IEC 60529; NEMA/EEMAC Type 3, 4, 12, and 13; Type 4, 12, 13; UL 508A Listed
• Applications: For Indoor, Outdoor
• Body Gauge: 16
• Color Coding: ANSI 61
• Cover Type: Continuous Hinge with Clamps
• Gauge: 16 or 14 ga
• Size: 16.00x12.00x6.00 in
• Standard: 12,13,4,And 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
• Sub Brand: Hoffman
• MDM Pkg GTiN: 00783510243203
• Product UPC: 78351024320
• Length: 20.7 Inch
