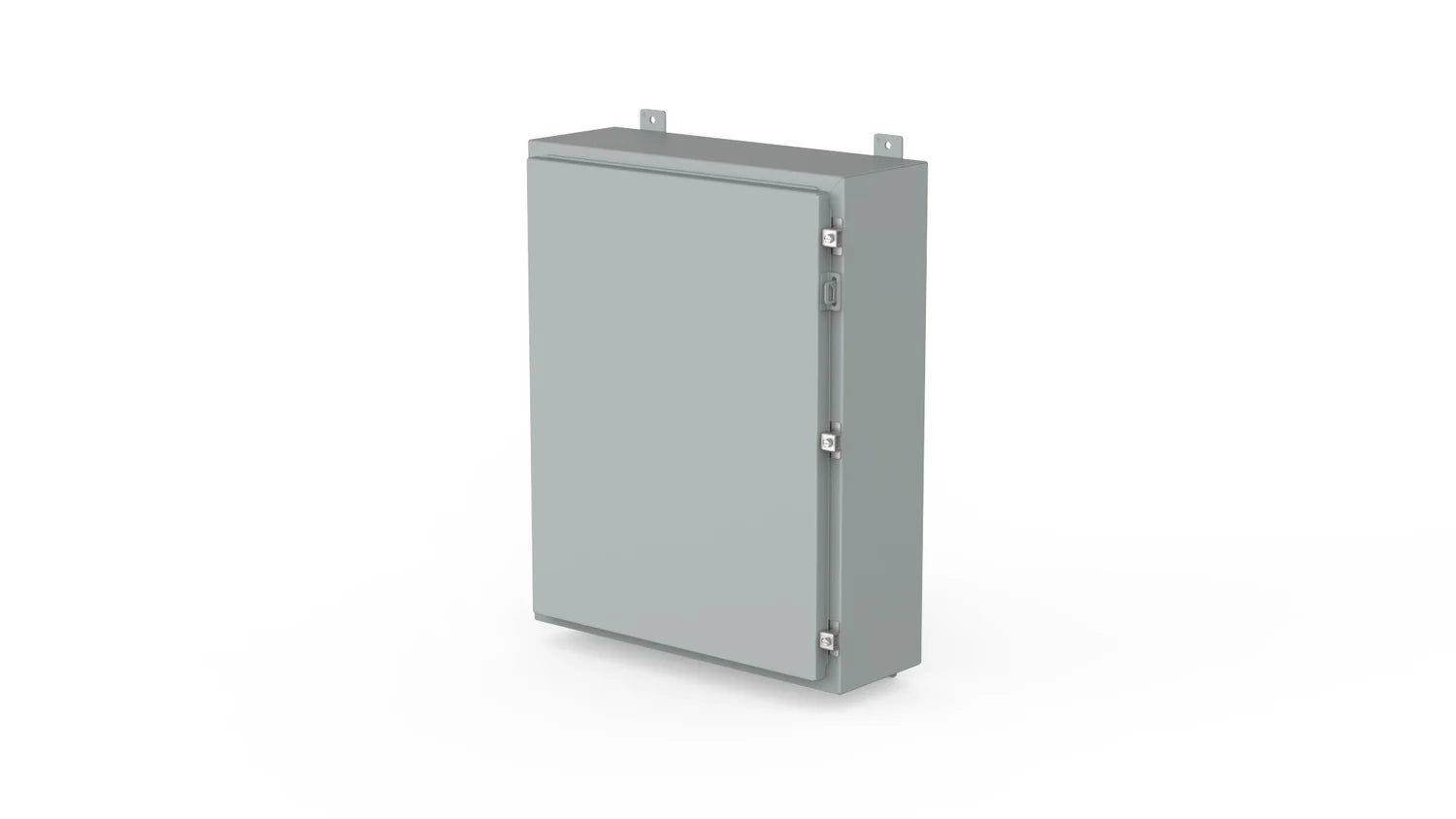

Hoffman A161606LP Wall Mount Enclosure 16.00x16.00x6.00

Product Description

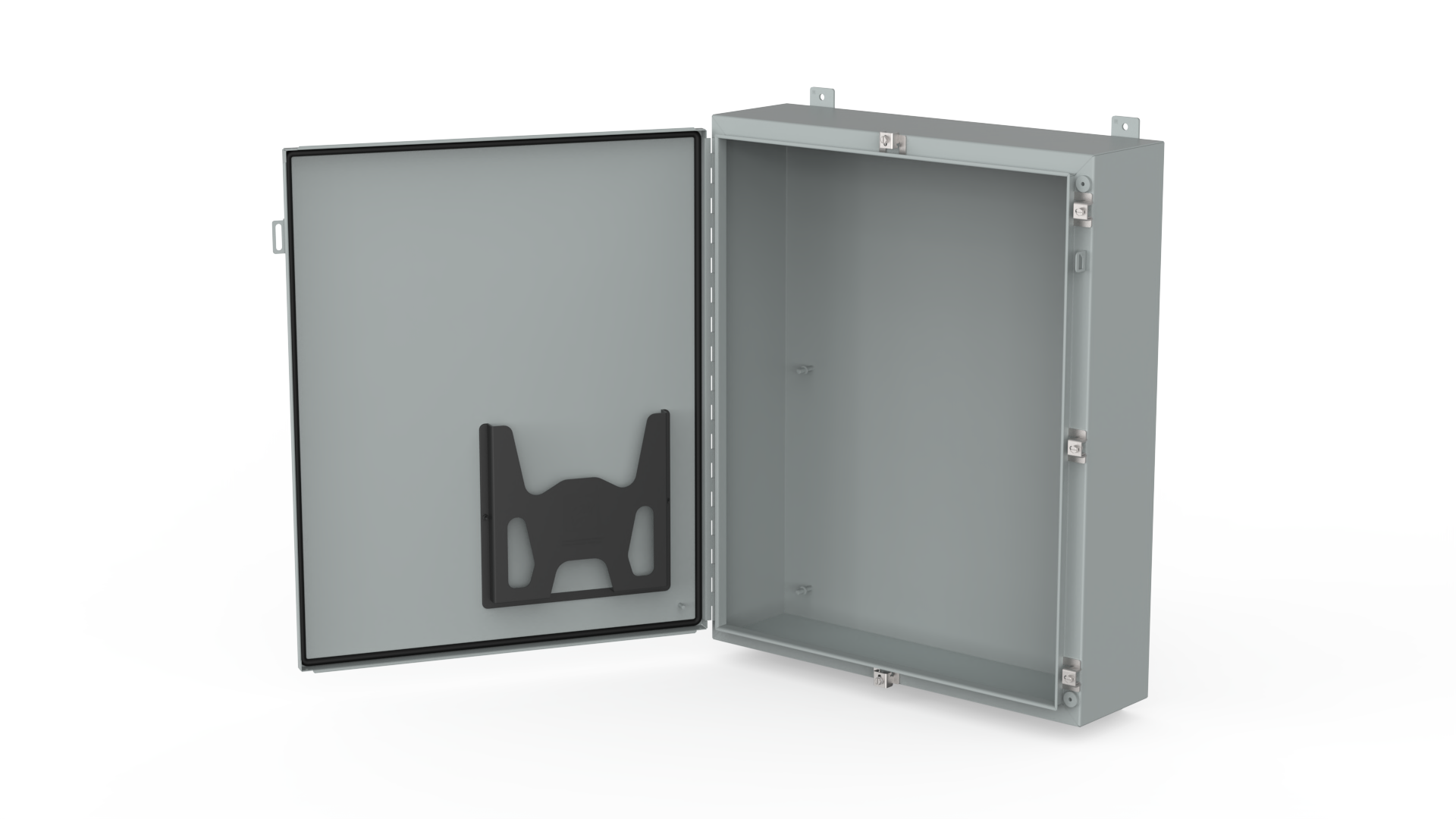

The Hoffman A161606LP wall mount enclosure is designed for applications needing a bright white interior to increase control visibility. It features a padlocking hasp and staple for security and screw-down clamps for secure closure. The enclosure is suitable for both indoor and outdoor applications.

• Constructed from 14 or 16 gauge steel for enclosure bodies and 14 gauge steel for doors.
• Features external wall-mounting brackets and formed external return flanges.
• Includes a high-impact thermoplastic data pocket and collar studs for optional panel mounting.

Product Highlights

This Hoffman enclosure provides a secure, versatile solution with a focus on visibility and robust construction.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A161606LP
• Country of Origin: US - United States

Technical Specifications

• Type: 12/13
• Brand: Hoffman
• Material: Steel
• A x B x C: 16.00 x 16.00 x 6.00 in
• Body Gauge: 16 ga
• Number of Clamps: 2
• Data Pocket Size: Small
• Panel Size (D x E): 13.00 x 13.00 in
• Manufacturers Part Number: A161606LP
• Height: 16 in
• Width: 16 in
• Depth: 6 in
• Finish: Powder Coated
• Mounting Type: Wall
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• NEMA Rating: 12 Indoor, dust-resistant
• IP Rating: IP65
• Panel Type: A16P16
• Size: 16.00x16.00x6.00 in
• Application: Controls and Drives
• Exterior Color: Gray
• Exterior Color Code: ANSI 61
• Interior Color: White
