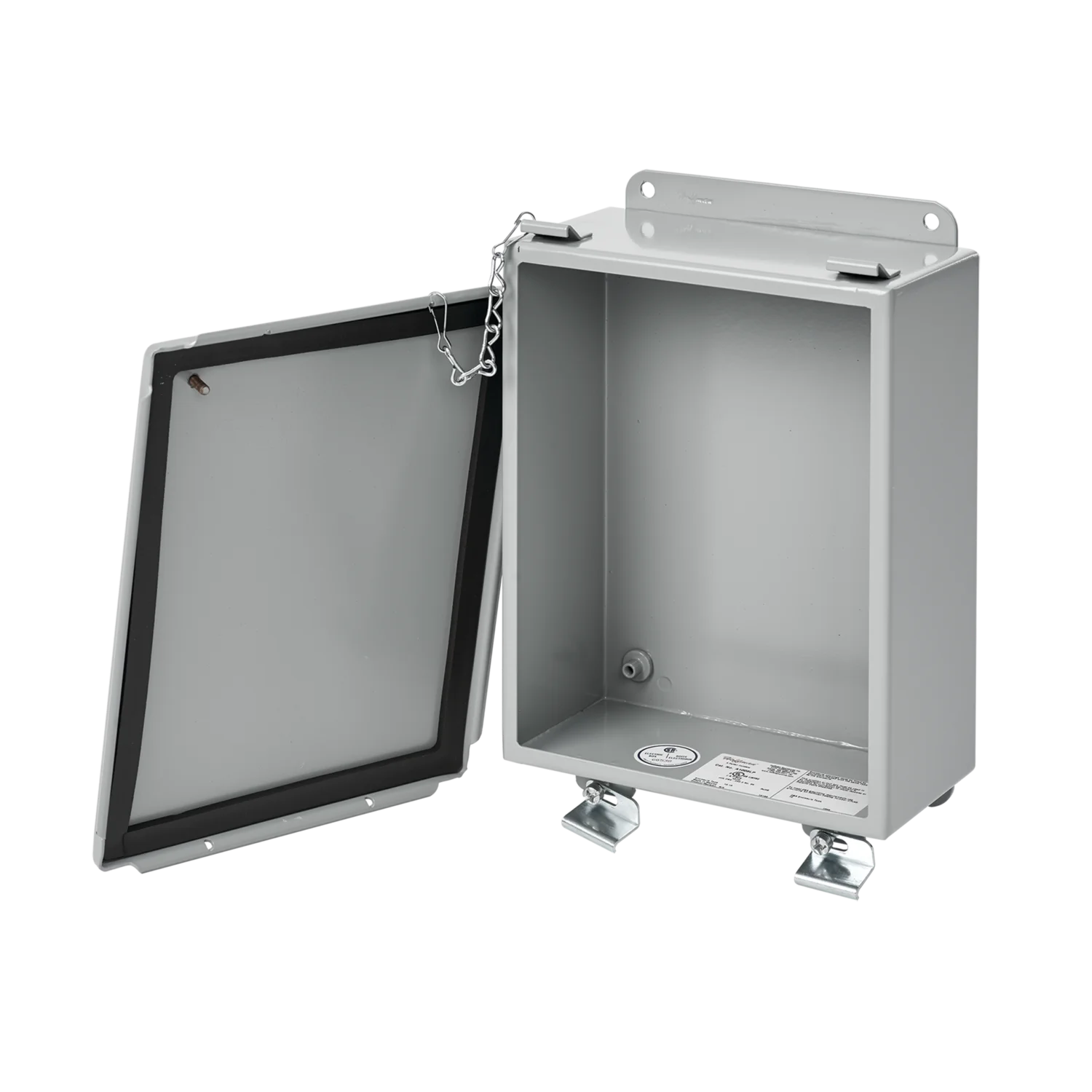

Hoffman A1614LP Lift-Off Clamp Cover Enclosure Type 12, 16.00x14.00x6.00

Product Description

The HOFFMAN A1614LP enclosure meets basic functionality requirements for housing controls and instrumentation. It features a chain-secured, lift-off clamp cover. The seams are continuously welded and ground smooth. External wall-mounting brackets are included.

• Seams continuously welded and ground smooth
• Screw-down clamps
• Lift-off cover

Product Highlights

This enclosure is ideal for housing controls and instrumentation, offering a secure and accessible solution.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1614LP
• Country of Origin: United States

Technical Specifications

• Article Number: 54100
• Height: 16in
• Width: 14in
• Depth: 6in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 1.9 mm
• Mounting: 16.75 x 12.00in
• Overall Dimensions: 17.50 x 14.64in
• UPC: 783510541002
• Bulletin Number: A51LP
• Cover Type: Clamp Cover
• Gauge: 14 AWG
• Mounting Type: Wall
• Size: 16.00x14.00x6.00 in
• Standard: CSA, File No. 42184: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E27525,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12 And 13,UL 50, 50E Listed; Type 12, 13; File No. E27525,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Single Door, Four Lock, Gangable
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510541002
• Product UPC: 78351054100
• Length: 17-1/4 Inch
• Application: Controls and Drives
• Material Specification: 14 Gauge
• Model: A1614LP-BLANK
• MPN: A1614LP
• Country of Origin: United States
