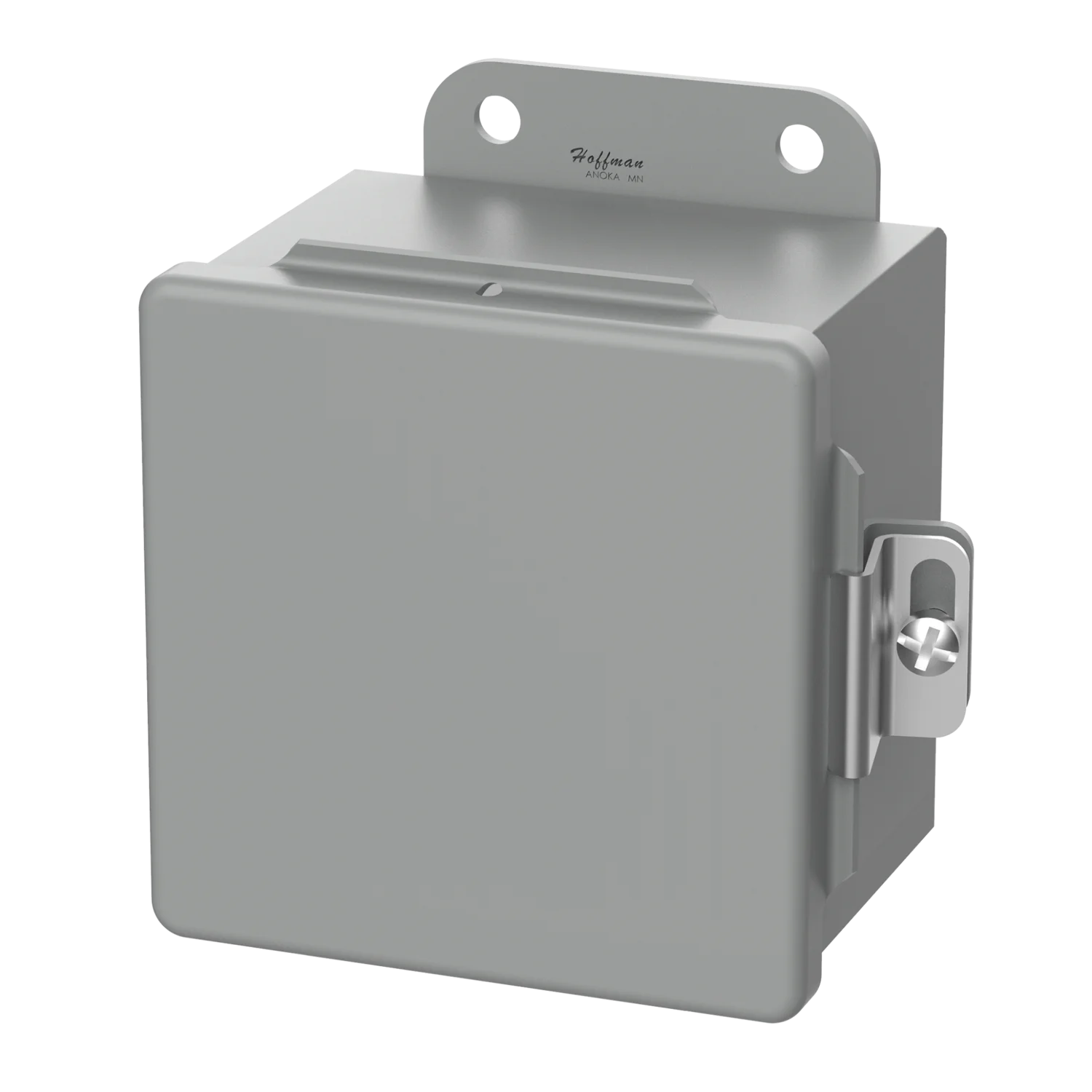

Hoffman A161410CH J Box, NEMA 12, Hinged Cover, Steel, 16.00 inches x 14.00 inches x 10.00 inches

Product Description

The Hoffman A161410CH J Box is a NEMA 12 rated enclosure with a hinged cover, constructed of steel. Measuring 16.00" x 14.00" x 10.00", this continuous-hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. It features continuously welded and ground smooth seams.

• Constructed from 16 or 14 gauge steel
• Features external screw clamps for easy operation
• Includes a bonding provision on the door

Product Highlights

This Hoffman J Box provides a secure and reliable enclosure solution for various applications, featuring a hinged cover and robust steel construction.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A161410CH

Technical Specifications

• NEMA Rating: NEMA 12
• Cover Type: Hinged Cover
• Material: Steel
• Size: 16.00" x 14.00" x 10.00"
• Article Number: 54940
• Height (H): 16in
• Width (W): 14in
• Depth (D): 10in
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness (T): 14ga
• Mounting (G x H): 16.75 x 12.00in
• Overall Dimensions (L x W): 17.50 x 14.94in
• UPC: 783510549404
• EAN: 8713574271173
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Category: Boxes
• Mfr: Hoffman Enclosures, Inc.
• Packaging: Bulk
• Part Status: Active
• Features: Sealing Gasket
• Container Type: Junction Box
• Ratings: IP65, NEMA 12, 13, UL-50, 50E
• Size / Dimension: 15.984" L x 14.016" W (406.00mm x 356.00mm)
• Height: 10.000" (254.00mm)
• Area (L x W): 224in ² (1445cm ²)
• Base Product Number: A161410
• Design: Hinged Door, Lid
• UNSPSC Code: 31260000
• Approximate Depth: 10 in
• Approximate Height: 16 in
• Approximate Width: 14 in
• Brand: nVent HOFFMAN
• Unit of Measure: EA
• UPC Code: 00783510549404
