Hoffman A161210LP Continuous Hinge Enclosure with Clamps LP Type 4, 16x12x10

Product Description

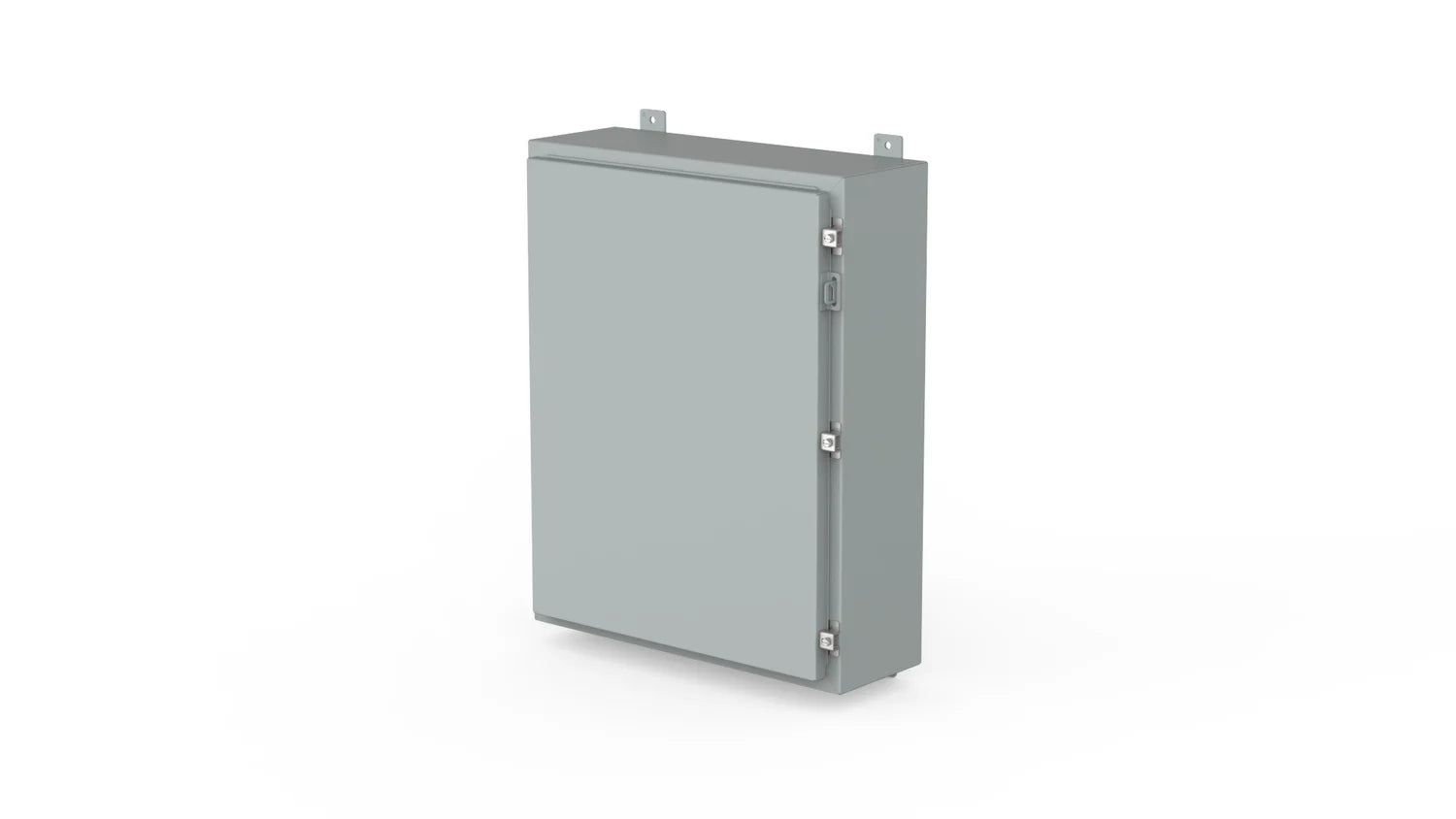

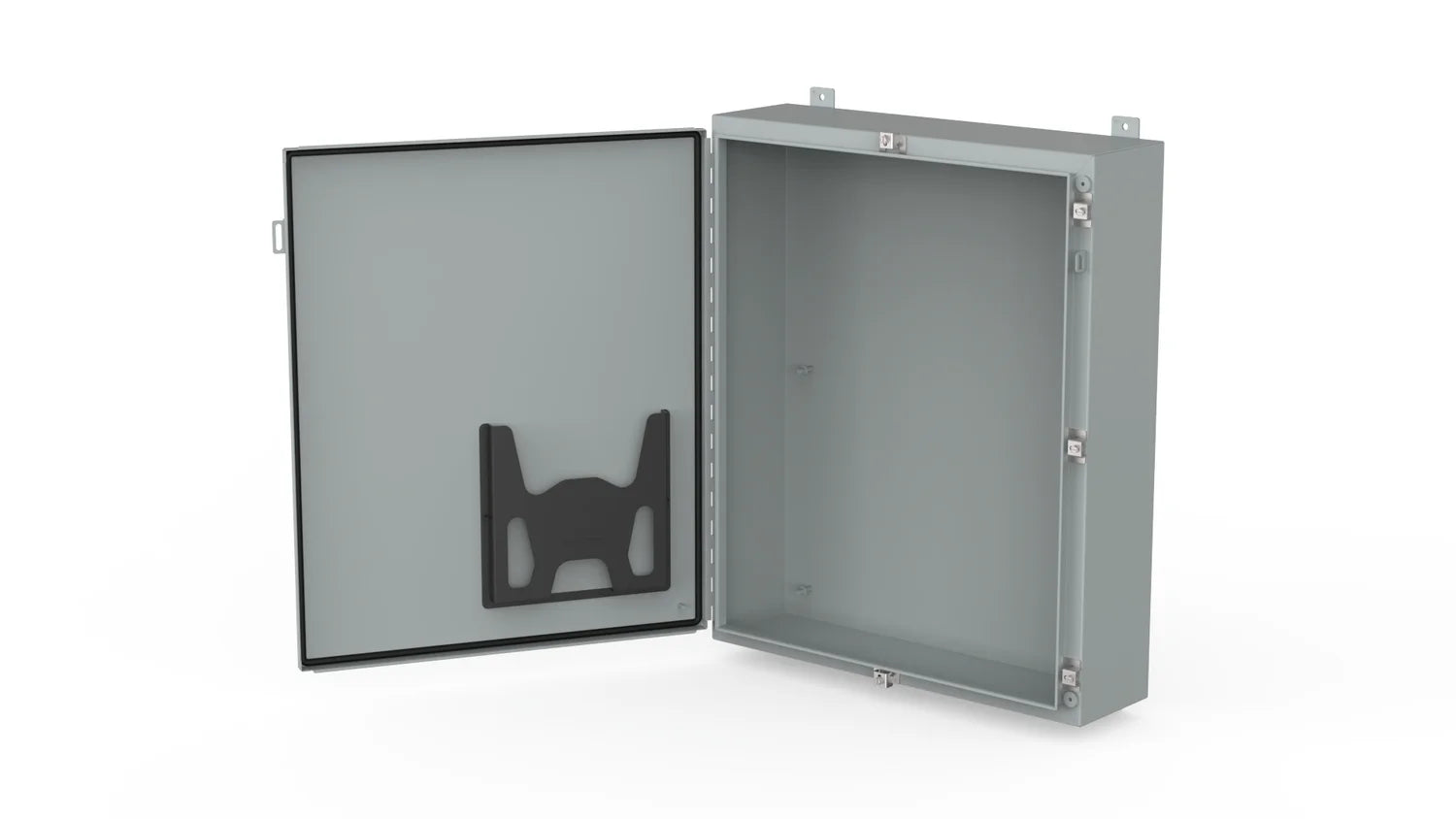

The HOFFMAN A161210LP is a single-door enclosure suitable for indoor and outdoor applications. Hardware is stainless steel, including the screw-down door clamps and heavy-gauge hinge pin. The door clamp count and position has been re-defined to achieve optimal compression of the seamless, foam-in-place gasket. Finished inside and out in a polyester powder paint that enhances corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

Type LP continuous hinge enclosures are used for applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A161210LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 28350
• Height: 16 in
• Width: 12 in
• Depth: 10 in
• Color: Gray
• Color Code: ANSI 61
• Material: Steel
• Finish: Powder Coated
• Thickness: 1.52 mm
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510283506
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A12
• Size: 16.00x12.00x10.00 in
• Type: Mild Steel Wall Mounted Industrial Enclosures
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510283506
• GTiN: 00783510283506
• Product UPC: 78351028350
• Mounting Type: Wall
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• NEMA Rating: 12, 13
• IP/NEMA Rating: IP65, NEMA 12, NEMA 13
• Mounting: Wall
• Knockouts: No
