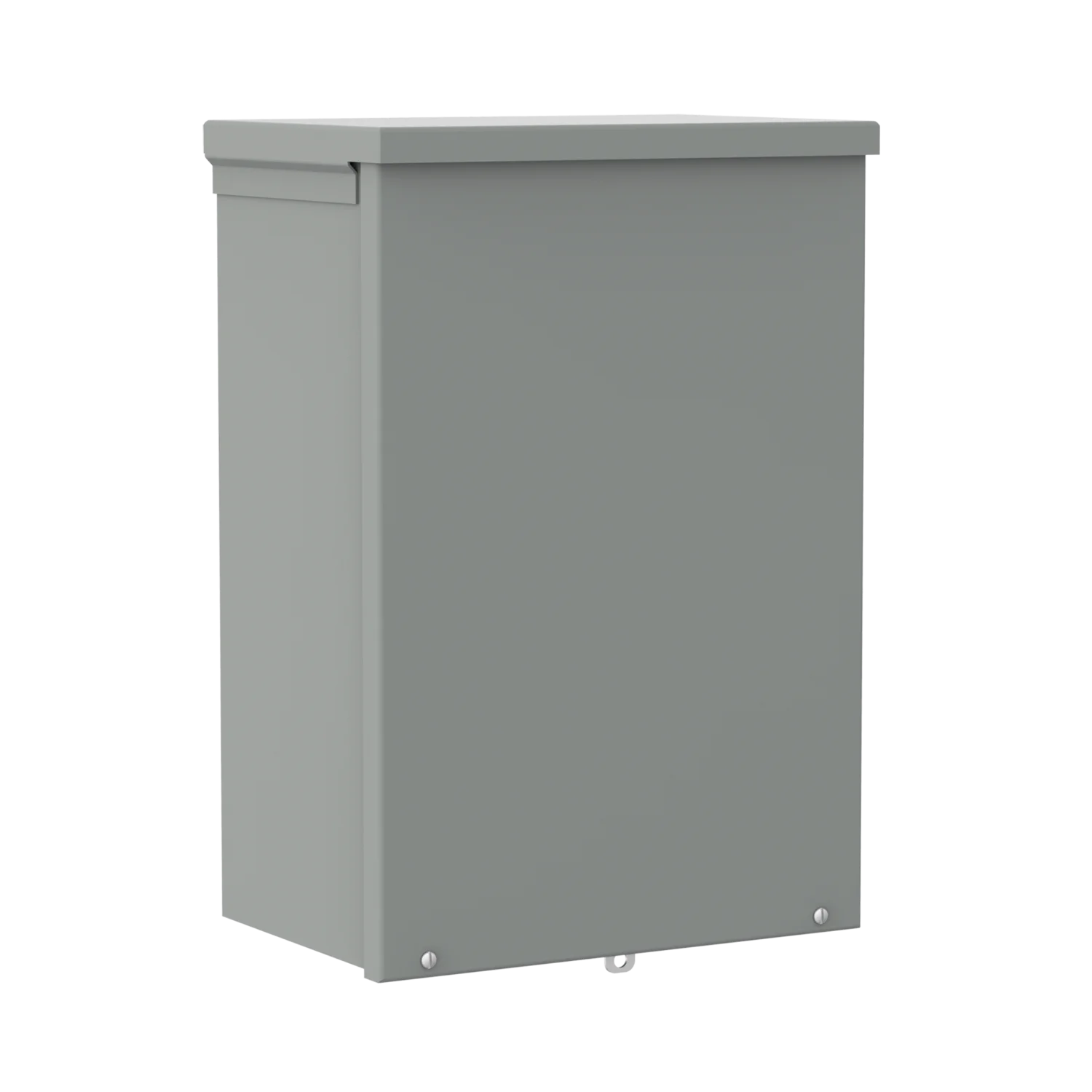

Hoffman A15R128 Screw-Cover Drip-Shield Type 3R With Knockouts 15x12x8

Product Description

The HOFFMAN A15R128 Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water. It can be used with or without knockouts. Enclosures are finished with paint over plated surfaces.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

The HOFFMAN A15R128 enclosure is ideal for outdoor applications requiring protection from the elements. Features include knockouts, a screw cover, and embossed mounting holes.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A15R128
• Country of Origin: Mexico

Technical Specifications

• Article Number: 50169
• Height: 15 in
• Width: 12 in
• Depth: 8 in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: C-D-E-F-G
• Mounting: 1.06in
• Body Style: A
• UPC: 783510501693
• Bulletin Number: A90S3
• Enclosure: 3R
• IP Rating: 32
• Size: 15.00x12.00x8.00 in
• Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
• Type: Pull and Junction Boxes
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510501693
• Approximate Depth: 8 in
• Approximate Height: 15 in
• Approximate Width: 12 in
• Manufacturer Part Number: A15R128
• UNSPSC: 39121303
• Country of Origin: Mexico
• Cable Entry Size: (2) 3/4 to 1 in, (2) 1/2 to 3/4 in, (1) 1 to 1-1/4 in Knockout Bottom
• Cover Type: Screw
• Lock: Padlock
• Mounting Type: Wall
• NEMA Rating: NEMA 3R/IP32
• Series: A90S3
• With Knockouts: Yes
• Application: For outdoor application as a wiring or junction box
