Hoffman A14N124 Small Hinge-Cover Enclosure 14.00x12.00x4.00

Product Description

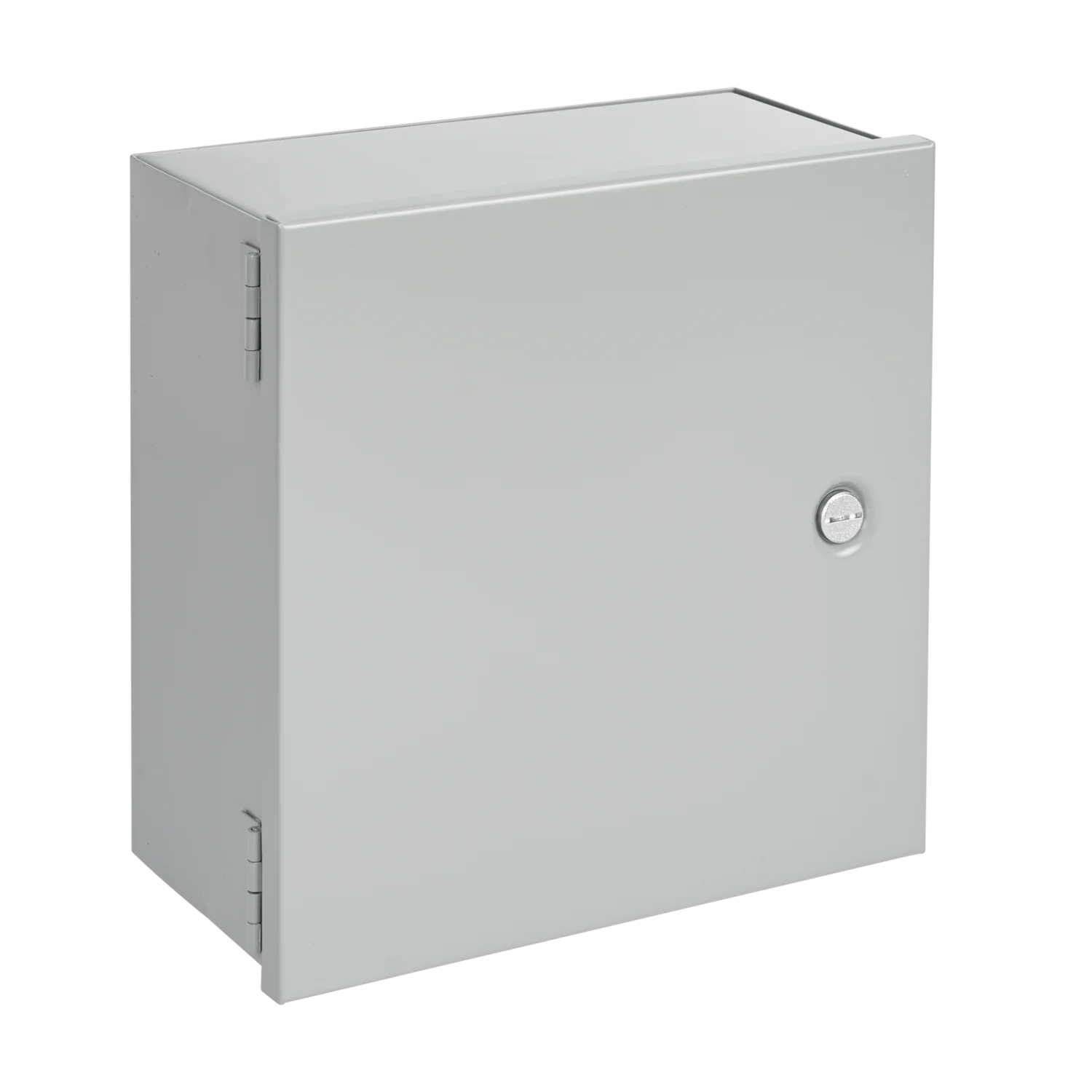

The HOFFMAN A14N124 small hinged-cover enclosure is a Type 1 enclosure with dimensions of 14.00x12.00x4.00 inches. It meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures. Constructed of mild steel with a gray powder-coated finish, it features butt hinges on the door and mounting holes on the back.

• Butt hinges on door
• Flush slotted latch operated with a screwdriver; optional latches available
• Weldnuts provided for mounting optional panels

Product Highlights

Type 1 enclosure suitable for indoor applications with butt hinges and a flush slotted latch.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A14N124
• Country of Origin: Mexico

Technical Specifications

• Article Number: 34230
• Height: 14 in
• Width: 12 in
• Depth: 4 in
• Material: Steel
• Finish: Polyester Powder Painted
• Color: ANSI 61 Gray
• Color Code: ANSI 61
• Thickness: 16 Gauge
• UPC: 783510342302
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A1SM
• IP/NEMA Rating: 1, IP30
• Type: Enclosure, Hinged Cover
• Enclosure Width: 12 in
• Enclosure Height: 14 in
• Enclosure Depth: 4 in
• Mount: Hinged
• UNSPSC: 39121324
• Approval: UL 50/50E, CUL, CSA C22.2
• Material Specification: 16 Gauge
• Cover Type: Butt Hinged, Slotted Flush Latch
• NEMA: 1
• Cover Mounting: Hinge
• Cover Latching: Latch, 1/4 Turn Slot
• Optional Panel: A14N12P
