Hoffman A1412LP Lift-Off Clamp Cover Enclosure 14 x 12 x 6

Product Description

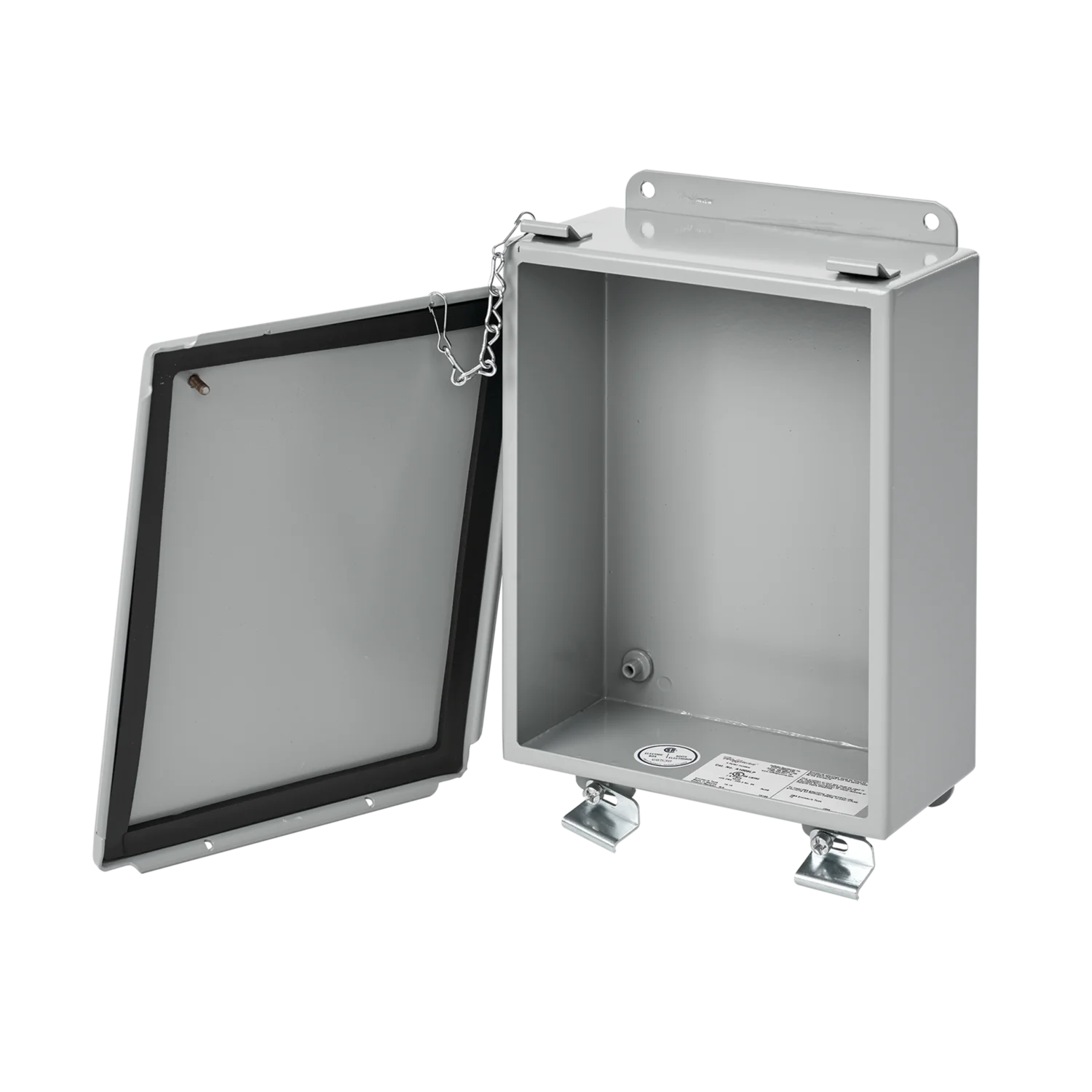

The HOFFMAN A1412LP lift-off clamp cover enclosure meets basic functionality requirements for housing controls and instrumentation. Features continuously welded and ground smooth seams, screw-down clamps, and a lift-off cover. A bonding provision is on the cover, and a chain holds the cover to the box when removed.

• Seams continuously welded and ground smooth
• Screw-down clamps
• Lift-off cover

Product Highlights

The A1412LP enclosure is suitable for housing controls and instrumentation with a focus on durability and ease of access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1412LP
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 54090
• Height: 14 in
• Width: 12 in
• Depth: 6 in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Mounting: 14.75 x 10.00in
• Overall Dimensions: 15.50 x 12.64in
• Weight: 15.1lb
• UPC: 783510540906
• EAN: 8713574270718
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A51LP
• Gauge: 14 AWG
• Standard: CSA, File No. 42184: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E27525,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12 And 13,UL 50, 50E Listed; Type 12, 13; File No. E27525,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Lift-Off-Cover, Type 12
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• GTiN: 00783510540906
• Product UPC: 78351054090
• Length: 14.4 Inch
• Nema Rating: NEMA 12/13, IP65
• Material Specification: 14 Gauge
• Cover Type: Chain Secured Lift-Off, Gasketed, Screw Clamp
• Approval: UL 50/50E, CUL, CSA C22.2
• Suitable For: Wall
• Mounting Style: Panel
• Model: A1412LP
• Item Height: 6 in
• ECCN: EAR99
• UNSPSC: 39121303
• Application: With a chain-secured, lift-off clamp cover, this enclosure meets basic functionality requirements for housing controls and instrumentation.
