Hoffman A14107JFGR Screw Cover Quick-Release Latch Type 4X, 13.50x10.00x7.20, Fiberglass

Product Description

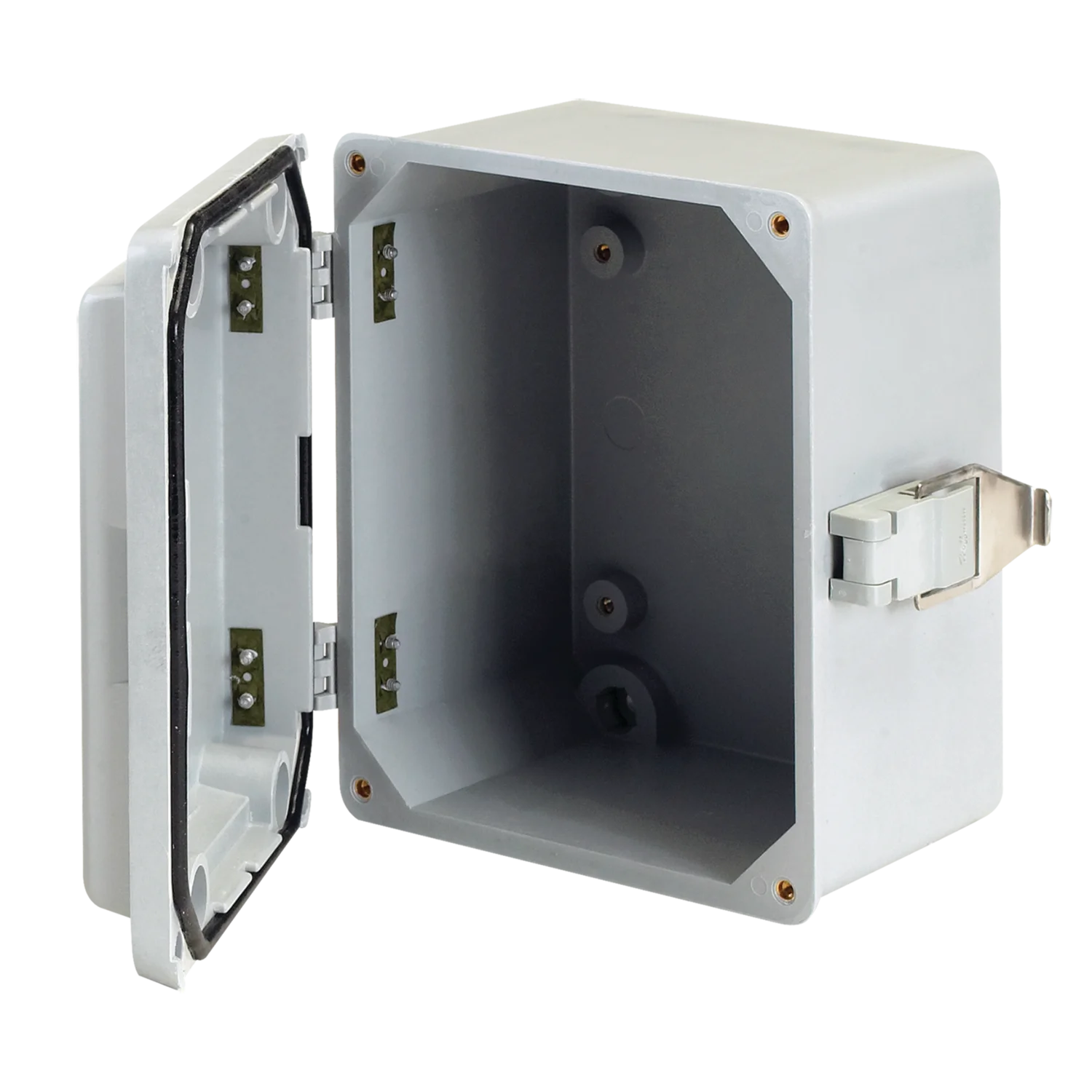

The HOFFMAN A14107JFGR screw cover quick-release latch type 4X enclosure is able to withstand harsh environments, featuring a simple, traditional non-metallic design suitable for a broad range of applications. The compression-molded fiberglass material offers excellent temperature and chemical resistance.

• Fiberglass material is easily punched, drilled, filed or sawed
• Seamless foam-in-place gasket assures water-tight and dust-tight seal
• Threaded internal bosses provided for mounting optional panels and terminal block kits

Product Highlights

This enclosure features corrosion-resistant polyester hinges and latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A14107JFGR

Technical Specifications

• Article Number: 41180
• Height (H): 14in
• Width (W): 10in
• Depth (D): 7in
• Material: Fiberglass
• Finish: Smooth Matte
• Color: Light Gray
• Color Code: RAL 7035
• Thickness (T): 0.12in
• Cover Style: Solid
• Latch Type: Screws
• UPC: 783510411800
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Length: 13-1/2 in
• Lock: Quick Release Latch With Padlock Hasp
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 10.75 x 8.88 in
• Series: A50
• Application: For harsh environments
• Standard & Approvals: UL 508A, File No. E61997, cUL Listed per CSA C22.2 File No. 94, File No. E61997, RoHS Compliant
• Capacity: 971 cu-in
• Cover Type: Hinged With Screw
• UNSPSC Code: 31260000
• Approximate Depth: 7.0 in
• Approximate Height: 14.0 in
• Approximate Width: 10.0 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A14107JFGR
• Overview: fiberglass Screw or Hinge Cover - Quick Release Latch
• UNSPSC: 39121324
• Approval: UL 508A, CUL, CSA C22.2
• Compression Molded Fiberglass: Compression Molded Fiberglass
• Back Panel: A12P10, A12P10AL
• Nema Rating: NEMA 3/3R/4/4X/12/13, IP66
• Type: 1-Solid Door
