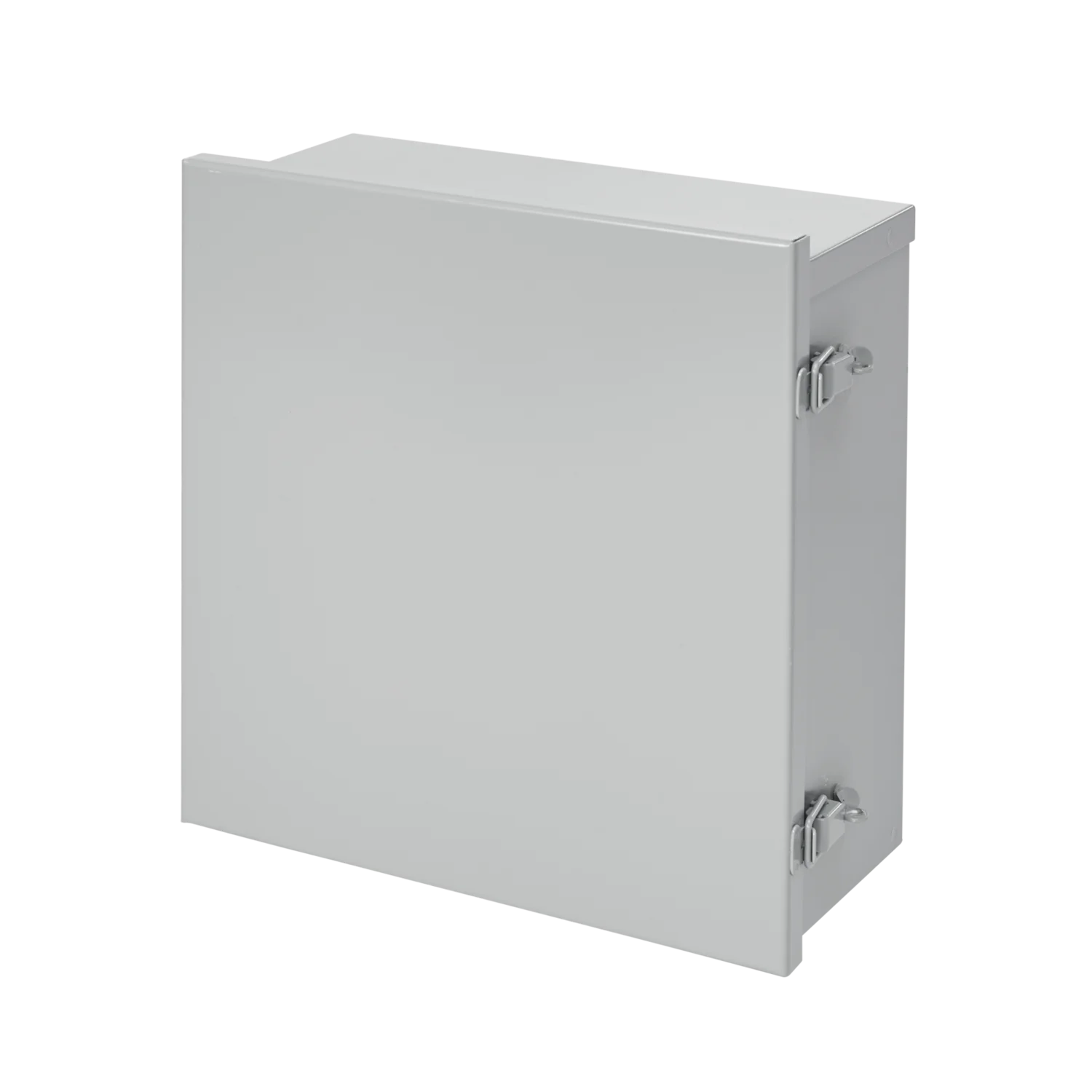

Hoffman A12R106HCLO Drip-Shield Hinged Lift-Off Cover Type 3R, 12.00x10.00x6.00

Product Description

The HOFFMAN A12R106HCLO drip-shield hinged lift-off cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor and other applications subject to rain, sleet, snow or dripping water. Ideal for building automation systems, BAS, and HVAC applications.

• Drip-shield top and seam-free sides, front and back
• Galvanized steel lift-off hinges with stainless steel pins
• Provisions for padlocking on each draw pull catch

Product Highlights

NEMA 3R enclosure with hinged cover and lift-off design for easy access and protection in harsh environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A12R106HCLO
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 38890
• Height: 12 in
• Width: 10 in
• Depth: 6 in
• Material: Steel
• Finish: Galvanized/Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Enclosure Width: 10 in
• Enclosure Height: 12 in
• Enclosure Depth: 6 in
• Enclosure Rating: NEMA 3R
• Mounting Type: Wall
• Series: A3LO
• Cover Type: Hinged/Lift-Off
• UNSPSC: 39121324
• Application: For protect components in applications subject to rain, sleet, snow or dripping water
• ECCN: EAR99
• Standard: UL 50, 50E Listed, Type 3R, File No. E27567, cUL Listed per CSA C22.2 No 94, Type 3R File No. E27567, NEMA/EEMAC Type 3R, CSA, File 42184: Type 3R, IEC 60529, IP32
• Color Family: Gray
• Country of Origin: Mexico
• Manufacturer: nVent
• Package Type: CASE
• Type / Style: Hinge-Cover Lift-Off, Type 3R
• IP/NEMA Rating: NEMA 3R, NEMA 3
