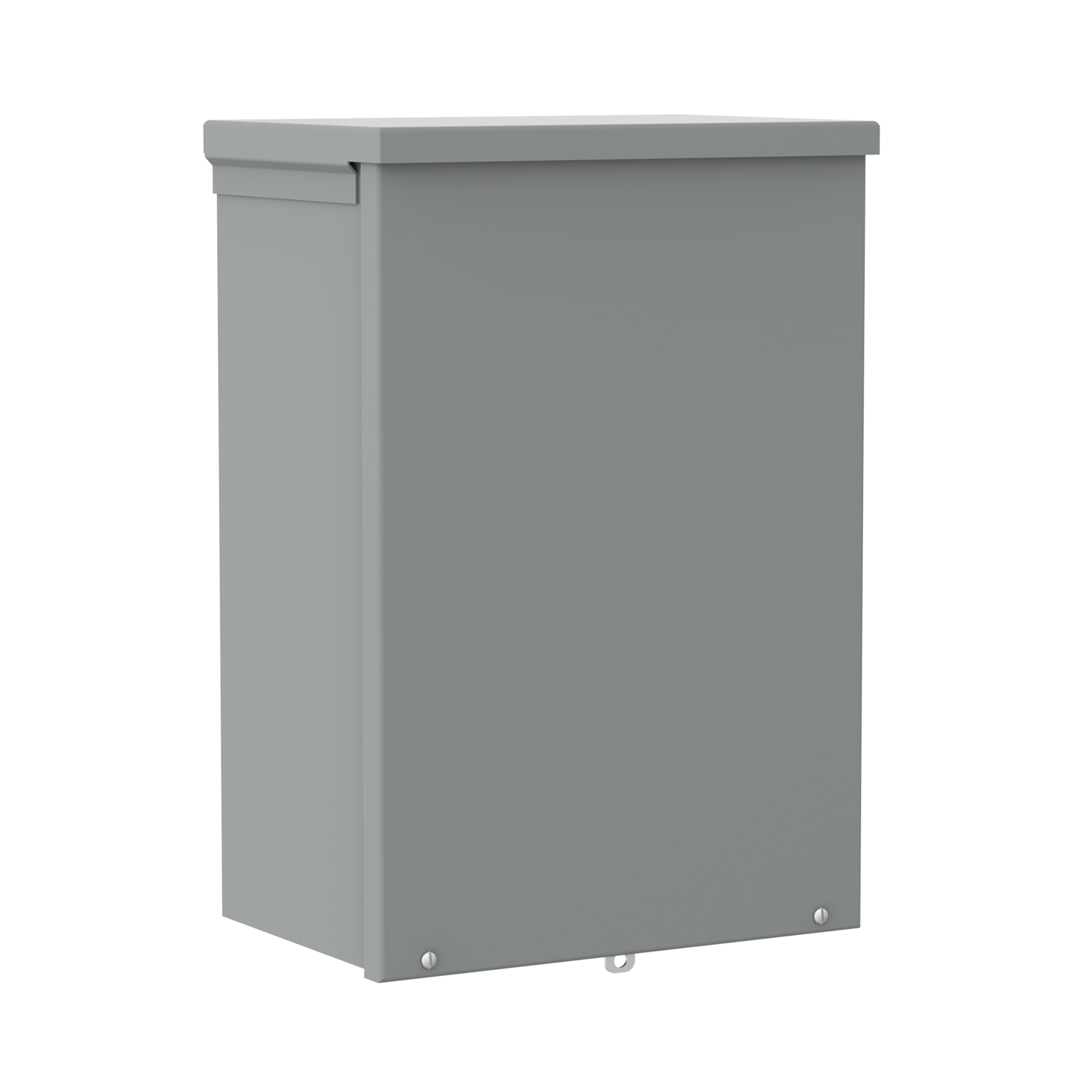

Hoffman A12R106 Screw-Cover Drip-Shield 12x10x6

Product Description

The HOFFMAN A12R106 Drip-Shield Screw-Cover is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow, or dripping water. Features a slip-on removable cover fastened with plated steel screws along the bottom edge and embossed mounting holes on the back of the enclosure.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

The HOFFMAN A12R106 enclosure is ideal for outdoor applications requiring protection from the elements. It is constructed of mild steel with a galvanized and powder-coated finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A12R106
• Country of Origin: United States

Technical Specifications

• Article Number: 38140
• Height: 12 in
• Width: 10 in
• Depth: 6 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: C-D-E-F-G
• Mounting: 1.06in
• Body Style: A
• UPC: 783510381400
• Bulletin Number: A90S3
• Number of Knockouts: 5
• Material Specification: 16/14/12 Gauge
• Knockout Location: (5) Bottom
• Knockout Size: (2) (1/2 to 3/4 Inch), (2) (3/4 to 1 Inch), (1) (1 to 1-1/4 Inch) Concentric Knockout Bottom
• Service Type: Outdoor
• Approval: UL 50/50E, CUL, CSA C22.2
• Enclosure: NEMA 3R, IP32
• Additional Info: Applicable Standard IEC 60529; ROHS Compliant
• Lock: Padlocking
• NEMA Rating: 3R Weather-resistant
• Series: A90S3
• Type: Pull and Junction Boxes
• Cable Entry: (2) 3/4 - 1 in Knockout Bottom, (2) 1/2 - 3/4 in Knockout Bottom, (1) 1 - 1-1/4 in Knockout Bottom
• Application: Power Distribution
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: A12R106
• Country of Origin: MX
• Door Thickness [Metric]: 1.52 mm
• EU RoHS Indicator: NEW
• Height [Metric]: 30.9880 cm
• Interchangeable: No
• IP Rating: IP32
• Item Group: A90S3
• Length [Metric]: 25.4000 cm
• Modification Services: Yes
• Mounting [Metric]: 57 mm
• Size: 12.00x10.00x6.00 in
• Standards: UL 50/50E, Type 3R, File No. E27525, cUL Listed per CSA C22.2 No 94, Type 3R, File No. E27525, IEC 60529, IP32, RoHS Complaint
• UNSPSC: 39121303
• UPC 11: 78351038140
• UPC 12: 783510381400
• Width [Metric]: 16.0020 cm
• Brand: nVent HOFFMAN
• Manufacturer: HOFFMAN ENCLOSURES
• Length: 6.3000 in
