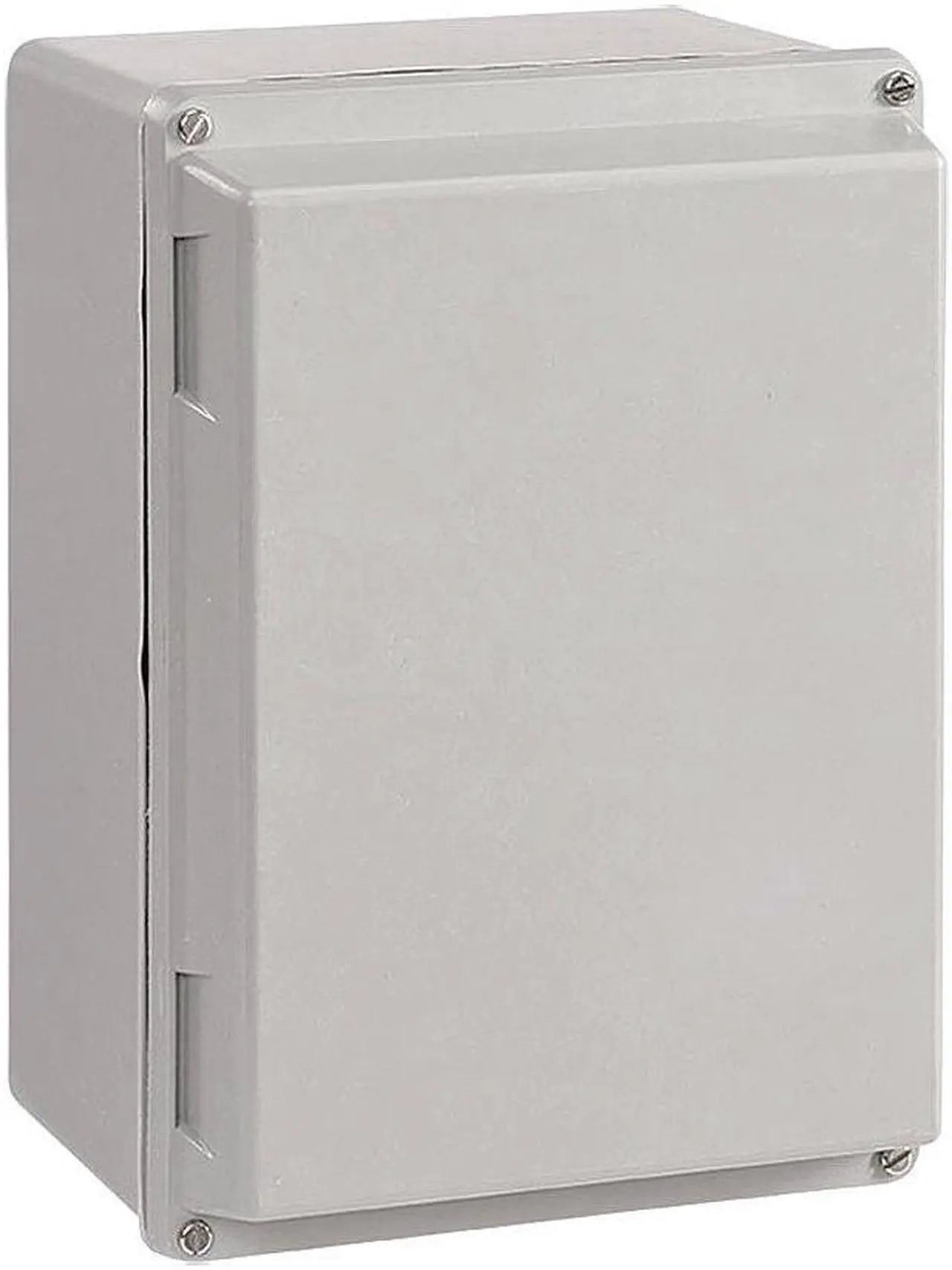

Hoffman A1287JFGR Screw Cover Quick-Release Latch Type 4X, 11.50x8.00x6.70, Fiberglass

Product Description

The HOFFMAN A1287JFGR screw cover enclosure is designed to withstand harsh environments. This non-metallic enclosure features a simple design suitable for various applications. The fiberglass material offers excellent temperature and chemical resistance. The cover securely fastens to the body with stainless steel cover screws.

• Compression-molded fiberglass material has excellent temperature and chemical resistance qualities
• Seamless foam-in-place gasket assures water-tight and dust-tight seal

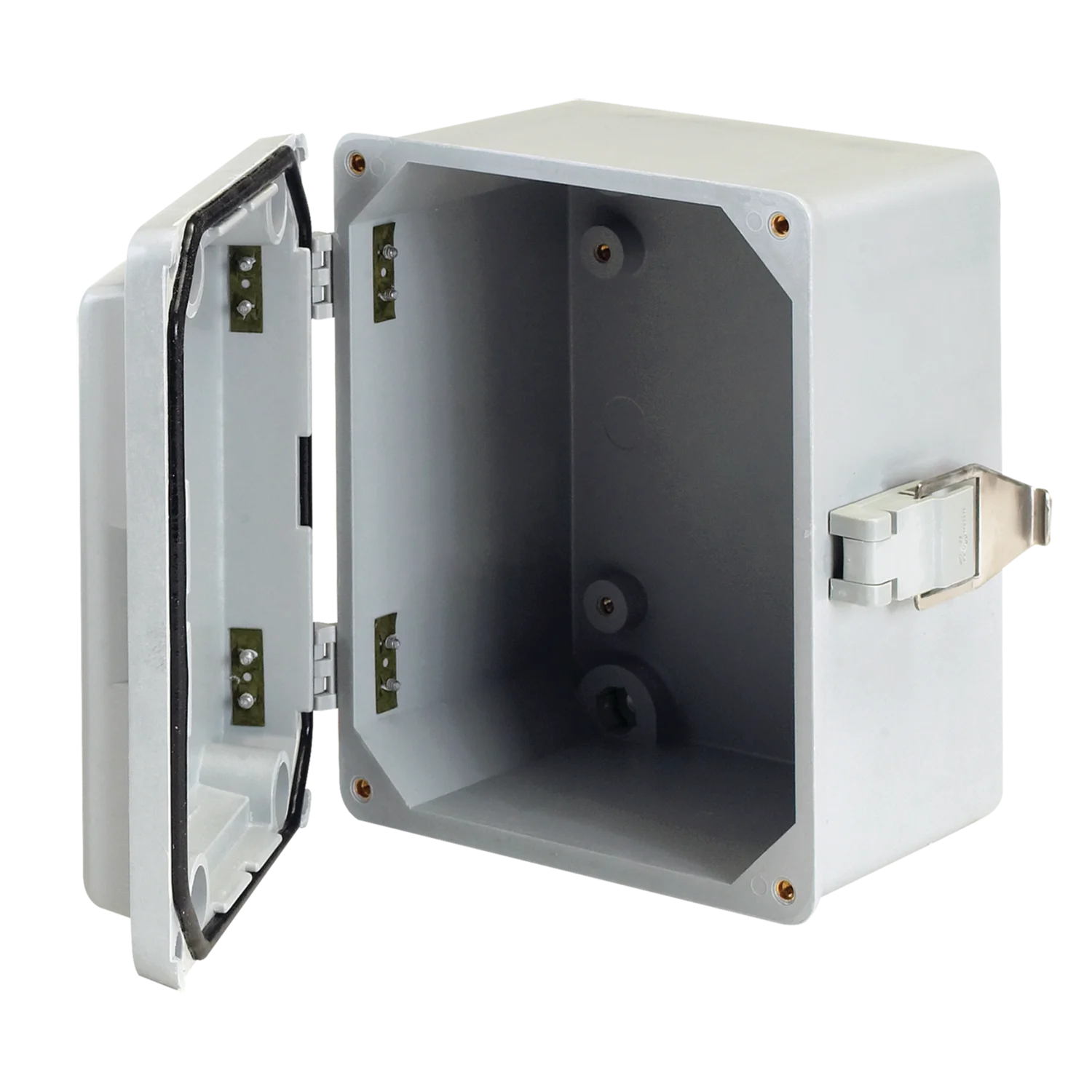

• Threaded internal bosses provided for mounting optional panels and terminal block kits

Product Highlights

Durable fiberglass enclosure with a screw cover, foam gasket, and internal bosses for mounting. Ideal for harsh environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1287JFGR
• Country of Origin: USA

Technical Specifications

• Article Number: 41170
• Height: 12in
• Width: 8in
• Depth: 7in
• Material: Fiberglass
• Finish: Smooth Matte
• Color: Light Gray
• Color Code: RAL 7035
• Thickness: 0.12in
• Cover Style: Solid
• Latch Type: Screws
• UPC: 783510411701
• Lock: Quick Release Latch With Padlock Hasp
• Mounting Type: Wall
• NEMA Rating: NEMA 3/3R/4/4X/12/13, IP66
• Application: For harsh environments
• Cover Type: Hinged, Foam Gasketed, Screw-On
• Panel Size: 8.75 x 6.88 in
• Capacity: 615 cu-in
• Standard & Approvals: UL 508A, CUL, CSA C22.2, RoHS Compliant
• Series: A50
• UNSPSC: 39121314
• Approval: UL 508A, CUL, CSA C22.2
• Back Panel: A10P8, A10P8AL
• Mounting: Bracket
• Type: 1-Door
• Brand: Hoffman
• MPN: A1287JFGR
• Category: Electrical Equipment & Supplies
• Manufacture: NVENT HOFFMAN
• Mfr Catalog Number: A1287JFGR
• Product UPC: 78351041170
• Product Category: Multipurpose Wall Mount E
• Commodity Code: 3623
• Country of Origin: USA
