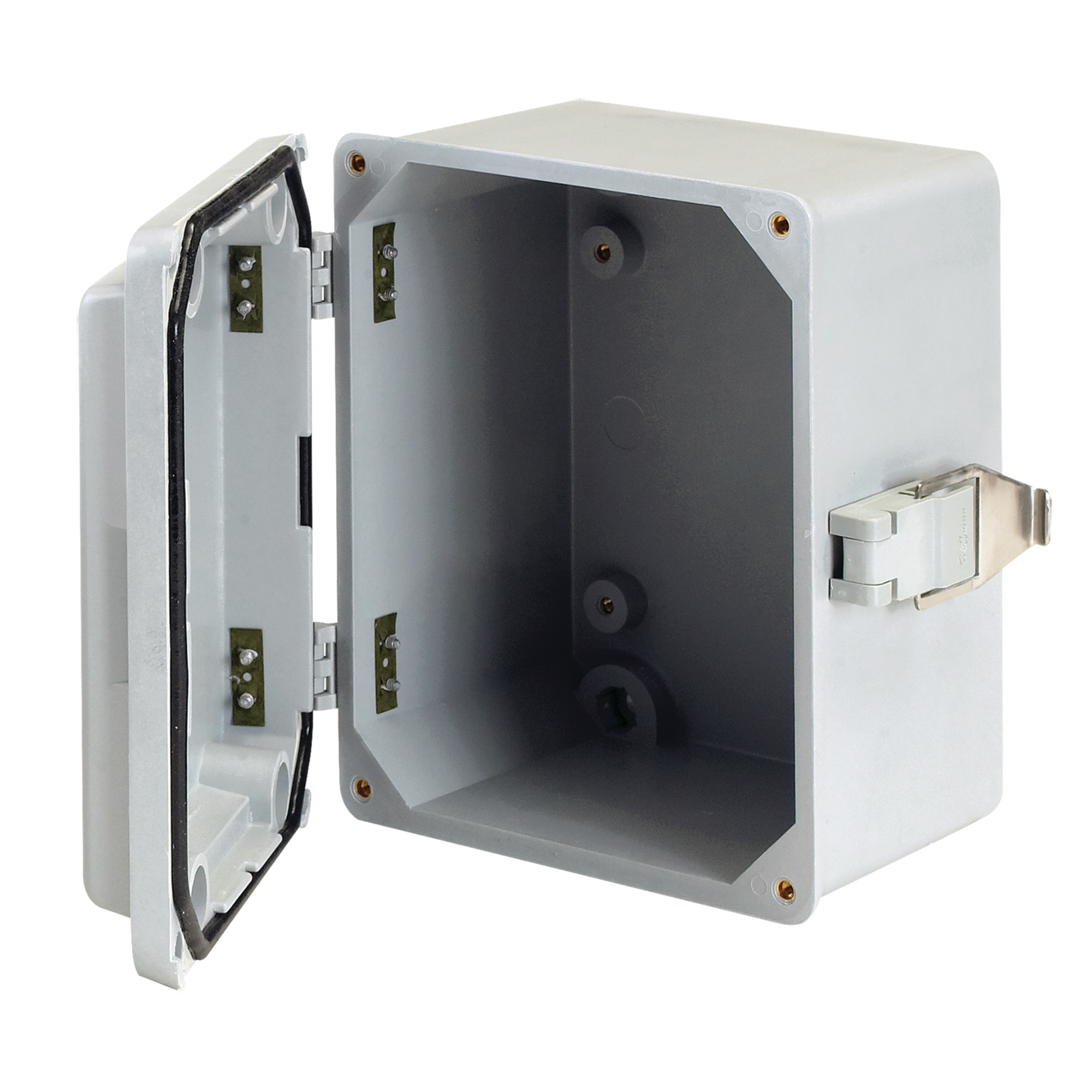

Hoffman A1287JFGQRR Screw Hinge Cover Quick-Release Latch Type 4X 11.50x8.00x6.80

Product Description

The HOFFMAN A1287JFGQRR is a screw hinge cover with a quick-release latch, designed as a Type 4X enclosure. Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design suitable for a broad range of applications.

• Compression-molded fiberglass material has excellent temperature and chemical resistance qualities.
• Seamless foam-in-place gasket assures water-tight and dust-tight seal.
• Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws.

Product Highlights

This fiberglass enclosure is ideal for use in corrosive environments and control and drive applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1287JFGQRR
• Country of Origin: US - United States

Technical Specifications

• Article Number: 41250
• Material: Fiberglass
• Finish: Matte
• Color Code: RAL 7035
• Thickness (T): 0.12in
• Cover Style: Solid
• Latch Type: Quick Release
• Latch Quantity: 2
• UPC: 783510412500
• Applications: Controls and Drives, Corrosive Environments
• Cover Type: Hinged, Foam Gasketed, Screw-On, Padlockable Hasp, Quick Release Latch
• IP Rating: 66
• Mounting Type: Wall
• Number of Latches: 2
• Standard: CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
• Type: Single Door, Single Lock, Two Latch, Watertight, Corrosion-Resistant
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Color: RAL 7035 Light Gray
• ECCN: EAR99
• UNSPSC: 39121324
• Lock: Quick Release Latch With Padlock Hasp
• NEMA Rating: NEMA 4X/IP66
• Application: For harsh environments
• Standard & Approvals: UL 508A, File No. E61997, cUL Listed per CSA C22.2 File No. 94, File No. E61997, RoHS Compliant
• Series: A50
• Catalog ID: HOFA1287JFGQRR
• Mounting: Bracket
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 3/3R/4/4X/12/13, IP66
