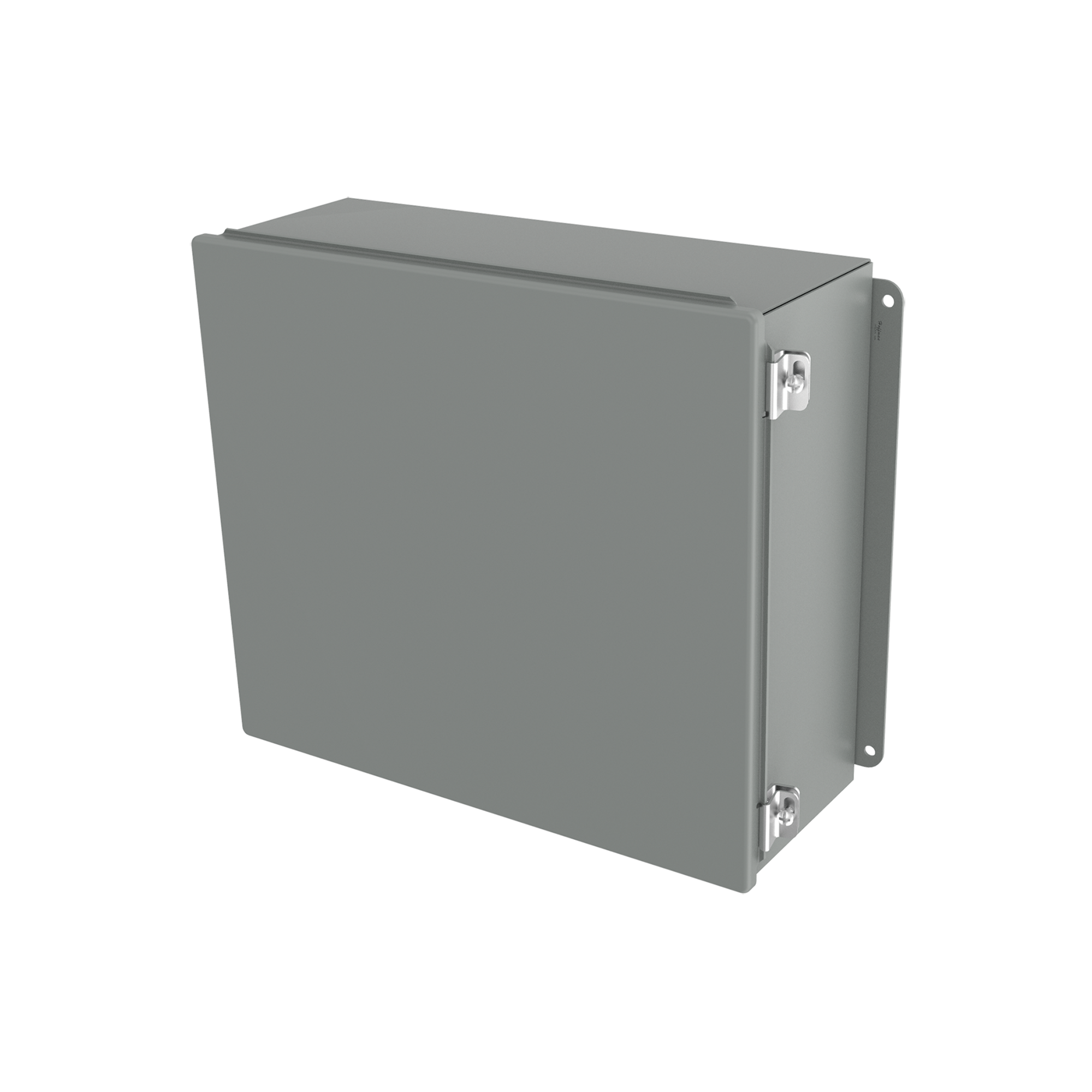

Hoffman A1210CHS Enclosure Box-Lid Steel 12.0 x 10.0 x 5.0 in.

Product Description

The HOFFMAN A1210CHS enclosure features a continuous hinge and screw-down clamps for secure closure, suitable for various applications. Constructed from 16 or 14 gauge steel with continuously welded and ground smooth seams. Includes external screw clamps, bonding provision on the door, and external wall-mounting brackets. Features an oil-resistant gasket and weldnuts for mounting optional panels and terminal block kits.

• Continuous hinge
• External screw clamps are quick and easy to operate
• Bonding provision on door

Product Highlights

Durable steel enclosure with hinged cover, screw clamps, and mounting options for diverse applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1210CHS
• Country of Origin: MX

Technical Specifications

• UNSPSC Code: 31260000
• Approximate Depth: 4 in
• Approximate Height: 12 in
• Approximate Width: 10 in
• Brand: nVent HOFFMAN
• Color: Gray
• Cover Locking: Latch
• Cover Mounting: Hinged
• IP Rating: IP65
• Manufacturer Part Number: A1210CHS
• Material: Steel
• Size: 12.00x10.00x5.00 in
• Type: Junction Box
• UPC Code: 78351055520
• Application: Controls and Drives
• Catalog Number: A1210CHS
• Color Code: ANSI 61
• Country of Origin: MX
• Depth: 5
• EU RoHS Indicator: NEW
• Finish: Powder Coated
• Harmonization Tariff Schedule Code: 8538100000
• Height: 5.3000 in
• Height [Metric]: 13.4620 cm
• Interchangeable: No
• Length: 10.5000 in
• Length [Metric]: 32.0040 cm
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• NEMA Rating: 12 Indoor
• Package Quantity: 1
• Panel Type: A12P10
• Standards: UL 50/50E, Type 12, 13, File No. E27567, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E27567, UL 508A, Type 12, 13, File No. E61997, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File
• Thickness: 1.9 mm
• UNSPSC: 39121303
• UPC 11: 78351055520
• UPC 12: 783510555207
• Width: 12.6000 in
• Width [Metric]: 26.6700 cm
• Color Coding: ANSI 61
• Cover Type: Hinge Cover
• Gauge: 14 AWG
• Mounting Type: Wall
• Standard: 13,50E Listed,CSA,CUL Listed Per CSA 22.2 No. 94,File,File No. E27567,File No. E61997,NEMA/EEMAC Type 12 And 13,Type 12,UL 50,UL 508A Listed
• Single Door: Single Door, Double Lock, Gangable
• Sub Brand: Hoffman
• Product UPC: 78351055520
• Weight (oz): 11.2 lb
• Depth (mm): 127 mm
• Height (mm): 305 mm
• Length (in): 12.6 Inch
• DISK UNSPSC: 39121303
