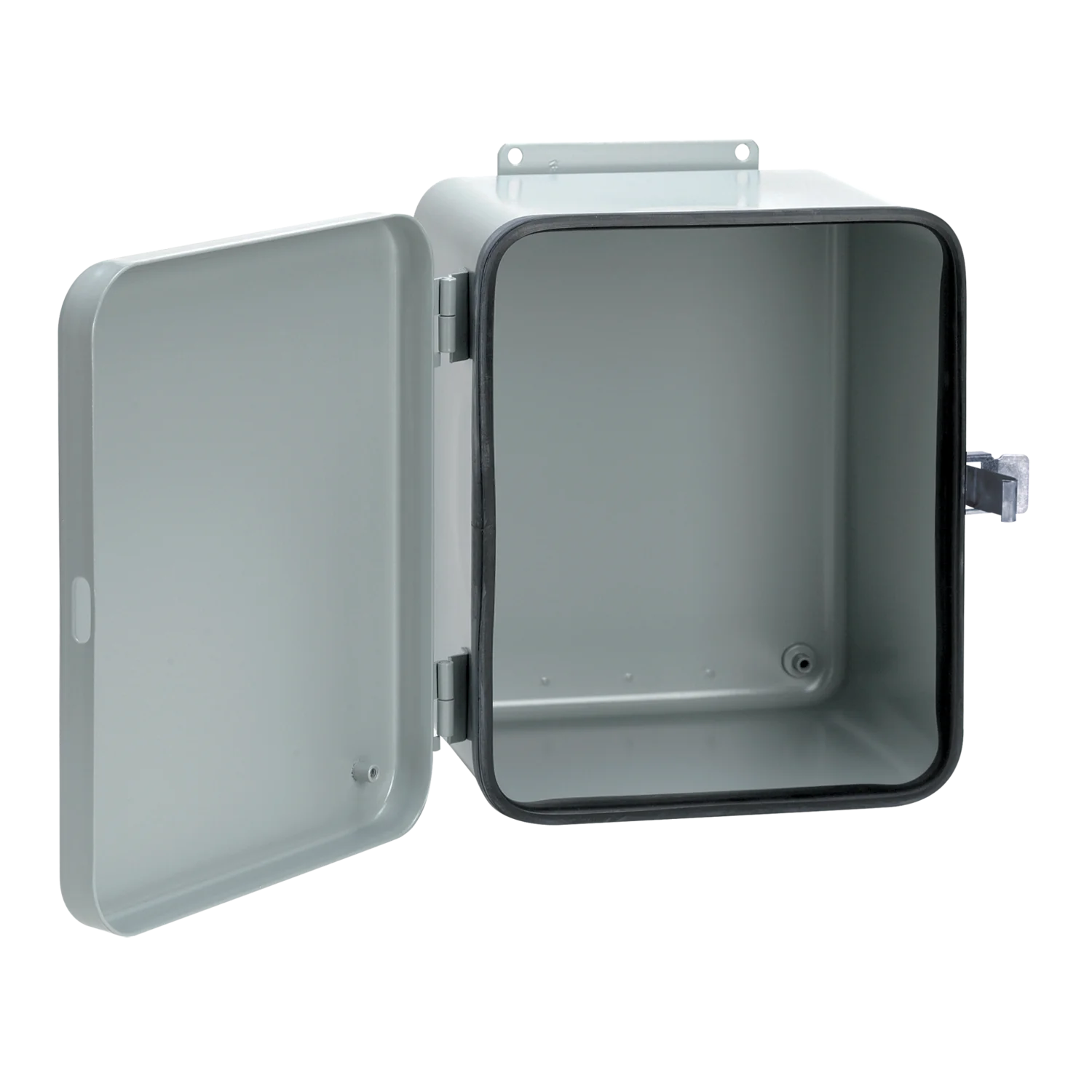

Hoffman A12106DL Removable Hinge Quick-Release Latch Contoured Type 12, 12x10x6

Product Description

The HOFFMAN A12106DL features a quick-release latch, mounting brackets, rounded corners and an attractive finish. This enclosure can be used in applications where panel or cover mounting of controls is desired. Ideal for protecting equipment from indoor contaminants. Drawn steel enclosure with no welded seams or sharp corners.

• Removable door with unique lift-off hinges
• Cover is removable and interchangeable
• Quick-release latches

Product Highlights

The HOFFMAN A12106DL is a NEMA Type 12 enclosure with a quick-release latch, mounting brackets and an attractive finish. It is ideal for protecting equipment from indoor contaminants.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A12106DL

Technical Specifications

• Article Number: 60470
• Height (H): 12in
• Width (W): 10in
• Depth (D): 6in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness (T): 16ga
• Mounting (G x H): 12.50 x 8.12in
• UPC: 783510604707
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• UNSPSC: 39121332
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 12/13, IP65
• Material Specification: 16 Gauge
• Cover Type: Lift-Off Hinged, Oil Resistant Gasketed, Quick Release Latch
• Color: ANSI 61 Gray
• Material Thickness: 1.52 mm
• Gauge: 16
