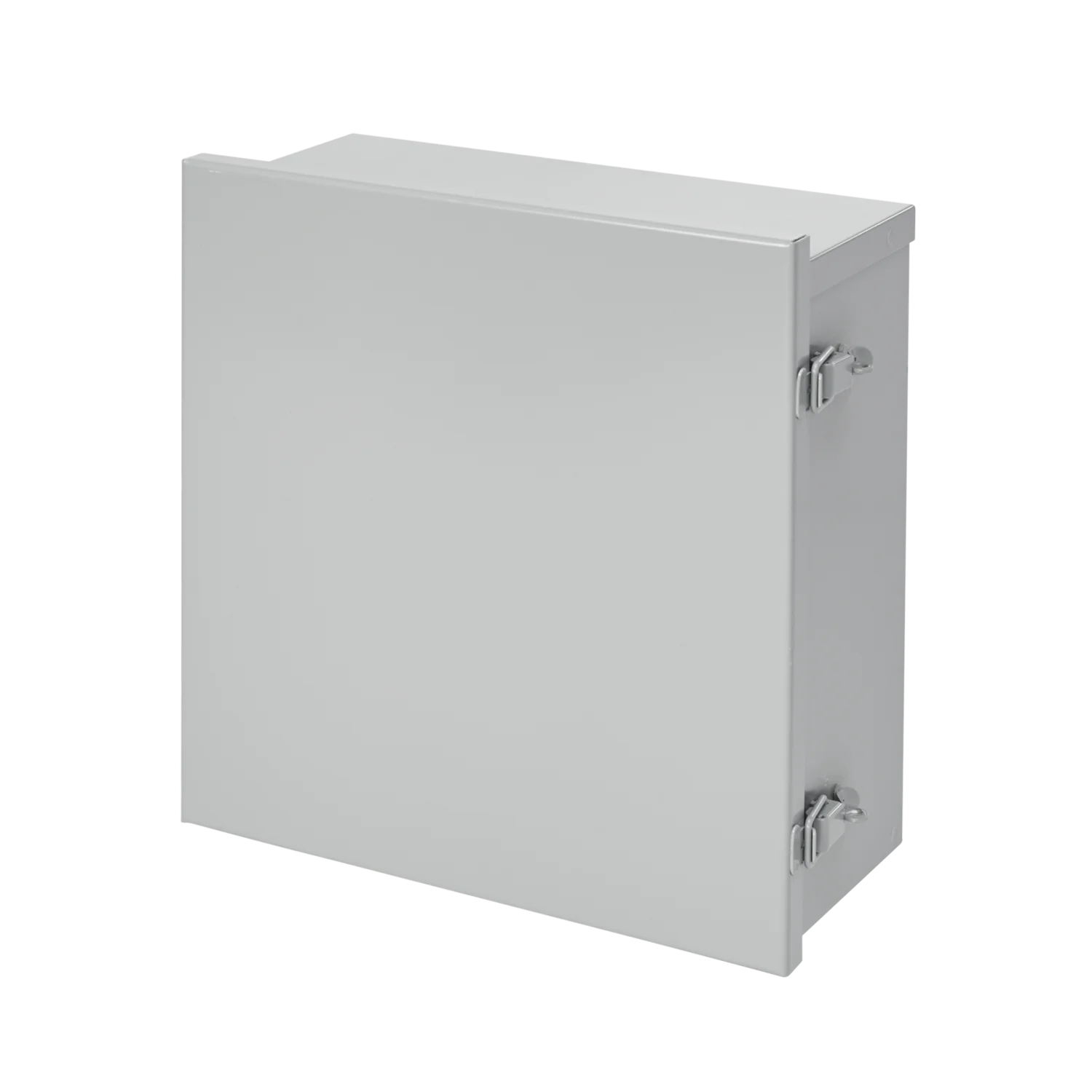

Hoffman A10R86HCLO Drip-Shield Hinged Lift-Off Cover Type 3R, 10.00x8.00x6.00

Product Description

The HOFFMAN A10R86HCLO Drip-Shield Hinged Lift-Off Cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor and other applications subject to rain, sleet, snow or dripping water. Constructed of mild steel with galvanized and powder-coated finish.

• Drip-shield top and seam-free sides, front and back
• Galvanized steel lift-off hinges with stainless steel pins
• Provisions for padlocking on each draw pull catch

Product Highlights

The A10R86HCLO enclosure is ideal for protecting components from rain, sleet, snow, or dripping water in outdoor environments. It features a hinged lift-off cover for easy access and padlock pull catch latches for security.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A10R86HCLO
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 38880
• Height: 10in
• Width: 8in
• Depth: 6in
• Material: Steel
• Finish: Galvanized; Powder Coated
• Color: ANSI 61 Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Material Specification: 16 Gauge
• UPC: 783510388805
• Bulletin Number: A3LO
• UNSPSC: 39121332
• Approval: UL 50/50E, CUL, CSA C22.2
• Nema Rating: NEMA 3R, IP32
• Cover Type: Lift-Off Hinged with Pin, Padlockable Draw Pull Catch
• GTIN: 0783510388805
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A10R86HCLO
• ECCN: EAR99
• Color Family: Gray
• Type: Junction Box
• Model: QUICK RELEASE ENCLOSURE
• Approximate Depth: 6 in
• Approximate Height: 10 in
• Approximate Width: 8 in
