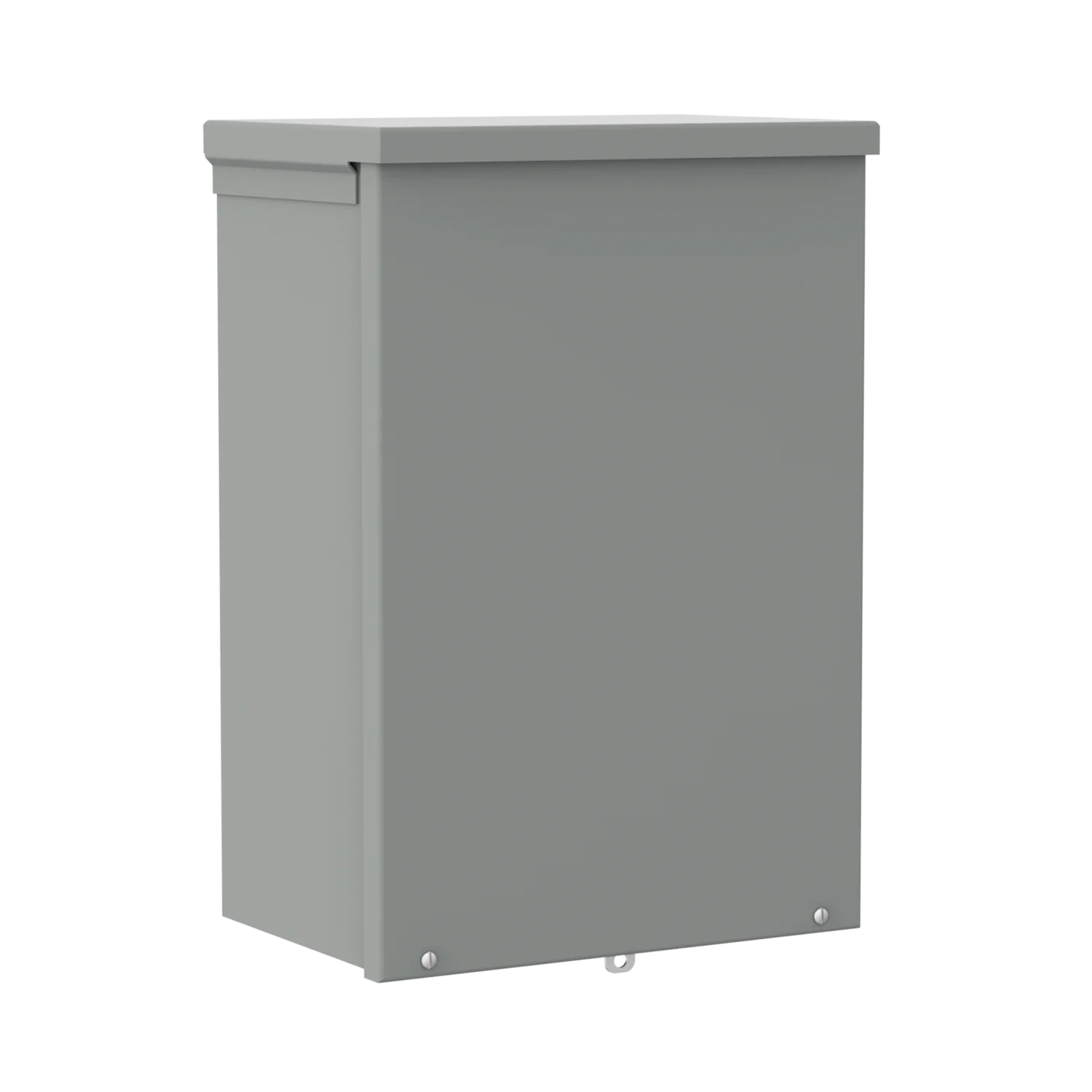

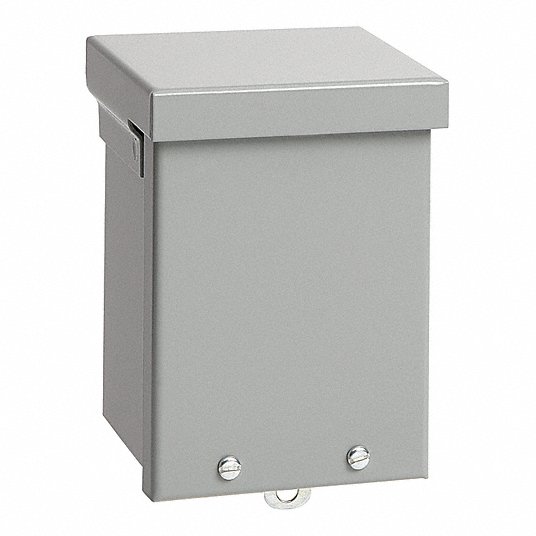

Hoffman A10R86 Screw-Cover Drip-Shield Type 3R With Knockouts, 10x8x6

Product Description

The HOFFMAN A10R86 drip-shield screw-cover, Type 3R, is used as a wiring or junction box to protect controls in outdoor applications requiring protection from rain, sleet, snow, or dripping water. Steel is durable, corrosion-resistant, and withstands moisture and damage.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

This galvanized steel 10 x 8 x 6 inch raintight junction box is NEMA 3R rated and features a screw cover.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A10R86
• Country of Origin: Mexico

Technical Specifications

• Article Number: 38110
• Height: 10in
• Width: 8in
• Depth: 6in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: F-G-H-I
• Mounting: 1.06in
• Body Style: A
• UPC: 783510381103
• Bulletin Number: A90S3
• Manufacturer Part Number: A10R86
• Closure Method: Screws
• Cover Closure Type: Screw On
• Cover Style: Solid
• Enclosure Material: Steel
• Environment: Weather Resistant
• IP Rating: IP32
• Includes: Screws
• Mounting Type: Wall
• NEMA Enclosure Rating: 3R
• Nominal Depth: 6 in
• Nominal Height: 10 in
• Nominal Width: 8 in
• Overall Depth: 6 in
• Overall Height: 10 in
• Overall Width: 8 in
• Product Type: Screw Cover Enclosure
• Standards: cUL Listed Per CSA C22.2 No 94; File No E27525; IEC 60529; NEMA/EEMAC Type 3R; Type 3R; UL50, 50E Listed
• UNSPSC: 39121301
• Design: Cover Included
• Thickness: 0.118" (3.00mm)
• Container Type: Junction Box
• Features: Knockouts, Wall Mount
• Ratings: IP32, NEMA 3R, UL-50, 50E
• Cover Mounting: Screw Cover
• UNSPSC Code: 31260000
• Approximate Depth: 6 in
• Approximate Height: 10 in
• Approximate Width: 8 in
• Type: Junction Box
