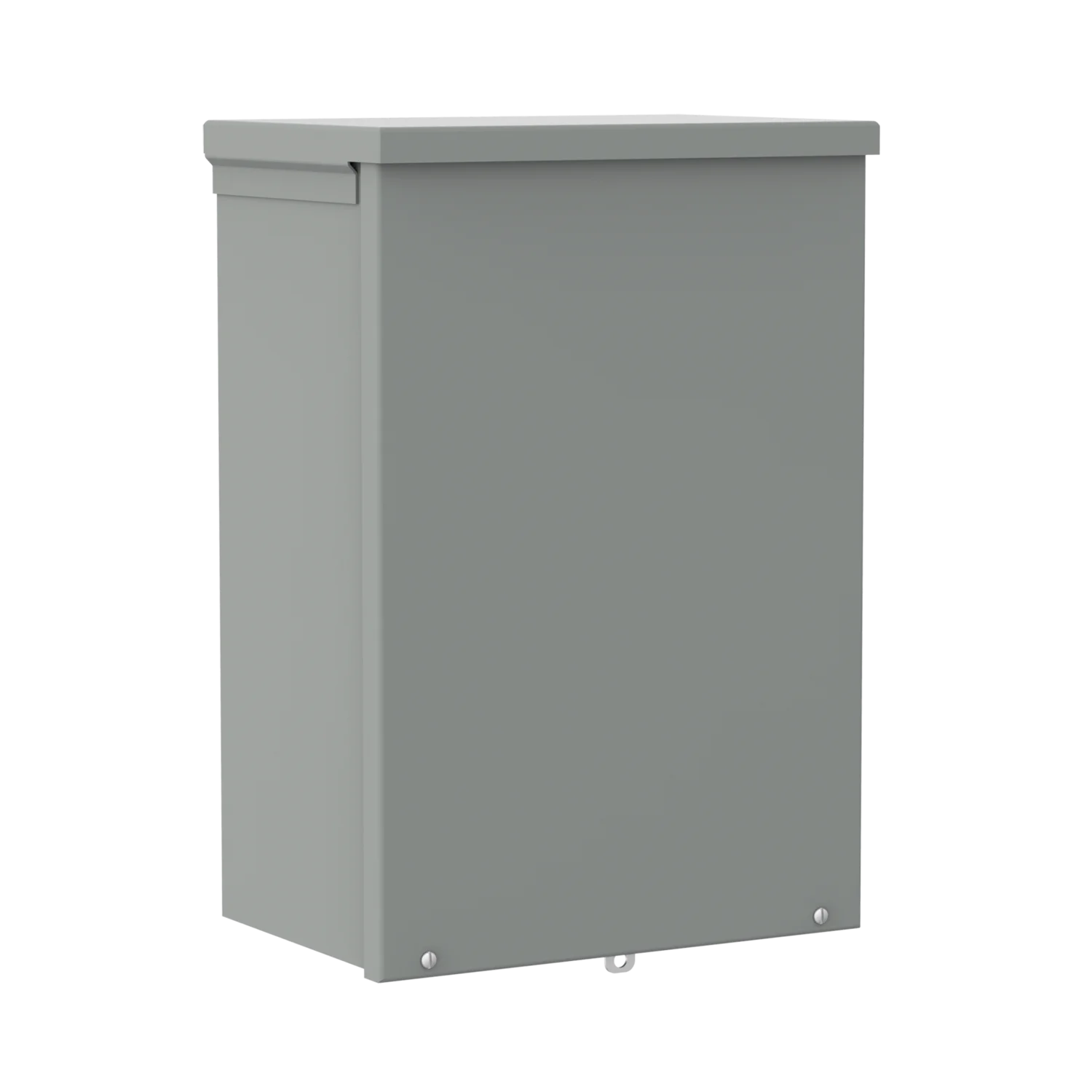

Hoffman A10R84 Screw-Cover Drip-Shield Type 3R With Knockouts 10x8x4

Product Description

The Hoffman A10R84 Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water. Features a slip-on removable cover fastened with plated steel screws along bottom edge.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

This enclosure is ideal for protecting electrical components in harsh environments. It is made of steel with a gray powder-coated finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A10R84
• Country of Origin: Mexico

Technical Specifications

• Article Number: 38050
• Height: 10in
• Width: 8in
• Depth: 4in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: F-G-H-I
• Mounting: 1.06in
• Body Style: A
• UPC: 783510380502
• Bulletin Number: A90S3
• Cable Entry: Knockout
• Cover Type: Screw
• Enclosure: 3R
• Gauge: 16
• IP Rating: 32
• Size: 10.00x8.00x4.00 in
• Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
• Type: Pull and Junction Boxes
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510380502
• Product UPC: 78351038050
• NEMA Rating: 3R
• Cover Mounting: Screw Cover
