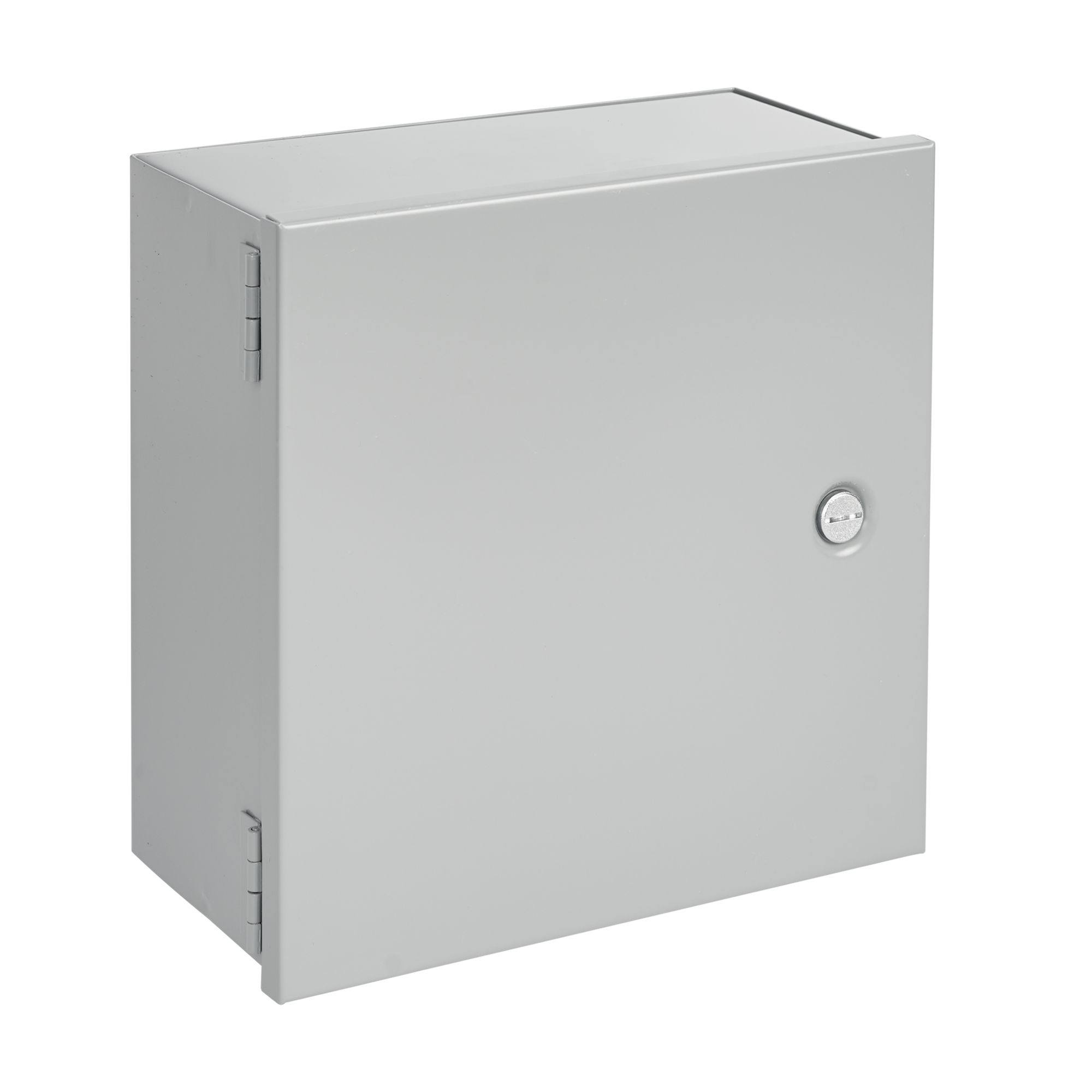

Hoffman A10N106 Small Hinge-Cover Enclosure 10.00x10.00x6.00

Product Description

The HOFFMAN A10N106 small hinged-cover enclosure, Type 1, ranges in size from 6 x 6 inches to 14 x 12 inches. It meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures. Mounting is provided for an optional panel.

• Butt hinges on door
• Flush slotted latch operated with a screwdriver; optional latches available
• Weldnuts provided for mounting optional panels

Product Highlights

The A10N106 enclosure features butt hinges, a flush slotted latch, and weldnuts for mounting optional panels. It includes mounting holes on the back for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A10N106
• Country of Origin: MX

Technical Specifications

• Height: 10 in
• Width: 10.0000 in
• Depth: 6 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16 ga
• UPC: 783510343903
• Bulletin Number: A1SM
• Type: Wall-Mounted / Pad-Mounted Enclosures
• Enclosure Rating: NEMA 1
• Mount: Hinged
• IP Rating: IP30
• Application: Controls and Drives; Power Distribution
• Brand: nVent HOFFMAN
• Catalog Number: A10N106
• Height [Metric]: 15.2400 cm
• Length: 10.2500 in
• Length [Metric]: 26.0350 cm
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• NEMA Rating: 1 Indoor, electrical protection
• Panel Size: 8.25 x 8.25 in
• Panel Size [Metric]: 210 x 210 mm
• Panel Type: A10N10P
• Perforated Panel: A10N10PP
• Size: 10.00x10.00x6.00 in
• Thickness [Metric]: 1.52 mm
• UNSPSC: 39121324
• Width [Metric]: 26.0350 cm
• Mounting: Surface
• Special Program: Hoffman On Demand
