Hoffman A1086DL Removable Hinge Quick-Release Latch Contoured Type 12, 10x8x6

Product Description

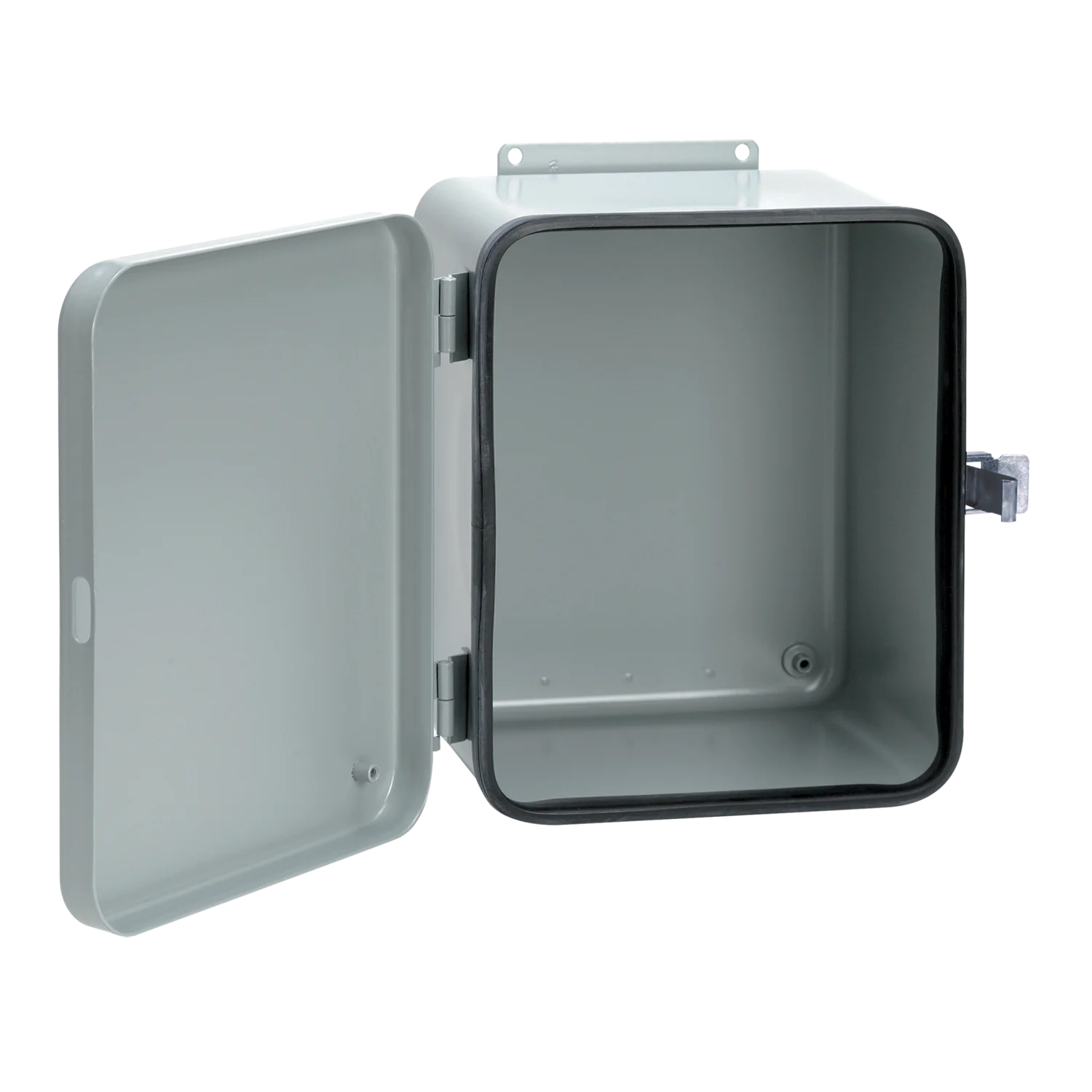

The HOFFMAN A1086DL enclosure features a quick-release latch, mounting brackets, and rounded corners. This enclosure is designed for applications where panel or cover mounting of controls is desired and protects equipment from indoor contaminants. It features a removable door with lift-off hinges and an oil-resistant gasket.

• Drawn enclosure with no welded seams or sharp corners
• Removable door with unique lift-off hinges
• External wall-mounting brackets for easy installation

Product Highlights

This Hoffman junction box is ideal for protecting equipment from indoor contaminants. It features a quick-release latch, mounting brackets, and rounded corners.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1086DL

Technical Specifications

• Article Number: 60040
• Height: 10in
• Width: 8in
• Depth: 6in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Mounting (G x H): 10.50 x 4.12in
• Overall Dimensions (L x W): 11.00 x 9.12in
• Weight: 6.8lb
• UPC: 783510600402
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Brand: Hoffman
• MPN: A1086DL
• Application: For protecting equipment from indoor contaminants
• Mounting Type: Wall
• Type: Contoured
• Series: A51
• Cover Type: Hinged/Removable
• Panel Size: 8.75 x 6.88
