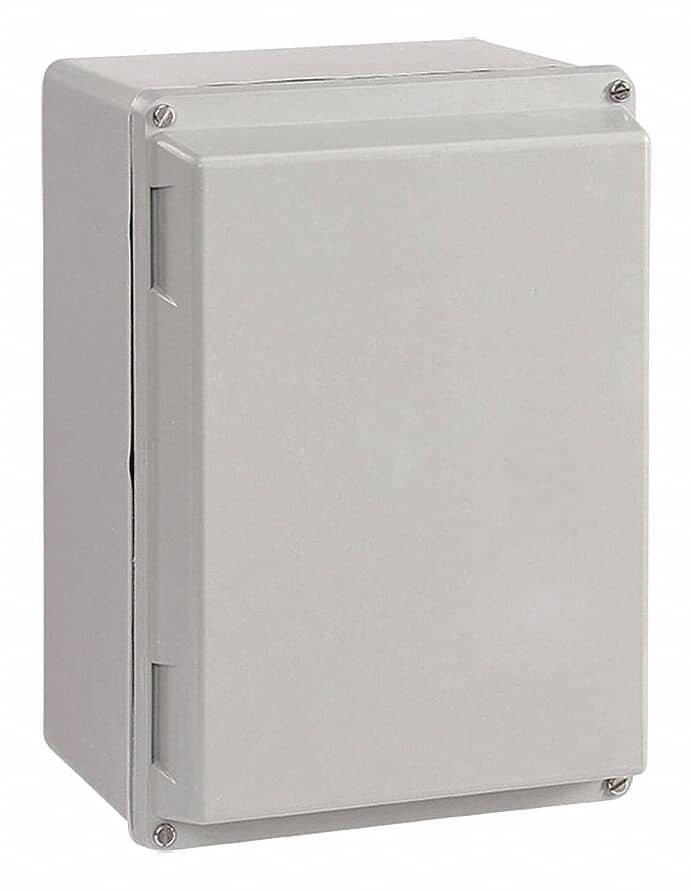

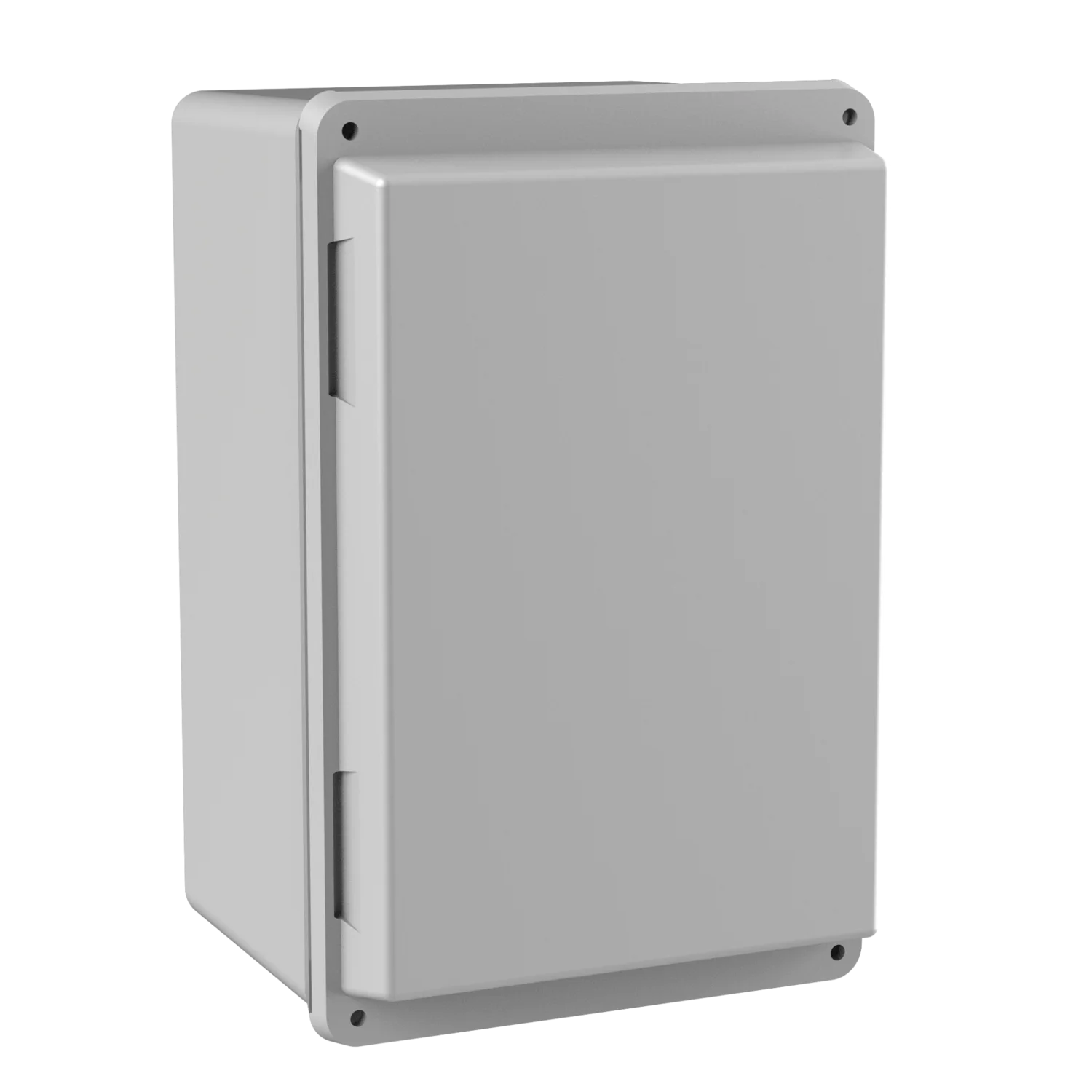

Hoffman A1066JFGR Enclosure NEMA Rating 12, 13, 3, 3R, 4, (9.50x6.00x5.69)

Product Description

The HOFFMAN A1066JFGR enclosure is NEMA rated 12, 13, 3, 3R and 4. These small enclosures withstand harsh environments and feature a simple, traditional non-metallic design suitable for a broad range of applications. Enclosure flammability is evaluated per UL 508A.

• Compression-molded fiberglass material has excellent temperature and chemical resistance qualities.
• Fiberglass material is easily punched, drilled, filed or sawed
• Seamless foam-in-place gasket assures water-tight and dust-tight seal

Product Highlights

The HOFFMAN A1066JFGR enclosure is ideal for controls and drives in corrosive environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1066JFGR

Technical Specifications

• Manufacturer: Hoffman
• Manufacturer #: A1066JFGR
• Brand: nVent HOFFMAN
• Enclosure Mounting: Panel Mount
• Material: Fiberglass/Plastic
• Type: Single Door, Single Lock, Watertight, Corrosion-Resistant
• Finish: Matte
• Color Code: RAL 7035
• Cover Style: Solid Cover
• Latch Type: Screws
• Applications: Controls and Drives, Corrosive Environments
• IP Rating: 66
• Standard: CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
• Sub Brand: Hoffman
• Box Shape: Rectangular
• Model: A1066JFGR
• Suitable For: Interior, Wall, Exterior
• Mounting Style: Screw, Panel
