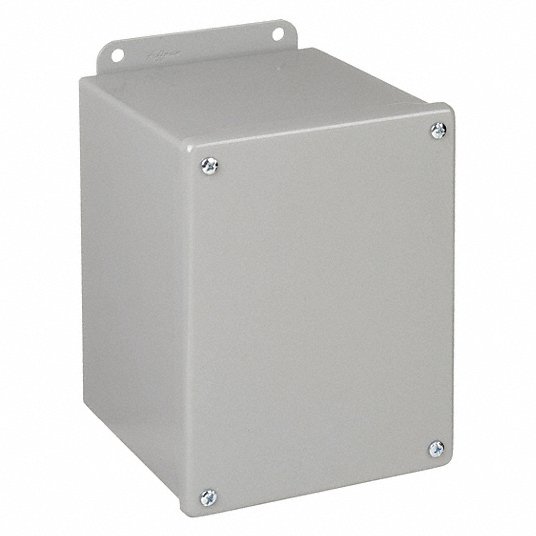

Hoffman A1010SC Screw Cover Enclosure Type 12, 10.00x10.00x4.00

Product Description

The HOFFMAN A1010SC screw cover enclosure is ideal for a broad range of applications. The screw cover is secured in each corner for a positive seal but is easily removed for modifications. Steel dust-tight enclosures are more durable and corrosion-resistant when compared to aluminum enclosures. These enclosures provide a ground and do not warp or distend.

• Seams continuously welded and ground smooth
• Bonding provision on cover
• Oil-resistant gasket

Product Highlights

This steel dust-tight enclosure features a screw cover, continuously welded seams, and external wall-mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1010SC
• Country of Origin: Mexico

Technical Specifications

• Article Number: 54240
• Height: 10 in
• Width: 10 in
• Depth: 4 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 1.9 mm
• Mounting: 10.75 x 8.00in
• Overall Dimensions: 11.50 x 10.28in
• UPC: 783510542405
• EAN: 8713574268319
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A51SC
• Manufacturer Part Number: A1010SC
• Closure Method: Screws
• Compatible Panel Model Number: A10P10; A10P10G
• Cover Closure Type: Screw On
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Dust Tight
• Gasket Material: Neoprene
• IP Rating: IP65
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 12; 13
• Nominal Depth: 4 in
• Nominal Height: 10 in
• Nominal Width: 10 in
• Overall Depth: 4 in
• Overall Height: 10 in
• Overall Width: 10 in
• Panel Height: 8.75 in
• Panel Width: 8.88 in
• Product Type: Screw Cover Enclosure
• Standards: UL 50/50E, Type 12, 13, File No. E27525, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E27525, UL 508A, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, RoHS Complaint
• UNSPSC: 39121301
• IP/NEMA Rating: IP65, NEMA 12
• Special Program: Hoffman On Demand
• Cover Type: Screw
• Gauge: 14 AWG
• Size: 10.00x10.004.00 in
• Type: Gangable, Single Door, Four Lock
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510542405
• GTiN: 00783510542405
• Product UPC: 78351054240
• Length: 11-1/2 Inch
• Application: Controls and Drives
• Catalog Number: A1010SC
• Country of Origin: MX
• NEMA Rating: 12 Indoor, dust-resistant
• Mild Steel Industrial Terminal and Junction Boxes: Type
• Category: Boxes
• Packaging: Bulk
• Mfr: Hoffman Enclosures, Inc.
• Part Status: Active
