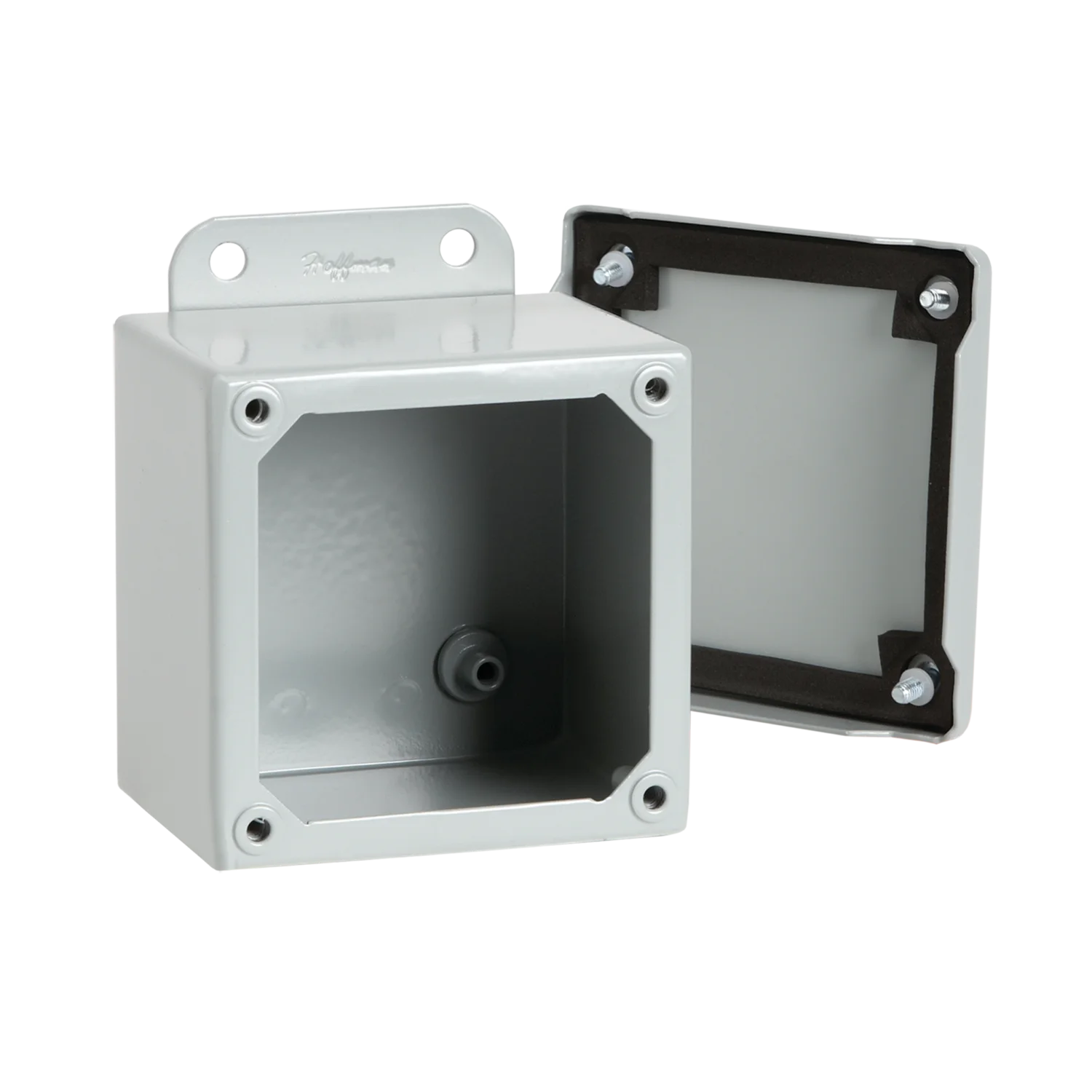

Hoffman A10106SC Screw Cover Jic Box 10.00x10.00x6.00

Product Description

The HOFFMAN A10106SC screw cover JIC box is ideal for a broad range of applications. The enclosure's screw cover is secured in each corner for a positive seal but is easily removed for modifications. It features continuously welded and ground smooth seams and a bonding provision on the cover. External wall-mounting brackets allow for easy installation.

• Seams continuously welded and ground smooth
• Bonding provision on cover
• Oil-resistant gasket

Product Highlights

The A10106SC screw cover JIC box features continuously welded seams, a bonding provision on the cover, and external wall-mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A10106SC
• Country of Origin: United States

Technical Specifications

• Article Number: 54250
• Height: 10 in
• Width: 10 in
• Depth: 6 in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Cover Type: Screw Cover
• Gauge: 14 AWG
• Mounting Type: Wall
• Size: 10.00x10.00x6.00 in
• Standard: 13,50E Listed,CSA,CUL Listed Per CSA C22.2 No. 94,F,File No. E27525,File No. E61997,NEMA/EEMAC: Type 12 And 13,Type 12,UL 50,UL 508A Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• IP/NEMA Rating: IP65, NEMA 12
• Model: A10106SC
• Country of Origin: United States
