Hoffman A1008LP Lift-Off Clamp Cover Enclosure 10.00x8.00x4.00

Product Description

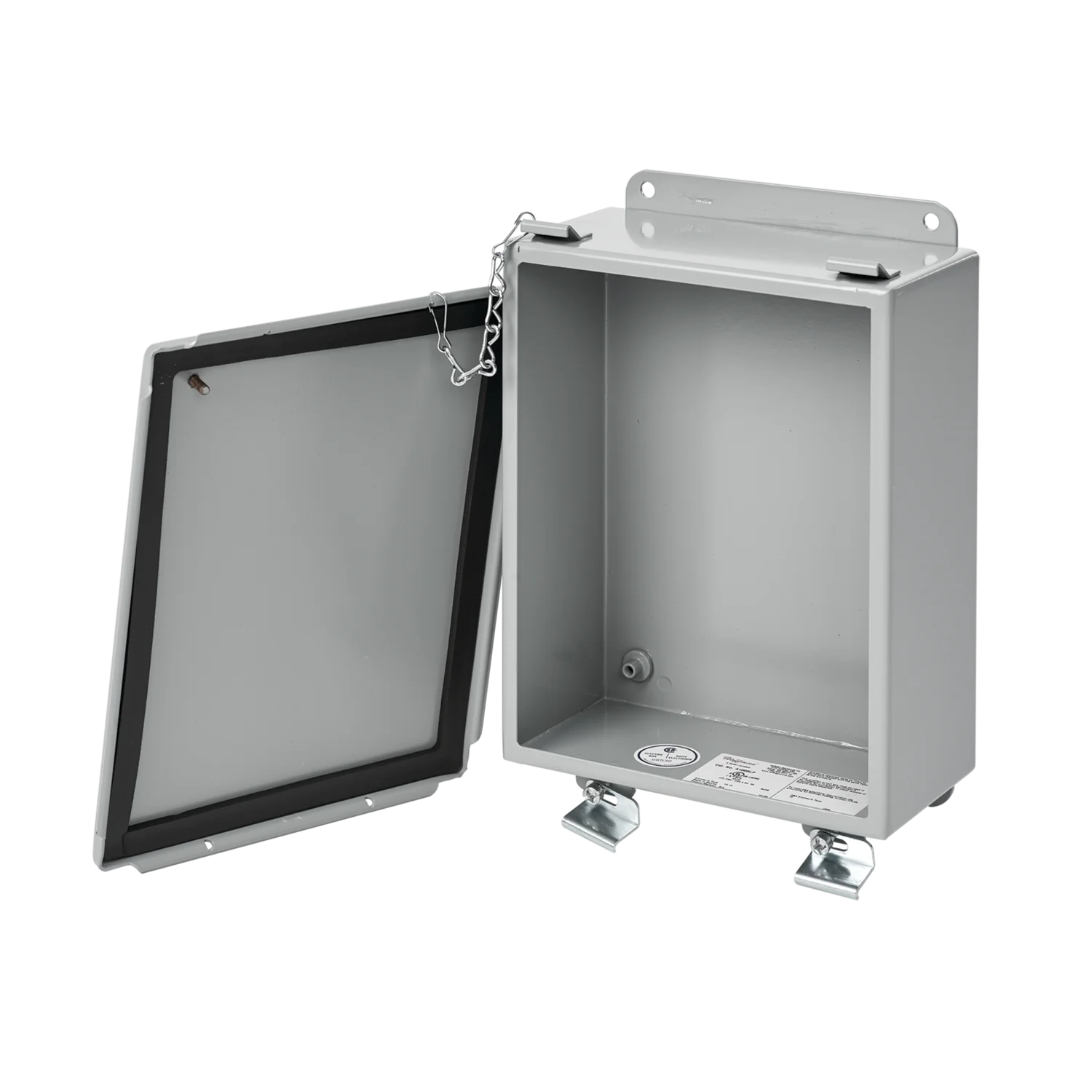

The HOFFMAN A1008LP lift-off clamp cover enclosure meets basic functionality requirements for housing controls and instrumentation. Seams are continuously welded and ground smooth. It features screw-down clamps and a lift-off cover. Bonding provision on cover and a chain holds cover to box when cover is removed. Oil-resistant gasket.

• Seams continuously welded and ground smooth
• Screw-down clamps
• Lift-off cover

Product Highlights

The HOFFMAN A1008LP is ideal for housing controls and instrumentation. It features a lift-off cover, screw-down clamps and oil-resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1008LP
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 54070
• Height: 10 in
• Width: 8 in
• Depth: 4 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 1.9 mm
• Mounting: 10.75 x 6.00in
• Overall Dimensions: 11.50 x 8.57in
• UPC: 783510540708
• Bulletin Number: A51LP
• Category: Boxes, Enclosures, Racks
• Boxes: Boxes
• Features: Sealing Gasket, Wall Mount
• Container Type: Junction Box
• Ratings: IP65, NEMA 12, 13, UL-508A
• Size / Dimension: 10.000" L x 7.992" W (254.00mm x 203.00mm)
• Area (L x W): 80.0in
• Base Product Number: A1008
• Design: Cover Included
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• HTSUS: 7310.29.0065
• REACH Status: REACH Unaffected
• UNSPSC Code: 31260000
• Approximate Depth: 4 in
• Approximate Height: 10 in
• Approximate Width: 8 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A1008LP
• Cover Type: Lift-Off
• Mounting Type: Wall
• Size: 10.00x8.00x4.00 in
• Type: Gangable, Single Door, Four Lock
• Sub Brand: Hoffman
• MDM Pkg GTiN: 00783510540708
• Product UPC: 78351054070
• Length: 11 Inch
• UNSPSC: 39121324
• Approval: UL 50/50E, CUL, CSA C22.2
• Material Specification: 14 Gauge
