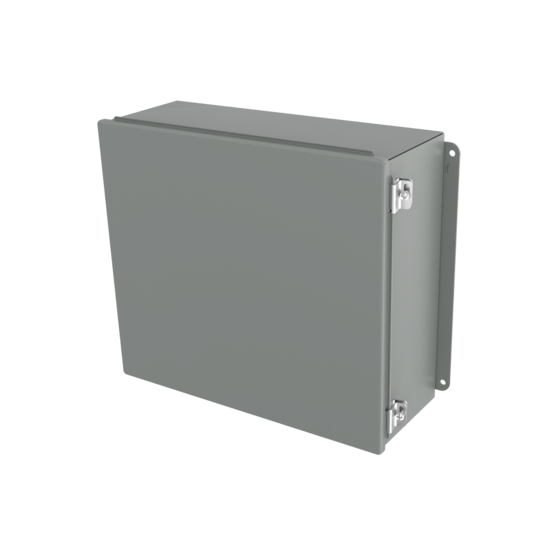

Hoffman A1008CHS Continuous Hinge with Clamps CH, Type 12, 10 inches x 8 inches x 4 inches

Product Description

The Hoffman A1008CHS continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. Constructed of steel with continuously welded and ground smooth seams. Designed for use as an electrical junction box, instrument, and terminal wiring box in environments with dirt, dust, oil, and water.

• Seams continuously welded and ground smooth
• Continuous hinge
• Screw-down door clamps

Product Highlights

The Hoffman A1008CHS is ideal for protecting electrical components in harsh environments. Features include external wall-mounting brackets for easy installation and an oil-resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1008CHS
• Country of Origin: MX - Mexico

Technical Specifications

• Color Coding: ANSI 61
• Cover Type: Continuous Hinge, Screw Clamp Cover
• Material: Steel
• Size: 10.00x8.00x4.00 in
• Type: 12
• Brand: Hoffman
• Sub Brand: Hoffman
• Color: ANSI 61 Gray
• Finish: Powder Coated
• Depth: 4 Inch
• Height: 10 Inch
• Length: 10.6 Inch
• Thickness: 1.9 mm
• Width: 8 in
• IP/NEMA Rating: IP65, 12
• Installation Type: Screw-In
• Specification Met: Nema
• Gauge: 14 ga
• Description: Continuous Hinge With Clamps
• Manufacturers Part Number: A1008CHS
• Panel: A10P8
• Compliance & Certifications: UL Listed 50, 50E
• ECCN: EAR99
• UNSPSC: 39121303
• NEMA Rating: 12
• Cover Mounting: Hinged Cover
• MPN: A1008CHS
• Country of Origin: United States
