Hoffman A1008CHQR Junction Box Stl 10 inchesL X 7.99 inchesW

Product Description

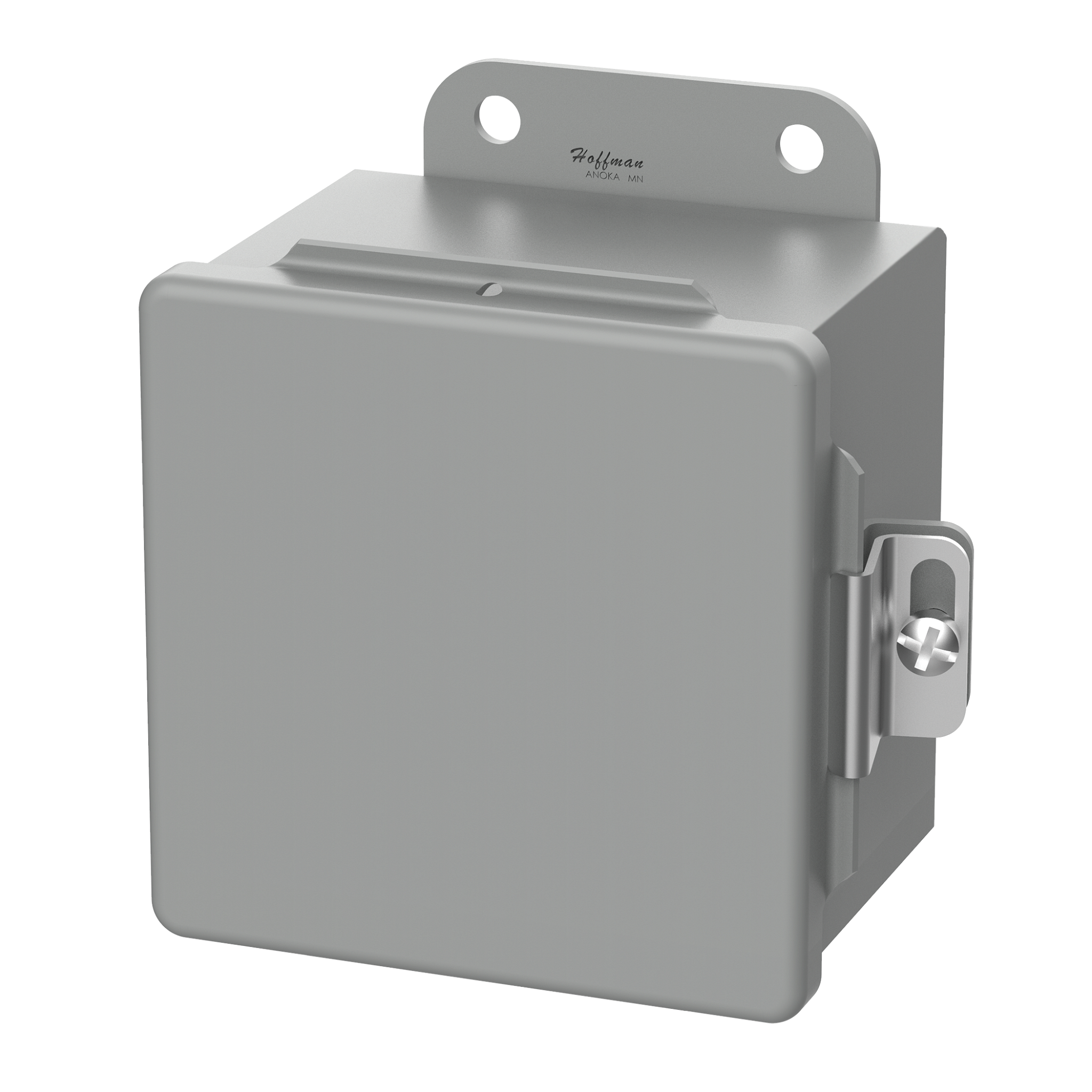

The HOFFMAN A1008CHQR junction box is made of steel with a gray hinged door and lid. It measures 10.000" L x 7.992" W (254.00mm x 203.00mm) X 4.016" (102.00mm). This enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.

• Sealing Gasket
• Hinged Door
• Lid

Product Highlights

The junction box features seams continuously welded and ground smooth, a continuous hinge, and screw-down door clamps.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1008CHQR
• Country of Origin: MX

Technical Specifications

• Category: Boxes
• Material: Metal, Steel
• Mfr: Hoffman Enclosures, Inc.
• Color: Gray
• Packaging: Bulk
• Thickness: 1.9 mm
• Part Status: Active
• Features: Sealing Gasket
• Container Type: Junction Box
• Ratings: IP65, NEMA 12, 13, UL-50, 50E
• Size / Dimension: 10.000" L x 7.992" W (254.00mm x 203.00mm)
• Height: 4.016" (102.00mm)
• Area (L x W): 80.0in (516cm )
• Base Product Number: A1008
• Design: Hinged Door, Lid
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Finish: Powder Coated
• Product UPC: 78351055410
• Weight: 7.7 lb
• Depth: 102 mm
• Cover Type: Continuous Hinged with Clamp
• Gauge: 14 and 16
• Mounting Type: Wall
• Size: 10.00x8.00x4.00 in
• Type: Two Lock, Single Door
• Application: Industrial
• Brand Name: Hoffman
• Country of Origin: MX
• Enclosure: NEMA 12/13, IP65
• NEMA_Rating: NEMA 12/IP65
• Series: A51CH
• Special Features: Bonding provision on door, External welded on mounting brackets for easy installation, Oil-resistant gasket, Screw-down door clamps, Seams continuously welded and ground smooth, Weldnuts provided for mounting optional panels and terminal block kits in size 6 x 4 in (152 x 102 mm) and larger
• Standard: UL 50, 50E Listed, Type 12, 13, File No. E27567, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E27567, UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File
