Hoffman A1008CHNF NM4 Piano Hng Jicbo Power 10x8x4 NEMA Types 4 & 12

Product Description

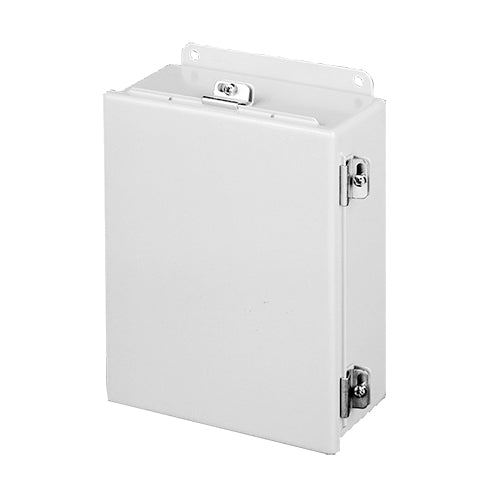

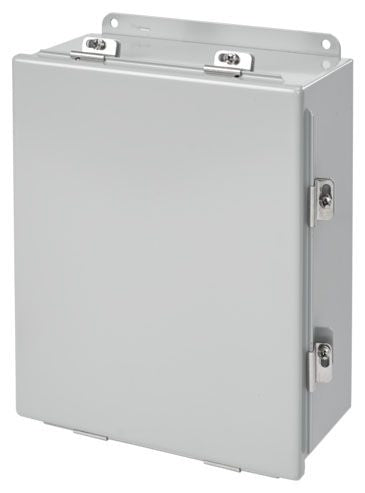

The Hoffman A1008CHNF is a wall mount enclosure designed for versatile applications. This enclosure measures ten inches in height, eight inches in width, and four inches in depth. It is made from mild steel and coated with a polyester powder finish for added durability.

• Enclosure Type: One Door, NEMA 4/12
• Mounts either indoors or outdoors
• Includes continuous hinged door for easy access

Product Highlights

This enclosure is suitable for housing electrical controls and drives. It adheres to UL 50, UL 508A, and CSA C22.2 standards, ensuring a robust design ideal for various environments.

Product Information

Standard Information

• Material: Mild Steel
• Color: ANSI 61 Gray

Technical Specifications

• Dimensions: 10 inches height x 8 inches width x 4 inches depth
• Weight: 8.3 pounds
• Protection Rating: IP66
• Mounting Method: Wall mount
• Approval: UL 50/50E/508A, CUL, CSA C22.2
• RoHS Compliant: Yes
• Panel Type: A10P8
