Hoffman A10086CH Piano HNG JIC BX Power 10.00x8.00x6.00 in

Product Description

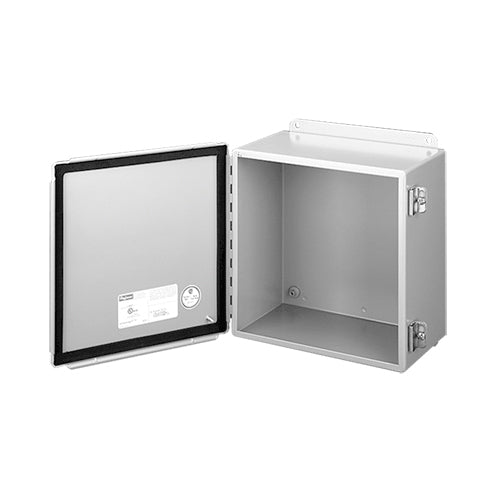

The Hoffman A10086CH Piano HNG JIC BX is a mild steel enclosure designed for industrial applications. It measures ten inches by eight inches by six inches and provides solid protection for controls and drives. This enclosure is ideal for junction box installations in various environments.

• Constructed from mild steel
• Rated IP65 for dust and water resistance
• NEMA Type 12 suitable for indoor use

Product Highlights

The A10086CH enclosure features a continuous hinge for easy access and a powder-coated finish for enhanced durability. Its design helps protect internal components from dust and moisture.

Product Information

Standard Information

• Manufacturer: Hoffman
• Material: Mild Steel

Technical Specifications

• Dimensions: 10.00 x 8.00 x 6.00 in
• Color: Gray
• Weight: 42 lbs
• Protection Rating: NEMA Type 12
• IP Rating: IP65
• NSPS Code: 39121303
• Panel Size: 8.75 x 6.88 in
• Overall Dimensions: 11.50 x 8.94 in
