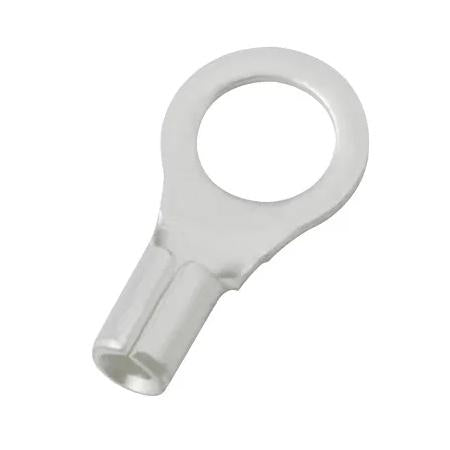

Hoffman 5125W 1210S6 Copper Ring Terminal 12 - 10 AWG 1/4 Stud 1000/Pack

Product Description

The Hoffman 1210S6 Copper Ring Terminal, MPN 5125W, is designed for reliable electrical connections. This non-insulated terminal is made for wire sizes ranging from twelve to ten AWG, ensuring a secure fit. It has a stud size of a quarter inch, suitable for various applications. The barrel style features a brazed seam that enhances durability. This product is packaged with one thousand units per pack, making it ideal for bulk buying.

• Material: Copper with a tin plated finish
• Amperage Rating: 50 A
• Temperature Rating: 176 °C Ambient

Product Highlights

Hoffman ring terminals provide a strong connection for electrical systems. They cater to professional needs in various electrical settings.

Product Information

Standard Information

• Type: Non-Insulated
• Standards: UL Listed, RoHS Compliant

Technical Specifications

• Length: 0.882 Inch
• Stud Size: 0.25 Inch
• Barrel Diameter: 0.134 Inch ID x 0.22 Inch OD
• Barrel Length: 0.268 Inch
• Amperage Rating: 50 A
• Operating Temperature: 176 °C
• Item Name: Ring Terminal
