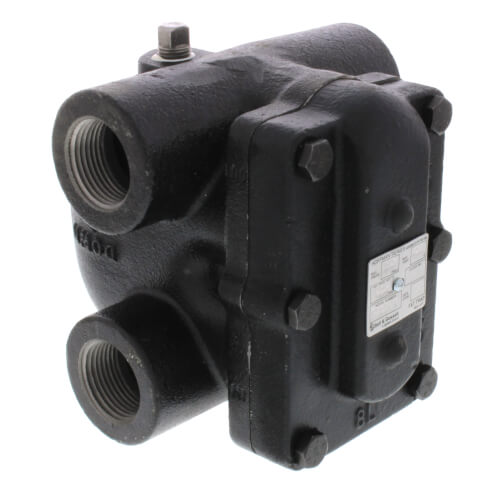

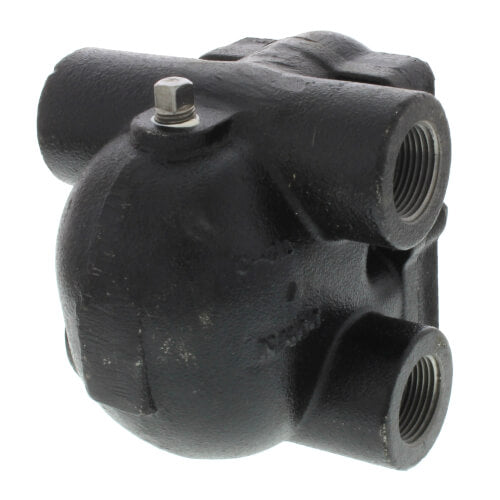

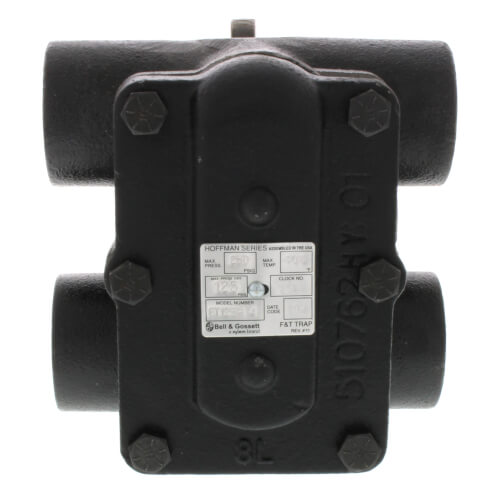

Hoffman 404216 FT125H-4 1 Inch Steam Trap Series H Cast Iron

Product Description

The Hoffman model 404216 FT125H-4 is a robust 1 inch float & thermostatic steam trap, crafted from durable cast iron, ideal for efficient condensate removal in heating systems. Featuring a max operating temperature of 406 degrees Fahrenheit and a pressure rating of 175 PSI, this steam trap is built to ensure consistent, reliable performance.

• Three-year warranty ensures reliability and service support
• Threaded connection type for easy installation in various setups
• Capable of handling up to 406 degrees Fahrenheit with a seat differential rating of 125 PSI

Product Highlights

Optimal for heating applications, the Hoffman 404216 is designed to effectively manage condensate levels, enhancing system efficiency and reducing maintenance downtime.

Technical Specifications

• Brand: Hoffman
• MPN: 404216
• Material: Cast Iron
• Max Temperature: 406 degrees Fahrenheit
• Max Pressure: 175 PSI
• Connection Type: Threaded
• Weight: 12.8 pounds
• Dimensions: Length: 7.6 inches, Width: 6.45 inches, Height: 6.4 inches
