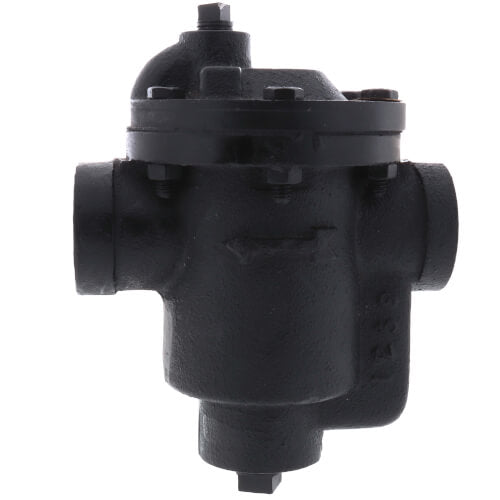

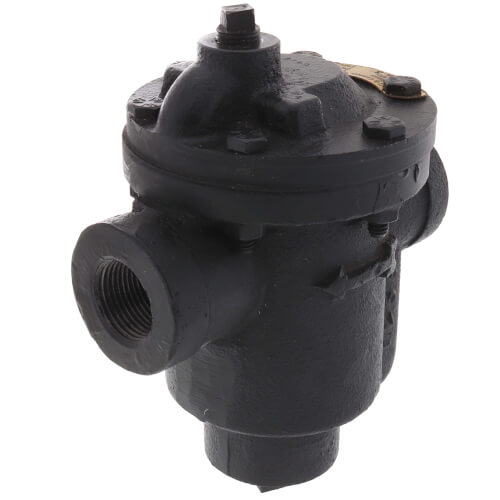

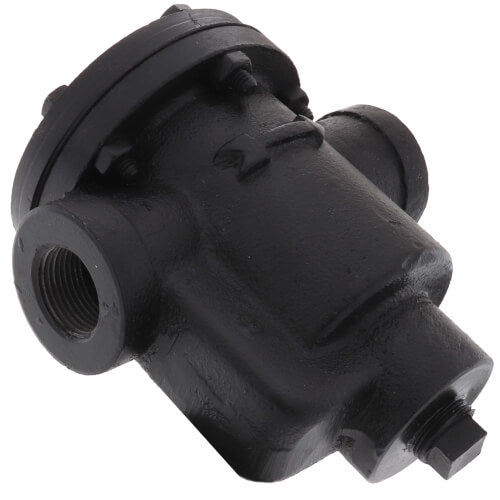

HOFFMAN 404188 B0020A-3 Inverted Bucket Steam Trap 3/4 Inch Without Strainer

Product Description

The Hoffman 404188 is a high-efficiency inverted bucket steam trap specifically designed for heating systems. Renowned for reliability, this steam trap operates without a strainer, optimizing heating performance in a variety of settings.

• Robust cast iron construction ensures durability under challenging conditions.
• Threaded 3/4 inch connections allow for easy installation and maintenance.
• Designed to handle up to 450 degrees Fahrenheit and pressure up to 150 PSI.

Product Highlights

Hoffman's 404188 model excels in sustainability, offering minimal steam loss and efficient condensate discharge, critical for lowering operational costs in heating systems.

Product Information

Standard Information

• Brand: Hoffman
• Product Type: Inverted Bucket Steam Trap

Technical Specifications

• Material: Cast Iron
• Connection Type: Threaded
• Size: 3/4 inch
• Max Temperature: 450 degrees Fahrenheit
• Min Pressure: 150 PSI
• Seat Differential Rating: 20 PSI
• Shipping Dimensions: 7.7x6.55x5.4 inches
